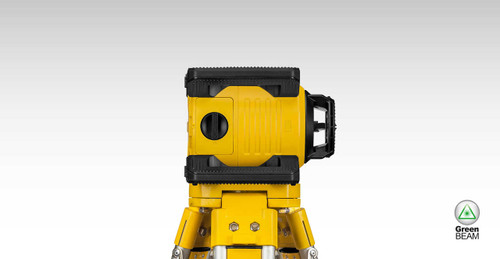

The Stabila LAR 160 G with green laser beams is the right rotation laser. Quick to set up and easy to operate, the laser really comes into its own when used over large distances and linked to a receiver. All in all, it is a high-quality product that delivers precise results.
Features
- Fully automatic, motor-driven rotation laser – high levelling accuracy of ± 0.1 mm/m, fast self-levelling function within 20 seconds.
- Stabila GreenBeam technology for improved visibility of the rotating laser beam – green laser beams are four times more visible to the human eye than red beams.
- Four laser functions for versatile use – horizontal and vertical rotation, plumb-line function and right angle (90°) in vertical operation.
- Protection class IP 65 – dustproof and waterproof.
- Shock-absorbent Stabila soft grip casing provides protection against impacts – the stable housing cover also protects the laser optics.
- Easy to use via three control buttons – on/off, tilt mode, manual mode.
- Battery drawer – easy replacement, even directly on the tripod.
- Large working area with REC 160 R/G set receiver – up to 600m in diameter.
- Two 5/8" threads integrated in the housing.
- Target plate with magnetic holder and cross-hair.
- Stable carrying case.
- Weatherproof – waterproof and dustproof in accordance with protection class IP 65.
Includes
- Target card
- Receiver with clamp
- Target plate
- Manual & kit box
Applications
- Drywall
- Layout work
- partition walls and suspended ceilings
- Electrical installation work
- Industrial construction
- Industrial assembly applications
Specifications
- Laser class: 2
- Output: < 1 mw
- Laser wavelength: 510 - 530 nm
- Self-levelling range +/-5°
- Levelling accuracy +/-0.10 mm/m
- Diameter of working area for set receiver: 600 m
- Operating life: 20 h
- Battery type: D
- Protection class: IP 65
- Tripod connection: 5/8in
