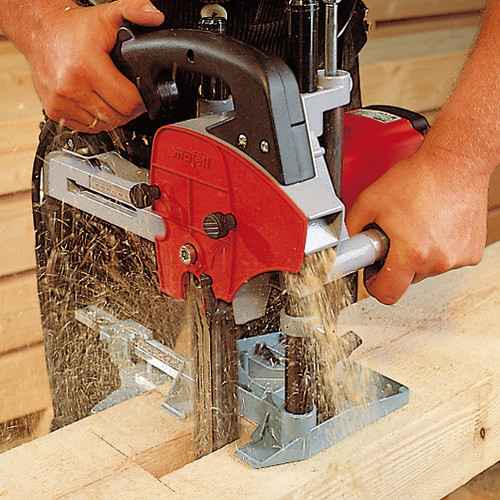

The Mafell LS 103Ec is a truly impressive chain Mortiser, featuring a powerful 240V motor, chain bars which do not require lubrication, and long-lasting chains. This Mortiser is available with 1.5in and 2.0in chain/bar setups to rapidly produce timber frame mortises with the sturdy FG 150 mortising stand. The tensioning system of the LS 103Ec allows for fast chain replacement. Even retightening the chain is quick and easy without having to remove the chain guard.
Features
- Fastest chain mortising because no clamping is needed
- Choice of 1.5in or 2.0in chain and 240V motor
- Plunges up to 5-7/8in deep
- Mafell invented the chain mortiser in 1926 and is still decades ahead of the competition in power and durability
Specifications
- Mortising depth: 5-7/8in
- Mortising width: 1-1/16in by 1.5in or 2.0in
- Nominal speed - no load: 4,050 rpm
- Motor: 240 V / 60 Hz
- Current: 20 A
- Weight with stand: 29.7 lbs.
Includes
- Stop Plate 200954
- Allen key 4 mm 093074
- Allen key 8 mm 093070
- 32.8 ft Cord
