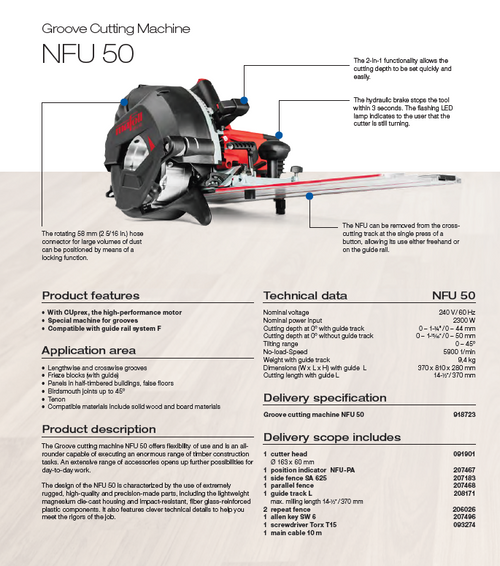

The Groove cutting machine NFU 50 offers flexibility of use and is an all-rounder capable of executing an enormous range of timber construction tasks. An extensive range of accessories opens up further possibilities for day-to-day work.
The design of the NFU 50 is characterized by the use of extremely rugged, high-quality, and precision-made parts, including the lightweight magnesium die-cast housing and impact-resistant, fiber glass-reinforced plastic components. It also features clever technical details to help you meet the rigors of the job.
Product Features
- The rotating 58 mm (2 5/16 in.) hose connector for large volumes of dust can be positioned by means of a locking function.
- The 2-in-1 functionality allows the cutting depth to be set quickly and easily.
- The hydraulic brake stops the tool within 3 seconds. The flashing LED lamp indicates to the user that the cutter is still turning.
- The NFU can be removed from the cross-cutting track at the single press of a button, allowing its use either freehand or on the guide rail.
- With CUprex, the high-performance motor
- Special machine for grooves
- Compatible with guide rail system F
Application Area
- Lengthwise and crosswise grooves
- Frieze blocks with grooves
- Panels in half-timbered buildings, false floors
- Blind/slotted joints up to 45°
- Tenon
- Compatible materials include solid wood and board materials
Technical Data - NFU 50
- Nominal voltage: 240V / 60 Hz
- Nominal power input: 2200W
- Cutting depth at 0° with guide track: 0 - 1 3/4" / 0 - 44 mm
- Cutting depth at 0° without guide track: 0 - 1 15/16" / 0 - 50 mm
- Tilting range: 0 - 45°
- No-load speed: 5900 min-1
- Weight with guide track: 9.84 kg
- Dimensions (W x L x H) with guide L: 370 x 810 x 280 mm
Delivery Scope Includes:
- 1 Cutter head - 091901
- 1 Position indicator NFU-PA - 207467
- 1 Side fence SA 625 - 207188
- 1 Parallel fence - 201783
- 1 Guide rail L - 201746
- 2 Max. milling length 14 ½" / 370 mm - 206026
- 2 Repeat fence - 207496
- 1 Allen key SW 6 - 207496
- 1 Screwdriver Torx T15 - 093274
- 1 Main cable 10 m
