Mafell MAF-917638 MT55CC Plunge Cut MidiMax Saw

$1,055.00
$865.10
SAVE: $189.90
Brand:
SKU:
MAF-917638
Availability: In Stock Online Availability: Out of Stock Availability: Special Order - Email info@atlas-machinery.com for pricing
MAF-205357,MAF-204375,MAF-092584,MAF-206921,MAF-092533,MAF-204376,MAF-204365,MAF-205357,MAF-204770,MAF-204365,MAF-204381

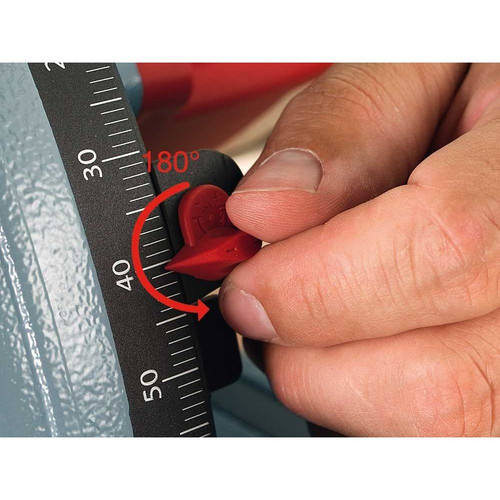

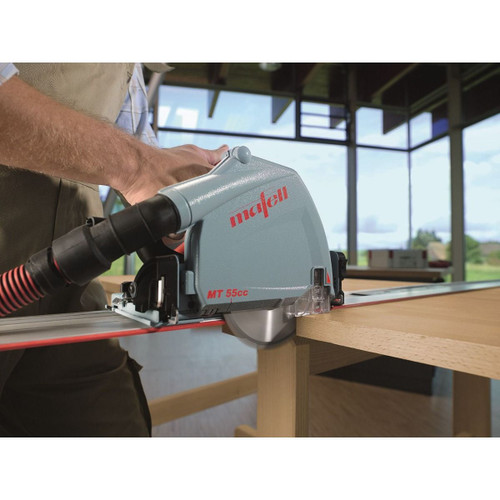

Circular sawing reaches its apex with the MT55CC Plunge/Track saw.  As a plunge cut saw, the saw blade is contained in the body of the saw.  This makes it safer and easier to use on a track system. With or without an extraction vacuum, it also creates a cleaner workspace because the dust is contained in the guard. Cutting depth adjustments can be made precisely using the pointer on the scale. The angle adjusts from 0 to 45°, but can be overridden to +48 or -1 when a little more is needed in either direction.  A scoring system to 2.5mm depth is available for cutting laminates splinter-free.

Features

  • The ultimate track saw for cutting expensive materials up to 2in thick with no margin for error
  • Powerful 13.5 amp CUprex Compact motor

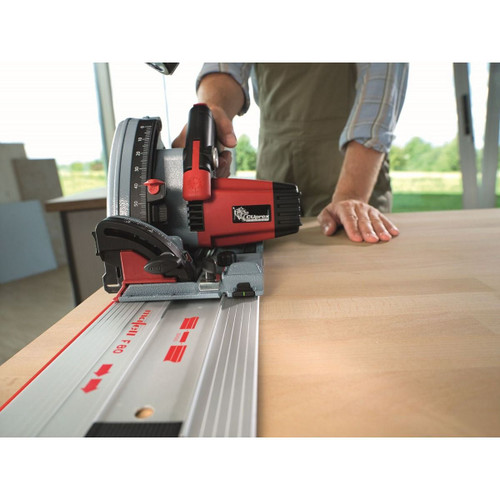

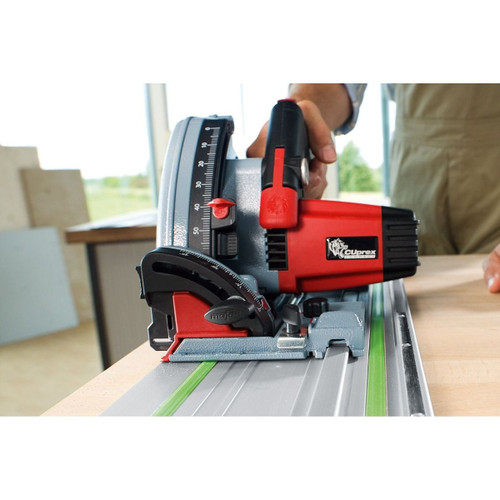

  • Compatible with Mafell Guide Rail System and other guide rail systems as well

Includes

  • Plunge-cut saw MT 55 cc in MAFELL-MAX917612
  • TCT sawblade 162 x 1.2/1.8 x 20 mm (6 3/8 in.), 48 alternating teeth 092584
  • T-MAX Systainer

Specifications

  • Cutting depth at 0° on track: 0 to 2in
  • Cutting depth at 45° on track: 0 to 1-3/8in
  • Cutting depth at 0° off track: 0 to 2-3/16in
  • Cutting depth at 45° off track: 0 to 1-9/16in
  • Tilt range: -1 to 48°
  • Saw blade diameter: 6-1/4in to 6-3/8in
  • Nominal speed - no load: 3,600 to 6,250 rpm
  • Motor: 120 V / 60 Hz
  • Current: 13.5 A
  • Weight: 10 lbs.
