From time to time, even proven solutions need to be reexamined in the interest of progress. That's exactly what Mafell did in this case. With input from carpenters and engineers, they set out to build a jigsaw that operated much more precisely than was previously conceivable. The outcome is the innovative P1CC.
Its intelligent accessories give the P1CC unprecedented versatility. The innovative design of the new Mafell precision saw blade CUNEX W1, in particular, facilitates extremely precise sawing. With an assortment of no fewer than 11 different sawblades, the P1CC is suitable for cutting wood laminates, plastic, metal, timber containing metal, gypsum, melamine resin panels and fiber-center board. The P1CC offers four oscillating stroke settings and one zero setting. It can be perfectly adjusted, therefore, to suit nearly any material and blade, and the splinter guard eliminates chipping on both top and bottom surfaces.
Precision is also a question of power. That's why the P1CC is equipped with a CUprex compact motor that delivers 900 Watts of power and consistently high speeds thanks to the intelligent digital electronics.

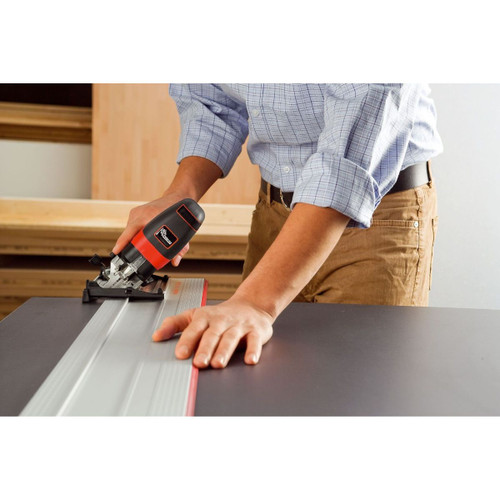

The P1CC compatibility with the Mafell Guide Rail System makes for even greater precision. In the interest of a standard sole plate capable of ensuring absolutely square cuts, a separate tilting plate was developed for making angled cuts up to +/- 45°. Many other features are described in the P1CC Brochure.
Specifications
- Cutting depth with W3 blade off track: 4-7/16in
- Cutting depth with W3 blade on track: 4-1/4in
- Cutting depth with W1 blade off track: 2-1/2in
- Cutting depth with W+P2 blade on track: 2-1/4in
- Tilt range with Tilting Base P1-SP: -45 to 45°
- Stroke length: 1in
- Nominal speed - no load: 800 to 3,000 rpm
- Motor: 120 V / 60 Hz
- Current: 7 A
- Weight: 5.4 lbs.
Includes
- Jig saw P1 cc in MaxiMAX 917103
- 3 jig saw blades CUnex W1; W2; W+P2
- Base plate P1-GP 204350
- Hose connector P1-AS 203917
- Chip deflector P1-SA 204353
- Splinter guard P1-SS 205447
- Glider P1-G 205464
- Parallel fence P1-PA 205448
- Mains cable 4 m 087609
- T-MAX Systainer
