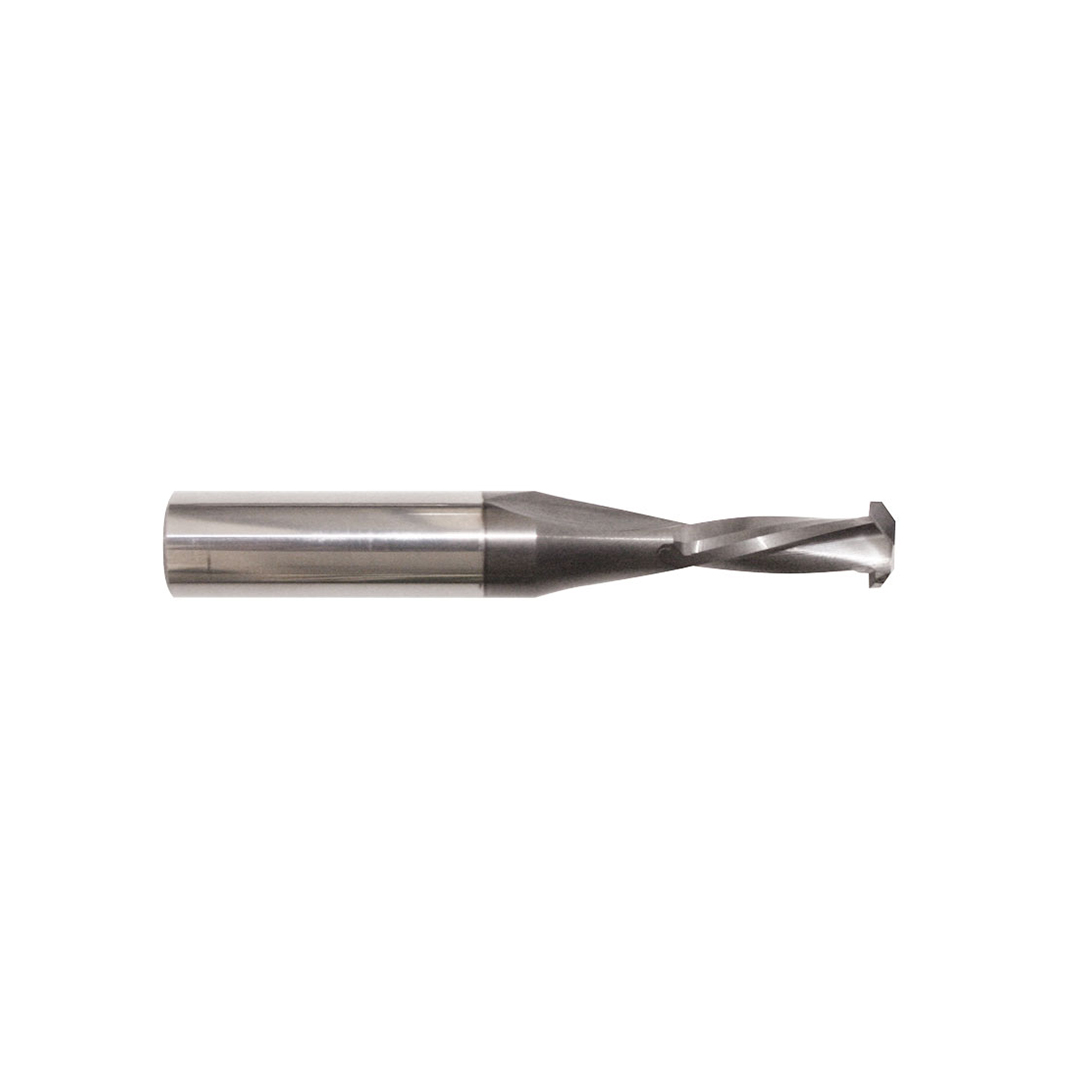

P-System CNC shaft tool cutter, solid carbide, shaft ø 12 x 40, L=80 mm
The P-System connecting fittings can be installed either with the Zeta P2 power tool or using a CNC machine.
The use on a CNC machine requires the diamond-tipped P-System cutter with tool opening 30mm. To cut P-System grooves in the work piece edge using an angle aggregate, a cutter arbor is used the dimensions of which vary according to the unit and machine type.
The 6 mm carbide drill is used for angles of up to 30° without deflecting when it hits the work piece surface. This is necessary for miter joints and other angled connections since the tool openings are at the same angle as the cut, thus presenting a risk of drill slippage.
