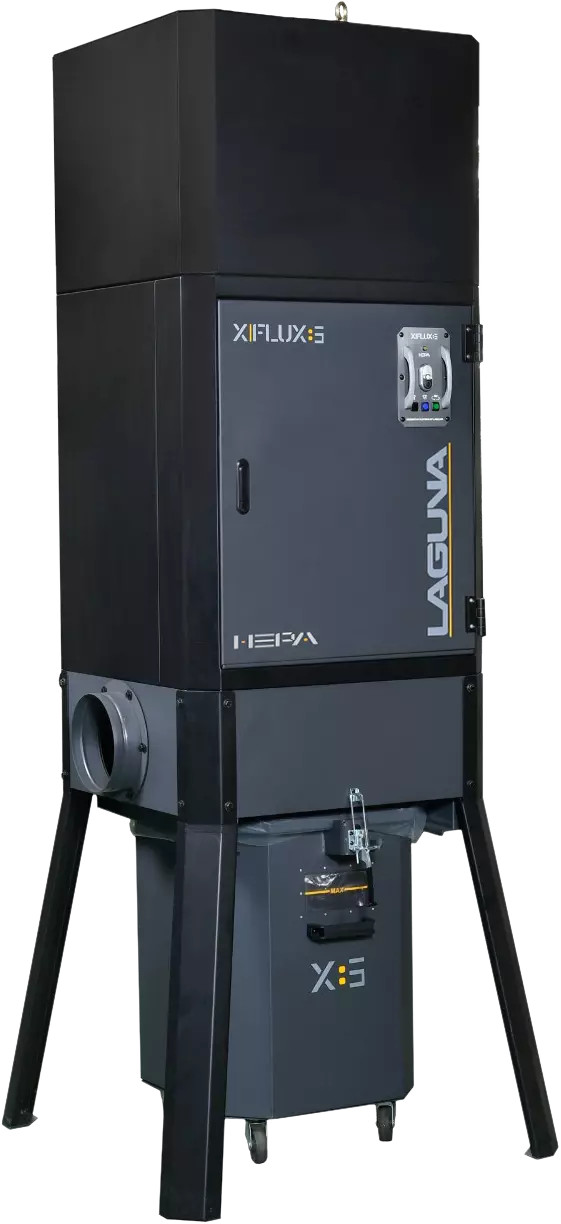

The X|Flux 5 boasts a powerful 5hp motor and impressive 3093 CFM. Auto-cleaning of the HEPA filter is accomplished by double-paddles that sweep the filter every 3 minutes of system use in a clockwise and counterclockwise action. Remote and LED drum light are standard. The X|Flux 5 is a full-size stationary, single-stage dust collection unit with a convenient 39-gallon drum on locking casters.
Designed For The Demanding Hobbyist Or Small Pro Shop
Powerful, compact and low noise level makes the X|Flux 5 an exciting new member of the Laguna Clean Air Lineup
Specifications
- Motor Specs: 5HP
- Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
- Running AMP: (8in inlet) 18.5A at 220V
- Maximum Air Flow: 3093 CFM (Cubic Feet Per Minute)
- Shop Setting Air Flow*: 1823 CFM
- Max Static Pressure: 12in
- Fan Size: 14.5in
- Inlet: 8in
- Auto Clean: 3 min. Interval 10 Seconds F+R
- Decibel Reading: 69 dB (@9.8ft)
- Remote Control: High Frequency
- Collection Capacity: 39 Gallon Octagon Drum
- Assembled Dimensions (L x W x H): 36 x 38 x 91in
- Packing Size (L x W x H): 35.4 x 28.3 x 81.5in (90 x 72 x 207 cm)
- Machine Weight: 456 lbs. (207 kg)
- Shipping Weight: 544 lbs. (247 kg)
Filter Specs
- Filtering Area: 32.3 sq./ft (3 sq./m)
- Cartridge Filter: HEPA 19.7 x 19.7in (50 x 50 cm) x 1pc; (0.3 – 0.4 Micron @ 99.7% Efficiency)
