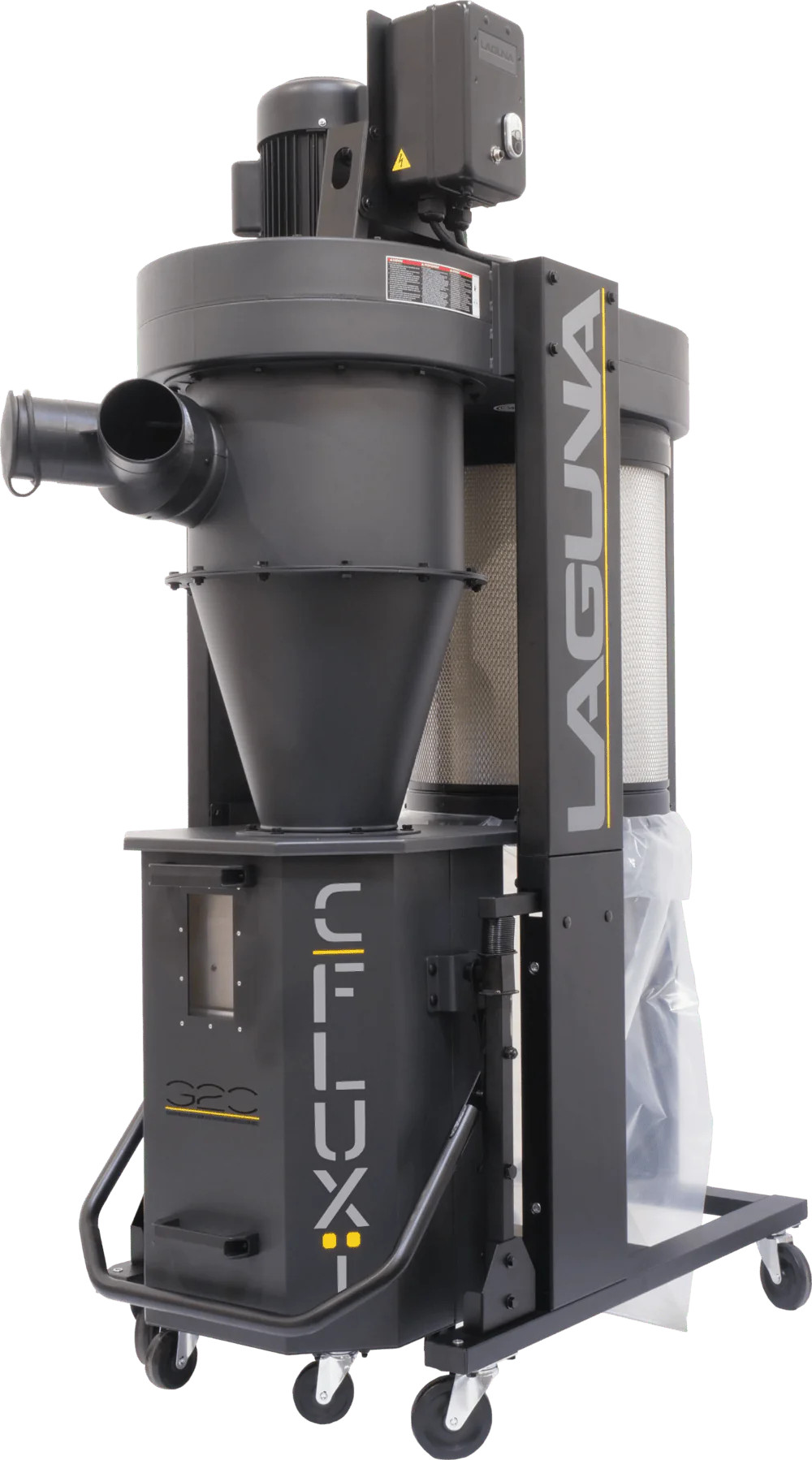

For the popular C|Flux cyclone dust collectors, we’ve kept the user-friendly aspects of the previous generation while adding smart new features to improve the user experience. Among the upgrades is a dual-paddle filter cleaning design, and a max level indicator to increase filter longevity. The iconic octagonal drum grows to an impressive 46-gallon capacity on the C|Flux 2 and 3 models, and the newly redesigned 3-piece drum construction requires far fewer joints and fasteners cutting assembly time, while the locking casters provide additional stability.
Features
- 1.5 HP Motor
- 1314 CFM Maximum Air Flow
- 25 Gallon Octagon Drum
Specifications
- Motor Specs: 1.5HP
- Electrical Specs: 110V/220V / 60Hz / 1PH / 3450 RPM
- Running AMP: (with 6in inlet) 18.8A at 110V; 9.4A at 220V
- Maximum Air Flow: 1314 CFM (Cubic Feet Per Minute)
- Shop Setting Air Flow: 900CFM
- Max Static Pressure: 10.1in
- Fan Size: 13.5in
- Inlet: One 6in or Two 4in Ports
- Remote Control: High Frequency
- Collection Capacity: 25 Gallon Octagon Drum
- Decibel Reading: 82 dB (@9.8ft)
- Assembled Dimensions (L x W x H): 42 x 25 x 68in
- Packing Size (L x W x H): 45 x 28.3 x 47in (114.5 x 72 x 119.5 cm)
- Machine Weight: 232 lbs. (105 kg)
- Shipping Weight: 287 lbs. (130 kg)
- Filtering Area: 48.4 sq./ft (4.5 sq./m)
- Cartridge Filter: 1 Micron, 15.74 x 19.68in (40 x 50 cm) x 1pc
