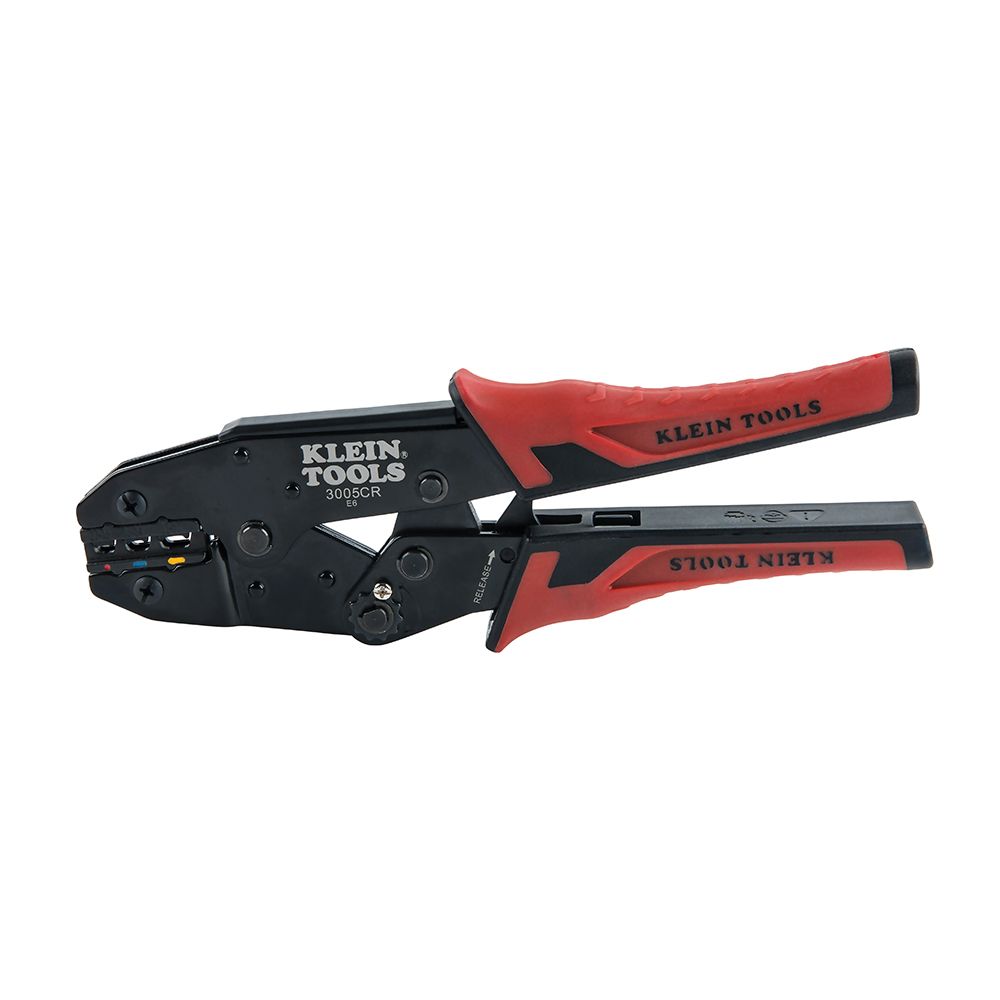

The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.
Features
- Crimps insulated terminals onto 10-22 AWG stranded copper wire
- Adjustable compound action design puts more crimping power into each squeeze
- Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
- Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
- Unique cavity design provides consistent crimp from either side of the tool
- Dial adjusts the amount of force applied to the crimp
- Dual-material molded grips provide added comfort
Includes
- (1) Ratcheting Crimper(3005CR)
Specifications
- Ratcheting Crimper
- Application: Wire Crimping
- Special Features: 3 Crimping Cavities
- Material: Steel
- Handle Color: Red, Black
- Handle Finish: Dual-Material
- Cable Size: Front Cavity: 22-16 AWG Insulated Terminals; Mid Cavity: 16-14 AWG Insulated Terminals; Rear Cavity: 12-10 AWG Insulated Terminals
- Connector Type: Insulated
- Overall Length: 9in (22.9 cm)
- Overall Height: 0.09in (0.2 cm)
- Overall Width: 3in (7.6 cm)
- Weight: 1.3 lb (0.6 kg)
