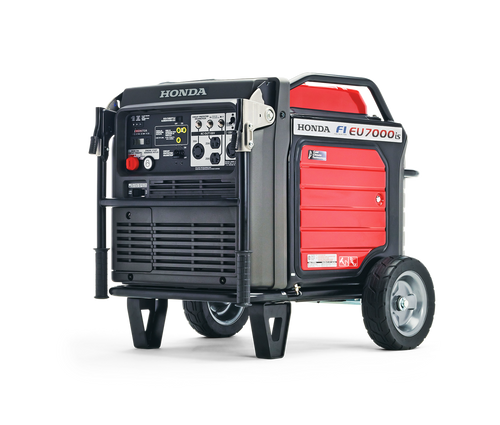

Offers high output for home back up power or RV’s and stable electricity for sensitive electronic devices.
Features
- Electronic Fuel Injection (reduces maintenance associated with carburetors and fuel storage issues)
- 7000 Watts (45.8/22.9 A) 120/240 VAC of Honda inverter power
- Super Quiet - 60 dB(A)
- Large capacity fuel tank, 19.2 liters
- Eco-Throttle standard - Runs up to 12.1 hours at 1/2 load on 19.2 liters of fuel
- Convenient Electric Start with Push button Switch (battery included) and Recoil as back-up
- Wheel Kit Standard with Positive Lock Folding Handle
Specifications
- Generator Type: Dual inverter
- Maximum AC Output (Watts): 7,000
- AC Voltage Available: 120 / 240
- Maximum Continuous AC Output (Watts): 5,500
- Max. Rated AC Amperage @ 120 V / 240 V: 45.8 / 22.9
- Ground Fault Circuit Interrupter (GFCI): N/A
- Frequency (Hertz): 60
- Automatic Voltage Regulator: PWM (Pulse Width Modulation)
- DC Output Volts / Amps: N/A
- Common Duplex Receptacle Specifications: 40 amps/120 VAC continuous is available as combined total from these two AC receptacles. Maximum of 20 amps available from a single receptacle.
- DC Receptacle Specifications: N/A
- DC Charging Cable: N/A
- High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications: This receptacle will supply 30 amps at 120 VAC continuously. This receptacle will supply 22.9 amps at 240 VAC and 45.8 amps at 120 VAC continuously.
- Engine
- Engine Type: Honda GX390T2 OHV, 4-stroke, air-cooled
- Displacement: 389 cc
- Starting System: Electric/recoil
- Low Level Oil Alert System: Standard (LED display)
- Auto Throttle: Eco-Throttle standard
- Remote Start Capability: Optional
- Fuel Tank Capacity: 19.2 liters (4.22 Imp. gal.)
- Additional Info
- Transport Wheels: 2-wheel kit standard
- Lifting Hook: Optional (P/N 06531-Z11- E00ZA)
- Battery: Standard (P/N 31500-MCR-D02AH)
- Approximate Running Time (hrs.) / Tankful: 6.5/ 18
- Rated Fuel Consumption (liters/hr.): 2.95
- Noise Level dB(A) (1.5 m to 7 m): 60
- Length (Without Handles and Wheels): N/A
- Length (With Handles and Wheels): 1,198 mm (47.2 in.)
- Width (Without Handles and Wheels): 539 mm (21.2 in.)
- Width (With Handles and Wheels): 700 mm (27.6 in.)
- Height (Without Lift-Hook): 721 mm (28.4 in.)
- Height (With Lift-Hook): 821 mm (32.3 in.)
- Dry Weight: 118.1 kg (260.4 lbs.)
- Cold Climate Technology: Standard
Choosing the right Honda Generator for You! Click the image below to view the Honda Power Equipment Brochure!
Consumer or residential use:
36-month
comprehensive warranty
Commercial use:
12-month
comprehensive warranty
