Features
- Optimizes every workstation: clean and reliable working with versatile application options.
- Modular system: the unique modular system ensures a secure hold in a very wide range of work situations and the right accessories can be added at any time.
- The vice has a clamping range of 108 mm and a jaw width of 100 mm.
- Interchangeable clamping jaws of various heights for clamping larger materials such as sheet metal and pipes.
- Up to 7800 N holding force for reliable clamping on all magnetic surfaces thanks to an innovative 2-rotor system – even when working with thin sheet metals (from a thickness of 4 mm).
- Clamping in tight sports or on vertical levels? Not a problem with the compact design and extra-narrow permanent magnet.
- 30% magnetic bias for precise alignment of the permanent magnet.

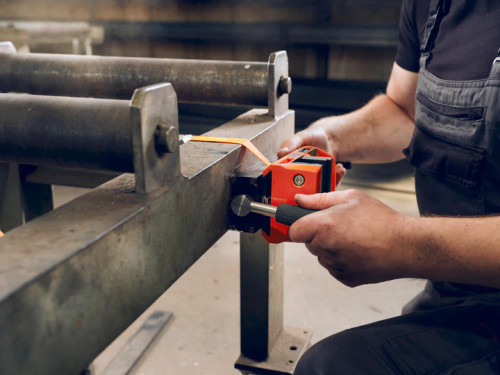

- Secure clamping of components for further machining with various power tools, e.g. angle grinders, drill/drivers, saws, MULTIMASTER etc.

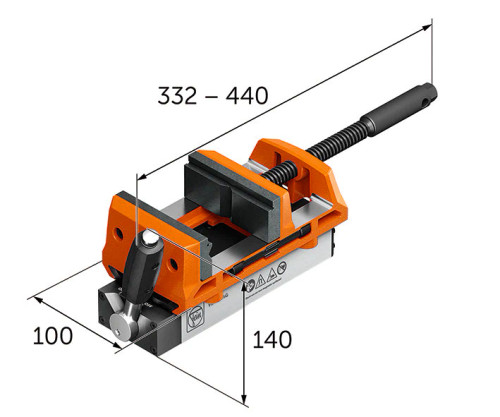

Specifications
- Jaw height
- 1.57 [40] in[mm]
- Jaw width
- 4 [100] in[mm]
- Magnetic holding force
- 1754 [7,800] lbs[N]
- Magnetic base dimensions
- 8-3/8 [212] x2-3/4 [70] in[mm]
- Weight
- 15.98 [7.25] lbs[kg]
Includes
- 1 permanent magnet
- 1 mounting plate
- 1 vise
- 1 Allen key 3 in
- 1 safety strap
