Bosch BOS-GRL2000-40HK REVOLVE2000 Self-Leveling Horizontal Rotary Laser Kit

The Bosch REVOLVE2000 Self-Leveling Horizontal Rotary Laser Kit delivers a comprehensive solution for precise outdoor and indoor leveling. Manual Dual Slope allows the user to adjust the slope angle on the laser on both the X- and Y-axes. The GRL2000-40HK features a horizontal self-leveling laser, suitable for leveling, and aligning applications. This kit contains an all-in-one hard carrying case designed to hold all included accessories. The REVOLVE2000 rotary laser delivers ±1/16 In. accuracy at 100 Ft, and working range of up to 2,000 Ft. with the included receiver. The laser’s electronic self-leveling system has a disturbance monitor, which indicates to the user if tool position changes, ensuring consistent leveling accuracy on the jobsite. The laser has a red metal cage for durability. Easy to use, the kit includes an all-in-one solution includes an LR20 laser receiver with mounting bracket, aluminum tripod, and sturdy grade rod.

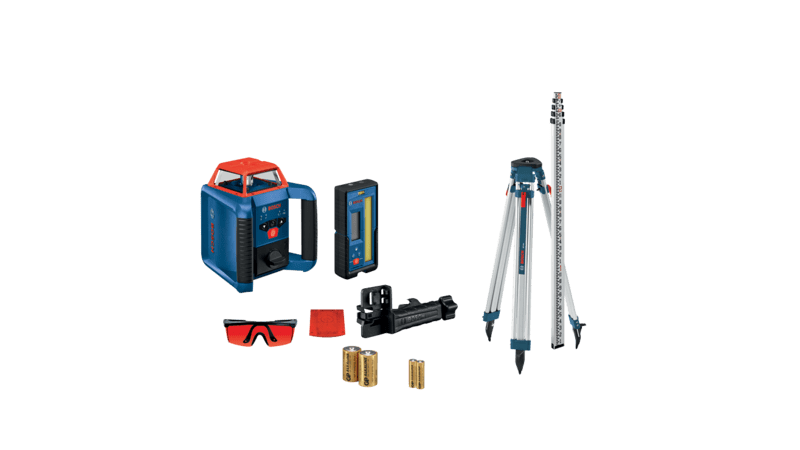

Includes

• (1) GRL2000-40H REVOLVE2000 Self-Leveling Horizontal Rotary Laser
• (1) LR20 Laser Receiver with Bracket
• (1) BT160 Aluminum Contractor Tripod
• (1) GR13 13 Ft. Grade Rod
• (1) Red Laser Glasses
• (1) Red Target Plate
• (2) AA Batteries
• (2) D-Cell Batteries
• (1) All-In-One Hard Carrying Case

Features

• Comprehensive kit – features a rotary laser, laser receiver, tripod, grade rod, laser glasses and all-in-one hard carrying case
• All-in-one hard carrying case – designed to hold included accessories: receiver with bracket, tripod, grade rod, and more
• Manual Dual Slope – allows the user to adjust the slope angle on the laser on both the X- and Y-axes
• Electronic self-leveling – allows for easy setup and use on the job
• Disturbance monitor – indicates if tool position changes, ensuring consistent leveling accuracy
• Reliable accuracy – delivers ±1/16 In. accuracy at 100 Ft.
• Long working-range capability – provides up to 2,000 Ft. working range
• Laser receiver with mounting bracket – allows for easy-to-read LCD dual display and easy attachment to leveling rod
• Lightweight aluminum tripod – features quick-clad release on legs and durable finish
• Durable design – features cage overmold and two large easy-to-grip carrying handles for convenience and additional drop protection

Specifications

• Height: 7.5in
• IP Rating: IP 56
• Laser Diode: Class 3R <5mW @ 630 ~ 670nm
• Length: 7in
• Leveling Type: Self-Leveling, Up to 5°
• Material: Plastic Composite
• Mount Threading: 5/8-11
• Operating Temperature: 14° F / -10° C ~1 22° F / 50° C
• Range: Up to 2,000-ft.
• Weight: 3.9lb
• Width: 6.7in

Recommendations

• Laser Receivers: LR 1 G, LR 30, LR40, LR 50
• Tripods: BT160, BT170HD, BT300HD, BT 150
• Grade Rods: GR500
• Mounts and Positioning Devices: WM 4
