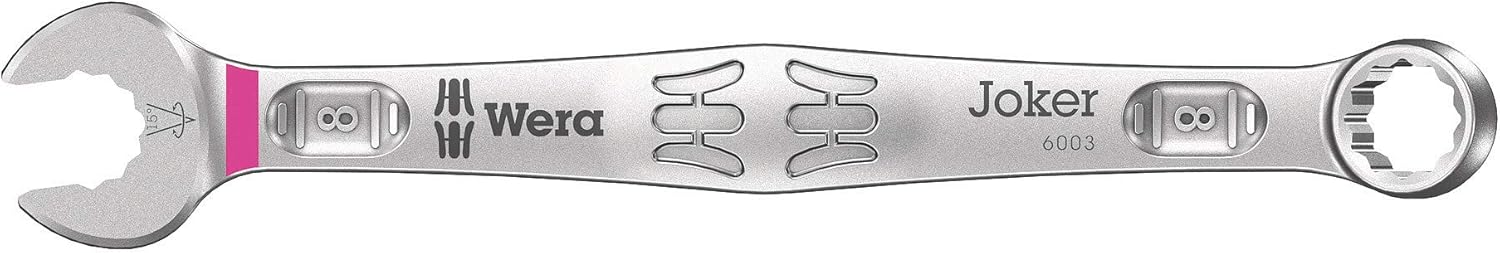

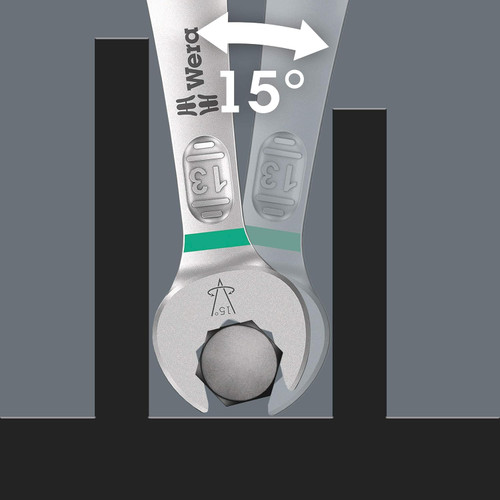

As installation spaces become increasingly confined, tools are necessary that enable users to work successfully even in such situations. Narrow spaces require additional placement points of the tool. Can spanners be modified so that the placement possibilities of the tool increase? The combination of the 7.5° offset open end and the double hexagon geometry doubles the placement points. A repeated 180° turn of the wrench around the longitudinal axis during screwdriving provides four placement possibilities, and bolts or screw heads can be engaged every 15°. The Joker 6003 with its smart open end geometry significantly expands the range of uses in confined spaces. The Joker 6003 will automatically find the respective placement point after every turn. The slim yet robust ring side is tilted by 15° to the tool axis. The high-quality surface treatment achieves a high and long-lasting corrosion protection. With tool finder "Take it easy": color coding by size
Features:
- Especially suitable for tight spaces
- The special open end geometry expands the placement possibilities of the tool
- The low return angle in the open end "takes" the screw every 15°
- Slim ring side with 15° crank
- With Take it easy tool finder: color coding by size
8mm Wrench:
- Wrench Size: 8mm
- Total Length: 115mm
- External Dimensions (b) Mouth: 19mm
- Head Thickness: 4.5mm
- External dimension (b1) - Ratchet Wrench: 12.5mm
- Max. Head Height - Ratchet Wrench: 7mm
10mm Wrench:
- Wrench Size: 10mm
- Total Length: 125mm
- External Dimensions (b) Mouth: 22mm
- Head Thickness: 5mm
- External dimension (b1) - Ratchet Wrench: 15mm
- Max. Head Height - Ratchet Wrench: 7mm
13mm Wrench:
- Wrench Size: 13mm
- Total Length: 160mm
- External Dimensions (b) Mouth: 27mm
- Head Thickness: 6mm
- External dimension (b1) - Ratchet Wrench: 19mm
- Max. Head Height - Ratchet Wrench: 8.5mm
17mm Wrench:
- Wrench Size: 17mm
- Total Length: 190mm
- External Dimensions (b) Mouth: 38mm
- Head Thickness: 6.5mm
- External dimension (b1) - Ratchet Wrench: 24.5mm
- Max. Head Height - Ratchet Wrench: 10mm
19mm Wrench:
- Wrench Size: 19mm
- Total Length: 230mm
- External Dimensions (b) Mouth: 42mm
- Head Thickness: 7.5mm
- External dimension (b1) - Ratchet Wrench: 27.5mm
- Max. Head Height - Ratchet Wrench: 11mm
.
