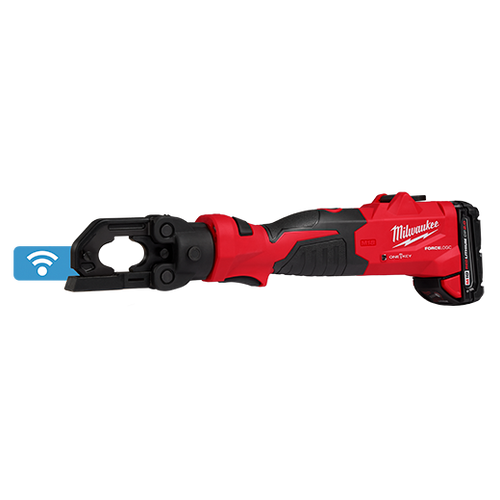

Milwaukee's M18 FORCE LOGIC 6T Latched Linear Utility Crimper is The Easiest Way To Make Uniform Crimps. The inline design and 340° rotating head delivers unmatched access into confined spaces and maximum control in multiple orientations. An enlarged trigger and dual electronic release buttons enable both left and right-handed users to easily activate the tool while wearing Class 3 gloves without changing hand position. The latched head is easily opened and then secured to ensure that only the intended wire gets crimped. The crimper utilizes an industry-standard D3 die index allowing it to crimp up to 4/0 line taps. More space between the die seats enables Milwaukee's users to insert and remove dies while the latch is closed and to easily align on large connectors. Predictive Force Monitoring (PFM) constantly measures output force to ensure full pressure is reached and that the output force is the same over the life of the tool delivering consistently uniform crimps. The crimper also performs a pre-crimp battery check to ensure that the battery has enough charge to complete a full crimp. Equipped with fully enclosed high-speed hydraulics, a POWERSTATE Brushless Motor, REDLINK Electronics, and REDLITHIUM Batteries, the tool provides unmatched reliability in the toughest conditions. Integrated with Milwaukee's ONE KEY Technology, the crimper stores real-time crimp data.
Features:
- Inline design delivers unmatched access
- Predictive Force Monitoring (PFM) ensures full pressure
- Enlarged trigger and slim grip area designed specifically for use with Class 3 gloves
- Compatible with all industry standard W-Style dies
- Hydraulic system optimized for consistent performance from -4° to 140° F
- Pre-crimp battery check automatically ensures enough charge to complete each crimp
- Compatible with the entire M18 System
- Lightest weight allows maximum control
- Inline design and 340° rotating head for unmatched access into confined spaces
- Easy to reach dual electronic release buttons enable easy activation for right and left-handed users
- Optimized latched head enables dies to be inserted while latch is closed
- Instant verification of a successful cycle with Green LED
- Records & Stores Every Crimp Made for Professional Report Building through ONE-KEY
- The latched head is easily opened and then secured to ensure that only the intended wire gets crimped
- Unmatched reliability with completely sealed electronics that keep dirt, dust and moisture out
- Inline design and 340° rotating head deliver unmatched access
- Easy to reach dual electronic release buttons enable easy activation for right and left handed users

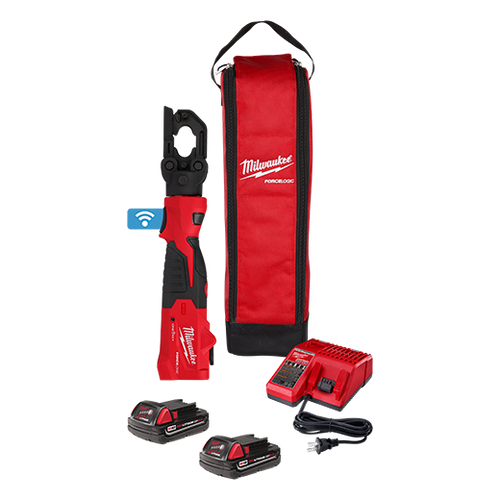

Includes:
- (1) M18 FORCE LOGIC 6T Latched Linear Utility Crimper
- (2) M18 REDLITHIUM CP2.0 Battery(48-11-1820)
- (1) M18 & M12 Multi-Voltage Charger(48-59-1812)
- (1) 6T Utility Crimper & Cutter Bag(48-22-8277)
Specifications:
- Tool Warranty: 5 Year Tool, 2 Year Battery
- Power Source: Cordless
- Motor Type: Brushless
- Length: 17.25 in
- Weight: 6.3 lb.
- Height: 3.75 in
- Width: 3 in
- Brushless: Yes
- Battery System: M18
- Voltage: 18V
- Battery Type: 18 Volt Lithium Ion
