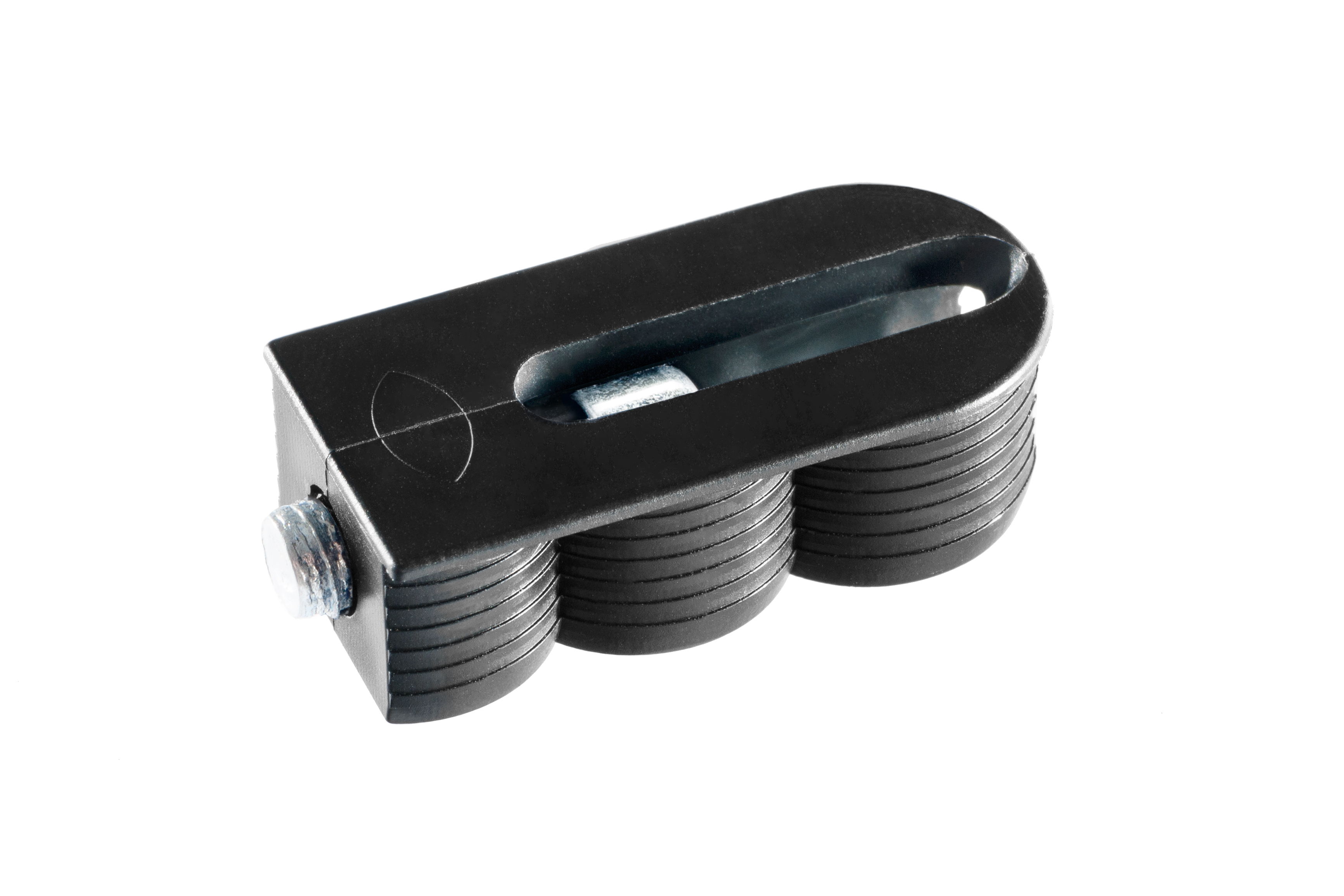

The Cabineo 12 is a one-piece cabinet connector that uses drilling or milling processes, whereby only the surface needs to be machined. No need for edge drilling holes for a dowel. Thanks to this feature, machining is possible on all CNC machining centers, including simple 3-axis machines and nesting machines. The one-piece Cabineo is pressed into the drilling or milling either in the workshop or on site after transportation. During assembly, the pre-assembled, slightly protruding screw is positioned in the drill hole opposite. Using a cordless drill and the Cabineo bit, the screw is screwed into the 5 mm hole of the counterpart and the workpieces are connected quickly and powerfully. Compared to a cam connector, the Cabineo 12 impresses with its more efficient processing and faster assembly. It is also distinguished by a high clamping force without the additional use of wooden dowels. The Cabineo connector offers considerable advantages in the manufacturing, transportation and assembly process. This means that the CNC connector can already be securely mounted in workpieces during the production process. The workpieces can then be stacked as flat packs for transportation, without protruding parts that could damage the workpieces. This also eliminates the fabrication and the additional logistical outlay involved in a separate hardware bag. There are no loose parts of fittings that need to be installed during the final assembly. A white or a black housing may be more suitable, depending on the color of the material used. If the Cabineo is to be concealed, cover caps are available in 12 different colors.
Features:
- Carcase connectors for time savings throughout the entire production chain
- For every CNC machine thanks to simple machining on the surface
- Perfectly tensioned joints due to the high clamping force
- Elimination of dowel drilling and installation leads to time savings
- Ideal for timesaving, stable carcasses and cabinets
- Assemble and screw together directly with the cordless drill without having to insert screws or dowels first
- For use with CNC without edge drilling
- Very high clamping force compared to other cam connectors due to the 12 mm Euro screw, which is screwed in with a cordless drill
- Due to the high strength, no dowels are required, which completely eliminates the need for edge drilling
- Installation in the workshop means no losing of the housing or screw, as well as faster assembly on site
Specifications:
- Installation tolerance longitudinal:± 0.1 mm
- Installation tolerance radial:± 0 mm
- Minimum workpiece width:21 mm
- Minimum material thickness for edge cuts:12 mm
- Minimum material thickness for surface cuts:13 mm
- Minimum material thickness for Centre wall machining:24 mm
- Tensile strength in particle board:820 N
- Tensile strength in MDF:980 N
- Tensile strength in beech:2250 N
- Shear strength in particle board:880 N
- Shear strength in MDF:1120 N
- Shear strength in beech:2350 N
- Size (LxWxH):33.8 x 10.8 x 16.5 mm
Applications:
- General furniture construction or carcass manufacturing for panels
- Built-in cupboards or wardrobes
- Kitchen cupboards detachable for transport
- Kitchen cabinets and open shelf units
- Furniture and displays in shopfitting
Installation Options:
- Collar on the surface so that the milled edge is covered and the connector protrudes slightly
- Collar recessed so that the connector is flush with the panel surface
- Collar and cover cap recessed so that the connector and cover cap are flush with the panel surface
