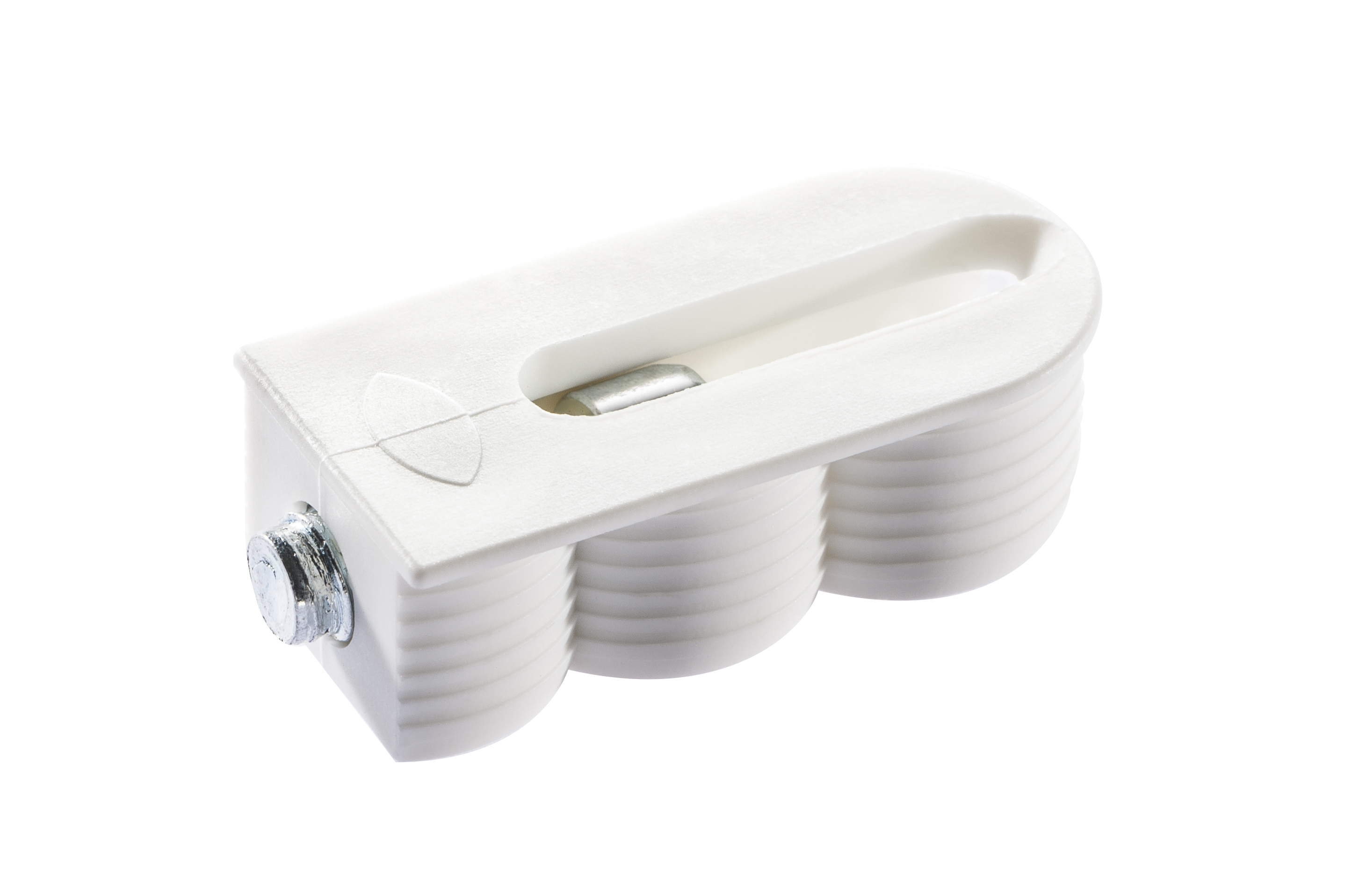

The Cabineo 12 is a one-piece cabinet connector that uses drilling or milling processes, whereby only the surface needs to be machined. No need for edge drilling holes for a dowel. Thanks to this feature, machining is possible on all CNC machining centres, including simple 3-axis machines and nesting machines. The one-piece Cabineo is pressed into the drilling or milling either in the workshop or on site after transportation. During assembly, the pre-assembled, slightly protruding screw is positioned in the drill hole opposite. Using a cordless drill and the Cabineo bit, the screw is screwed into the 5 mm hole of the counterpart and the workpieces are connected quickly and powerfully. Compared to a cam connector, the Cabineo 12 impresses with its more efficient processing and faster assembly. It is also distinguished by a high clamping force without the additional use of wooden dowels. The Cabineo connector offers considerable advantages in the manufacturing, transportation and assembly process. This means that the CNC connector can already be securely mounted in workpieces during the production process. The workpieces can then be stacked as flat packs for transportation, without protruding parts that could damage the workpieces. This also eliminates the fabrication and the additional logistical outlay involved in a separate hardware bag. There are no loose parts of fittings that need to be installed during the final assembly. A white or a black housing may be more suitable, depending on the color of the material used. If the Cabineo is to be concealed, cover caps are available in 12 different colors.
Features:
- Fast assembly: Assemble and screw together directly with the cordless drill without having to insert screws or dowels first
- No edge drilling: For use with CNC without edge drilling
- High clamping force: Very high clamping force compared to other cam connectors due to the 12 mm Euro screw, which is screwed in with a cordless drill
- No dowel holes: Due to the high strength, no dowels are required, which completely eliminates the need for edge drilling
- One-piece pre-installed: Installation in the workshop means no losing of the housing or screw, as well as faster assembly on site
- Carcase connectors for time savings throughout the entire production chain
- For every CNC machine thanks to simple machining on the surface
- Perfectly tensioned joints due to the high clamping force
- Elimination of dowel drilling and installation leads to time savings
- Ideal for time-saving, stable carcasses and cabinets
Technical Specifications:
- Installation tolerance longitudinal: ± 0.5 mm
- Installation tolerance radial: ± 0 mm
The Cabineo offers three installation options:
- Collar on the surface so that the milled edge is covered and the connector protrudes slightly
- Collar recessed so that the connector is flush with the panel surface
- Collar and cover cap recessed so that the connector and cover cap are flush with the panel surface
Applications:
- General furniture construction or carcass manufacturing for panels
- Built-in cupboards or wardrobes
- Kitchen cupboards detachable for transport
- Kitchen cabinets and open shelf units
- Furniture and displays in shopfitting
