The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms. All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws. The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position. Permanently lubricated bearings & Acme screws are part of the internal DNA. Fusion 2 is the true successor to the original Fusion Table Saw. The task was simple: make a saw that was more refined, more precise, and cleaner.
Features:
- 1.75HP TEFC Motor
- 110V, Single-Phase, 60Hz Power Requirement
- Fusion Dust Collection System
- Cabinet Mounted Design
- Included Tools & Integrated Tool Storage
- Included 10 x 40T Carbide-Tipped Blade
- Full Cabinet Body
- Trunion Mounted To Body Not Table
- Cast Iron Table & Wings
- European Hi-Lo Fence
- Overhead Dust Collection

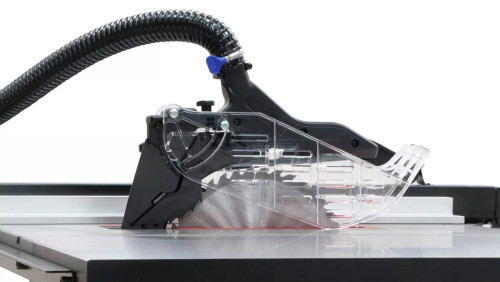

- Quick-Release Blade Guard & Splitter
- Riving Knife Included
- Fence Mounted Push Stick
- Miter Gauge Included
- Tool less Blade Lock
- Integrated Tool Storage
- Polished Handles
- 10 x 40T Blade Included
- Premium Arbor & Motor Bearings
- Mobility Built into Cabinet
Specifications:
- Dust Port Size: 4 in.
- Blade Guard Dust Port Size: 1-½″
- Table Saw Type: Cabinet
- Maximum Blade Diameter: 10″
- Arbor Size: ⅝″
- Arbor Speed: 4500 RPM
- Maximum Width of Dado: ¾″
- Blade Tilt Direction: Left
- Max Blade Tilt: 45°
- Maximum Depth of Cut At 90°: 3-⅛″
- Maximum Depth of Cut At 45°: 2-⅛″
- Max Rip Right of Blade with Included Fence & Rails: 37″
Blade Information:
- Included Blade Information: 10″ x 60T
- Riving Knife/Spreader Thickness: 3/32″
- Required Blade Body Thickness: > 1/8″
- Required Blade Kerf Thickness: < 5/64″
Table Information:
- Floor To Table Height: 35″
- Table Size with Extension Wing Width: 44″
- Table Size with Extension Wings Depth: 27″
- Distance – Front of Table to Center of Blade: 13-3/8″
- Distance – Front of Table to Blade at Maximum Cut: 8-21/32″
- Main Table Size Thickness: 1-1/2″
Fence Information:
- Fence Type: Camlock T-Shape With Aluminum European Hi-Lo Fence
- Fence Size Length: 33-7/16″
- Fence Size Width: 9-13/16″
- Fence Size Height: 3″
- Fence Rail Type: Aluminum Extrusion/Angle Steel
- Fence Rail Length: 66-9/16″
- Fence Rail Width: 3″
- Fence Rail Height: 2
Product Dimensions:
- Weight (Net): 276 lbs.
- Overall Width (Side-To-Side): 66-13/16″
- Overall Depth (Front-To-Back): 39-3/8″
- Overall, Height: 42-7/8″
- Footprint Width: 19-1/4″
- Footprint Length: 42-1/2″
- Space Required for Full Range of Movement Width (Side-To-Side): 66-13/16″
- Space Required for Full Range of Movement Depth (Front-To-Back): 39-3/8″
- Shipping Weight: 435 lbs.
- Shipping Dimensions (W x L x H): 30″ x 48″ x 43
Construction Information:
- Table: Precision-Ground Cast Iron
- Wings: Precision Cast Iron
- Cabinet: Pre-Formed Steel
- Trunnions: Cast Alloy
- Body Assembly: Pre-Formed Steel
- Fence Assembly: Aluminum Extruded Body
- Rails: Steel
- Miter Gauge Construction: Aluminum Body with Steel Bar
- Guard: Steel And Clear Plastic
- Body/Cabinet Paint Type/Finish: Powder Coated
- Arbor Bearings: Sealed & Permanently Lubricated
