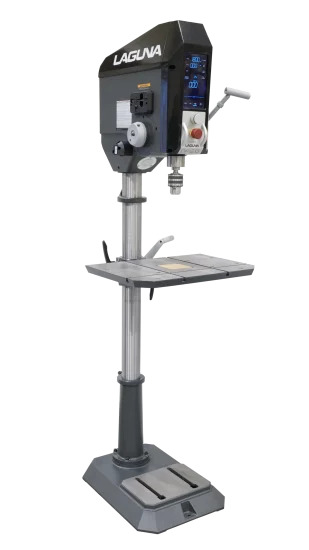

The DP20 is the latest innovation in our classic line, engineered for industrial-grade performance. At its heart is a robust 1.5 hp Pulse Width Modulation (PWM) motor, delivering constant torque across a full speed range of 60 to 3600 RPM, making it perfect for the most demanding applications in wood, metal, plastics, and other material applications.
Industrial-Grade Performance:
- Experience unparalleled efficiency with the Auto-Start function, which activates the drill press when the quill is lowered and stops it when raised. Achieve perfect, repeatable drilling depth with the electronic depth setting or mechanical depth stop. Safety is paramount with a chuck key holder with a sensor that locks out the Auto-Start function during bit changes. The Auto Reverse function is also a standout feature, exclusively used for tapping to automatically reverse the tap when it reaches the preset depth.
Specification:
- Voltage:110 - 120V AC
- Power:1.5 HP
- 15 AMPP
- Frequency: 60 Hz
- Speed Range: Electronic Variable 60 - 3600 RPM Forward / Reverse
- Power Transfer: Poly-groove drive belt
- Machine Control: LCD Touch Screen Smart Panel
- Swing: 20" (1830 mm)
- Spindle Taper: MT2
- Quill: 6" Travel - 2.6" Diameter
- Chuck Capacity: 5/64 - 5/8" (2 - 16 mm)
- Table: 15" x 22", 3 T-slots, 10 Clamp Holes
- Table Movement: +/- 90 Degree Tilt 360 Degree Swivel around column
- Spindle to Table: 30" Max
- Spindle to Base: 49.5" Max
- Base Size: 22.83" x 16.92"
- Column Diameter: 3.15" (80 mm)
- Overall Height: 72.25" (1835 mm)
- Weight: Net wt 304 lbs. (138 kg) - Gross wt 326 lbs. (148 kg)
- Packing Dimensions: 72.5" x 28.5" x 20" (1840 x 725 x 406mm)
- Memory Settings: 5 Memory Settings
