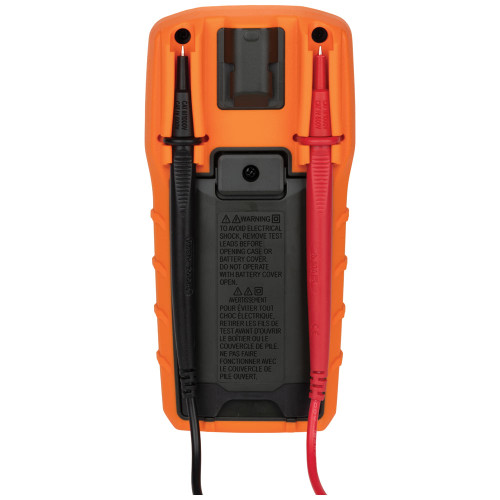

The MM320KIT Digital Multimeter Electrical Test Kit from Klein Tools is designed with reliability and safety in mind. This comprehensive kit comes with MM320 Digital Multimeter, NCVT-3P Non-Contact Voltage Tester with Flashlight, ET45 Voltage Tester, RT210 GFCI Receptacle Tester, a padded storage pouch and all required batteries. All offered in one kit for value and convenience.
Features:
- Digital Multimeter measures up to 600V AC/DC voltage, 10A DC current and 2 ohm resistance
- Meter also test batteries, diodes, and continuity
- Voltage Tester NCVT-3P has dual-range capabilities to detect from 12 to 1000 V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
- Bright flashlight illuminates work area and may be used independent of NCVT-3P voltage detection function
- ET45 tests AC voltages from 28V to 240V AC at four useful levels aligned with commonly used residential voltages, and DC voltages from 32V to 330V at four common levels
- Built-in test lead holder on back of ET45 holds the leads in one of two positions: one so that they are spaced correctly to test tamper-resistant US-style outlets and the other for convenient storage of the test leads
- RT210 detects the most common wiring problems in standard and GFCI receptacles including open ground, reverse polarity, open hot, open neutral and hot/ground reversed
- Receptacle tester works on GFCI outlets and confirms operation of the ground fault protective device
Specifications:
- Type : Digital Multimeter Electrical Kit
- Application : Multimeter Measures up to 600V AC/DC Voltage, 10A DC Current and 2MΩ Resistance. Tests Batteries, Diodes, and Continuity
- Special Features : MM320: Auto Power-Off
- Material : ABS/Electronics
- Batteries : 2 x AAA
- Drop Protection : 3.3' (1 m)
- Display : MM320 : 2000 Count LCD
- Functions : Hold
- Voltage : 600V AC/DC
- Current : 10A
- Ohms (Resistance) : 2MΩ
- Standard : CAT III 600V; CE
- Included : MM320 Auto-Ranging Digital Multimeter with Right-angle Test Leads; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; ET45 AC/DC Voltage Tester; RT210 GFCI Receptacle Tester; Carrying Case; Instructions; and All Required Batteries
- Overall Length : 6.39'' (162.4 cm)
- Overall Height : 1.80'' (45.7 cm)
- Overall Width : 3.12'' (79.4 cm)
- Weight : 8.2 oz (231 g)
Warnings:
- Do not attempt to measure resistance or continuity on live circuits.
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Before each use verify meter operation by measuring a known voltage or current.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
