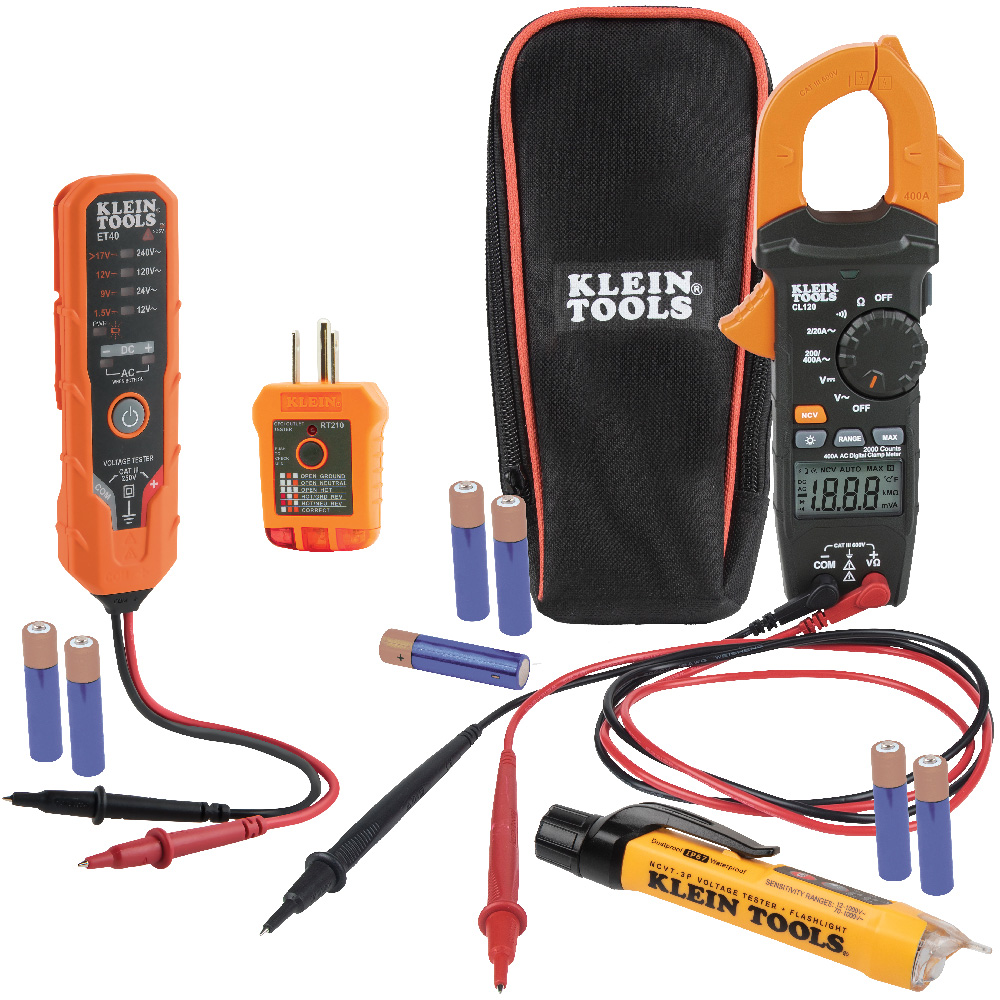

The CL120VP Electrical Test Kit from Klein Tools is designed with optimum reliability and safety in mind. Kit comes with 1 meter and 3 testers for a variety of applications and all stored within a convenient padded pouch. The CL120 is an AC auto-ranging 400 Amp AC/DC digital clamp meter. The RT210 Receptacle Tester detects common wiring problems for Standard and GFCI AC electrical outlets. The NCVT-3P is a dual range non-contact tester with flashlight for a broad variety of voltage applications from 12 to 1000V AC or 70 to 1000V AC. Test AC and DC voltage at four commonly used ranges with the ET40 Voltage Tester.
Features:

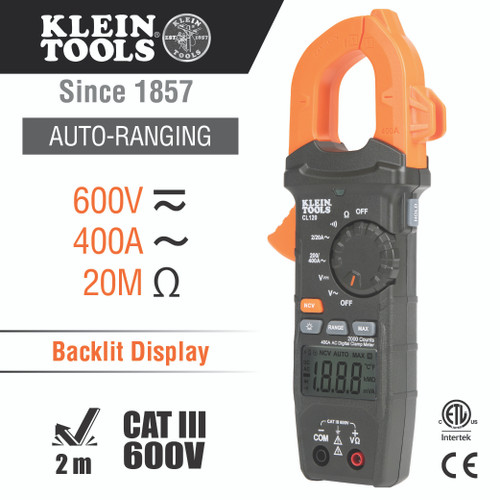

- CL120 Clamp Meter measure AC current via the clamp, and AC/DC voltage, resistance and continuity via test leads
- Meter has backlit LCD for ease of viewing in low light and is CAT III 600V, Class 2 Double Insulated
- RT210 detects the most common wiring problems in standard and GFCI receptacles
- A convenient chart on RT210 helps determine wiring conditions: open ground, reverse polarity, open hot, open neutral, and hot/ground reversed
- NCVT-3P has dual-range capabilities to detect from 12 to 1000V AC or 70 to 1000V AC for a broad variety of low-voltage or standard voltage applications
- Bright flashlight illuminates work area and may be used independent of NCVT-3P voltage detection function
- ET40 tests AC voltages from 12V to 240V AC at four useful levels aligned with commonly used residential voltages
- ET40 also tests DC voltages from 1.5V to greater than 17V to 24V at four common levels
Specifications:
- Type : Auto Ranging Clamp
- Application : Testing and Measuring Voltage
- Special Features : Clamp Meter is Automatic Ranging for Measurement and has NCVT feature
- Overall Length : 8.45'' (21.5 cm)
- Overall Height : 1.5'' (3.8 cm)
- Overall Width : 3.5'' (8.9 cm)
- Material : ABS/Electronics
- Batteries : CL120: 3 x AAA; NCVT3-P: 2 x AAA; ET40: 2 x AAA
- Jaw Size : 1.6'' (4.1 cm)
- Drop Protection : 6.6' (2 m)
- Display : 2000 Count Backlit LCD
- Functions : AC Current, NCVT, AC/DC Voltage, Resistance and Continuity
- Voltage : 600V AC/DC
- Pollution Degree : 2
- Standard : CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
- Included : CL120 Digital Clamp Meter with Test Leads; NCVT3P Dual Range Non-Contact Voltage Tester with Flashlight; ET40 Electronic AC/DC Voltage Tester; RT210 GFCI Receptacle Tester; Carrying Case; Instructions; and All Required Batteries
- Weight : 11 oz (314 g)
Warnings:
- Do not attempt to measure resistance or continuity on live circuits.
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Before each use verify meter operation by measuring a known voltage or current.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
