Gearwrench offers a wide range of impact products in open stock & sets that are designed to deliver the performance and strength that the professional users require. They are made from chrome molybdenum alloy steel for exceptional strength and durability. Gearwrench's sockets have a manganese phosphate coating to resist corrosion. The sockets also feature highly visible laser etched markings and a secondary size hard stamping. The sockets feature off-corner loading to reduce fastener rounding. The Gearwrench impact product family will allow the professional user to forge ahead
Features:
- Chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
- Off-corner loading design reduces fastener rounding
- Black oxide finish to resist corrosion
- High-visibility laser-etched markings provide quick size identification
- Secondary hard stamped size markings
- Meets or exceeds ASME specifications
- Prop 65: No Warning
Specifications:
- ASME Specification: B107.2
- Type: Socket
- Packaging: Hang Tab
- Warranty: Full Lifetime
- Drive Tang Size: 1/2 in
- Length Format: Standard
- Finish: Black Oxide
- Magnetic: No
- SAE/Metric/Torx: SAE
- Drive Type: 6 Point
- Material: Chrome-Molybdenum (Cr-Mo)

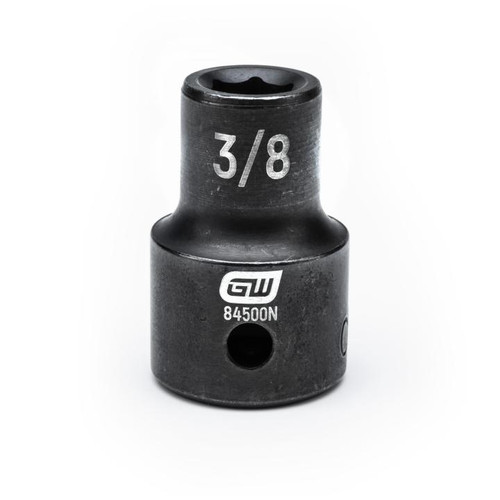

3/8" Standard Impact Socket:
- Dim. A: Drive End: 0.976 in
- Dim. B: Wrench End: 0.689 in
- Dim. D: Bolt Clearance: 0.315 in
- Dim. E: Wrench Depth: 0.315 in
- Dim. F: Length to Shoulder: 0.748 in
- Size: 3/8 in
- Overall Length: 1.496 in
- Weight (Catalog): 0.16 lbs.
- Socket Size (SAE): 3/8 in
7/16" Standard Impact Socket:
- Dim. A: Drive End: 0.976 in
- Dim. B: Wrench End: 0.728 in
- Dim. D: Bolt Clearance: 0.394 in
- Dim. E: Wrench Depth: 0.315 in
- Dim. F: Length to Shoulder: 0.748 in
- Size: 7/16 in
- Overall Length: 1.496 in
- Weight (Catalog): 0.16 lbs.
- Socket Size (SAE): 7/16 in
1/2" Standard Impact Socket:
- Dim. A: Drive End: 0.976 in
- Dim. B: Wrench End: 0.819 in
- Dim. D: Bolt Clearance: 0.394 in
- Dim. E: Wrench Depth: 0.394 in
- Dim. F: Length to Shoulder: 0.748 in
- Size: 1/2 in
- Overall Length: 1.496 in
- Weight (Catalog): 0.17 lbs.
- Socket Size (SAE): 1/2 in
9/16" Standard Impact Socket:
- Dim. A: Drive End: 0.976 in
- Dim. B: Wrench End: 0.866 in
- Dim. D: Bolt Clearance: 0.472 in
- Dim. E: Wrench Depth: 0.394 in
- Dim. F: Length to Shoulder: 0.748 in
- Size: 9/16 in
- Overall Length: 1.496 in
- Weight (Catalog): 0.17 lbs.
- Socket Size (SAE): 9/16 in
5/8" Standard Impact Socket:
- Dim. A: Drive End: 0.976 in
- Dim. B: Wrench End: 0.976 in
- Dim. D: Bolt Clearance: 0.472 in
- Dim. E: Wrench Depth: 0.433 in
- Dim. F: Length to Shoulder: 1.496 in
- Size: 5/8 in
- Overall Length: 1.496 in
- Weight (Catalog): 0.20 lbs.
- Socket Size (SAE): 5/8 in
11/16" Standard Impact Socket:
- Dim. A: Drive End: 1.016 in
- Dim. B: Wrench End: 1.016 in
- Dim. D: Bolt Clearance: 0.472 in
- Dim. E: Wrench Depth: 0.472 in
- Dim. F: Length to Shoulder: 1.496 in
- Size: 11/16 in
- Overall Length: 1.496 in
- Weight (Catalog): 0.21 lbs.
- Socket Size (SAE): 11/16 in
3/4" Standard Impact Socket:
- Dim. A: Drive End: 1.173 in
- Dim. B: Wrench End: 1.173 in
- Dim. D: Bolt Clearance: 0.571 in
- Dim. E: Wrench Depth: 0.512 in
- Dim. F: Length to Shoulder: 1.614 in
- Size: 3/4 in
- Overall Length: 1.614 in
- Weight (Catalog): 0.32 lbs.
- Socket Size (SAE): 3/4 in
13/16" Standard Impact Socket:
- Dim. A: Drive End: 1.252 in
- Dim. B: Wrench End: 1.252 in
- Dim. D: Bolt Clearance: 0.61 in
- Dim. E: Wrench Depth: 0.551 in
- Dim. F: Length to Shoulder: 1.614 in
- Size: 13/16 in
- Overall Length: 1.614 in
- Weight (Catalog): 0.38 lbs.
- Socket Size (SAE): 13/16 in
7/8" Standard Impact Socket:
- Dim. A: Drive End: 1.331 in
- Dim. B: Wrench End: 1.331 in
- Dim. D: Bolt Clearance: 0.669 in
- Dim. E: Wrench Depth: 0.551 in
- Dim. F: Length to Shoulder: 1.614 in
- Size: 7/8 in
- Overall Length: 1.614 in
- Weight (Catalog): 0.43 lbs.
- Socket Size (SAE): 7/8 in
15/16" Standard Impact Socket:
- Dim. A: Drive End: 1.409 in
- Dim. B: Wrench End: 1.409 in
- Dim. D: Bolt Clearance: 0.866 in
- Dim. E: Wrench Depth: 0.551 in
- Dim. F: Length to Shoulder: 1.614 in
- Size: 15/16 in
- Overall Length: 1.614 in
- Weight (Catalog): 0.47 lbs.
- Socket Size (SAE): 15/16 in
1" Standard Impact Socket:
- Dim. A: Drive End: 1.488 in
- Dim. B: Wrench End: 1.488 in
- Dim. D: Bolt Clearance: 0.866 in
- Dim. E: Wrench Depth: 0.591 in
- Dim. F: Length to Shoulder: 1.614 in
- Size: 1 in
- Overall Length: 1.614 in
- Weight (Catalog): 0.53 lbs.
- Socket Size (SAE): 1 in
1-1/16" Standard Impact Socket:
- Dim. A: Drive End: 1.567 in
- Dim. B: Wrench End: 1.567 in
- Dim. D: Bolt Clearance: 0.906 in
- Dim. E: Wrench Depth: 0.63 in
- Dim. F: Length to Shoulder: 1.614 in
- Size: 1-1/16 in
- Overall Length: 1.614 in
- Weight (Catalog): 0.59 lbs.
- Socket Size (SAE): 1-1/16 in
1-1/8" Standard Impact Socket:
- Dim. A: Drive End: 1.567 in
- Dim. B: Wrench End: 1.567 in
- Dim. D: Bolt Clearance: 0.945 in
- Dim. E: Wrench Depth: 0.638 in
- Dim. F: Length to Shoulder: 1.614 in
- Size: 1-1/8 in
- Overall Length: 1.614 in
- Weight (Catalog): 0.57 lbs.
- Socket Size (SAE): 1-1/8 in
1-3/16" Standard Impact Socket:
- Dim. A: Drive End: 1.646 in
- Dim. B: Wrench End: 1.646 in
- Dim. D: Bolt Clearance: 0.984 in
- Dim. E: Wrench Depth: 0.638 in
- Dim. F: Length to Shoulder: 1.614 in
- Size: 1-3/16 in
- Overall Length: 1.614 in
- Weight (Catalog): 0.69 lbs.
- Socket Size (SAE): 1-3/16 in
1-1/4" Standard Impact Socket:
- Dim. A: Drive End: 1.724 in
- Dim. B: Wrench End: 1.724 in
- Dim. D: Bolt Clearance: 1.024 in
- Dim. E: Wrench Depth: 0.638 in
- Dim. F: Length to Shoulder: 1.614 in
- Size: 1-1/4 in
- Overall Length: 1.614 in
- Weight (Catalog): 0.69 lbs.
- Socket Size (SAE): 1-1/4 in
1-5/16" Standard Impact Socket:
- Dim. A: Drive End: 1.803 in
- Dim. B: Wrench End: 1.803 in
- Dim. D: Bolt Clearance: 0.906 in
- Dim. E: Wrench Depth: 1.063 in
- Dim. F: Length to Shoulder: 1.909 in
- Size: 1-5/16 in
- Overall Length: 1.909 in
- Weight (Catalog): 0.81 lbs.
- Socket Size (SAE): 1-5/16 in
1-3/8" Standard Impact Socket:
- Dim. A: Drive End: 1.843 in
- Dim. B: Wrench End: 1.843 in
- Dim. D: Bolt Clearance: 0.937 in
- Dim. E: Wrench Depth: 1.063 in
- Dim. F: Length to Shoulder: 1.909 in
- Size: 1-3/8 in
- Overall Length: 1.909 in
- Weight (Catalog): 0.83 lbs.
- Socket Size (SAE): 1-3/8 in
1-7/16" Standard Impact Socket:
- Dim. A: Drive End: 1.921 in
- Dim. B: Wrench End: 1.921 in
- Dim. D: Bolt Clearance: 1 in
- Dim. E: Wrench Depth: 1.063 in
- Dim. F: Length to Shoulder: 1.909 in
- Size: 1-7/16 in
- Overall Length: 1.909 in
- Weight (Catalog): 0.88 lbs.
- Socket Size (SAE): 1-7/16 in
1-1/2" Standard Impact Socket:
- Dim. A: Drive End: 2 in
- Dim. B: Wrench End: 2 in
- Dim. D: Bolt Clearance: 1.062 in
- Dim. E: Wrench Depth: 1.063 in
- Dim. F: Length to Shoulder: 1.909 in
- Size: 1-1/2 in
- Overall Length: 1.909 in
- Weight (Catalog): 0.99 lbs.
- Socket Size (SAE): 1-1/2 in
