Gearwrench GW-8165X SAE 12 Point Long Pattern Combination Wrench

The Gearwrench combination wrenches are durable tools for most jobs. They are made from alloy steel with either a full polish or satin finish that resists rust & corrosion. The off-corner loading design on both ends provides a stronger grip on fasteners, reduces fastener rounding, and delivers up to 25% more torque to the fasteners. Sizes are stamped on the beam for quick, easy, & permanent identification. The box end is offset 15° for increased access to fasteners. Available in stubby & long pattern lengths and 6 & 12 point, the Gearwrench combination wrenches are a must have for every toolbox.

Features:

• 15° offset for better access in tight spaces

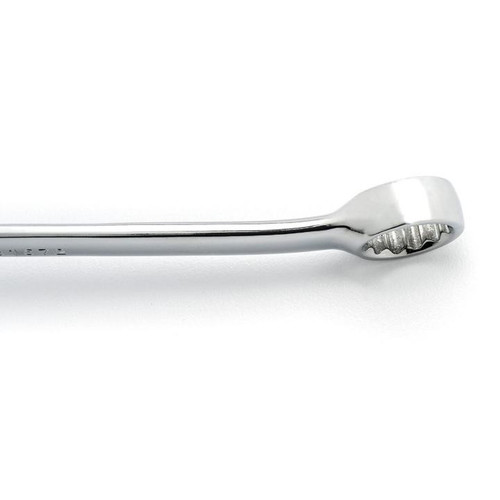

• Off-corner loading design on box end provides better grip and reduces fastener rounding
• Long pattern beam length for improved reach, leverage and torque

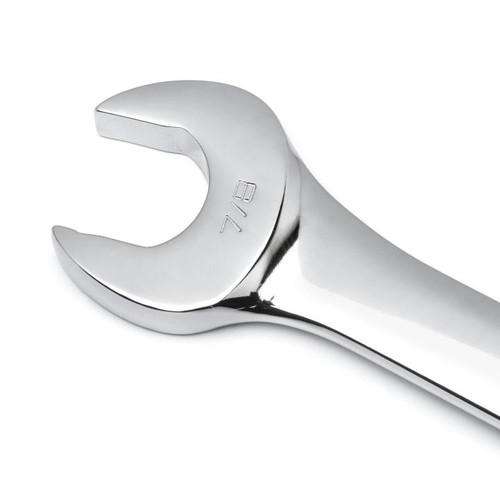

• Hard stamped size marking
• Manufactured from alloy steel for better strength and longer tool life
• Bright, full polish chrome finish easily wipes clean and resists corrosion
• Meets or exceeds ASME specifications
• Prop 65: WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Specifications:

• Tether Ready: No
• Flexible: No
• Packaging: Carded
• Warranty: Full Lifetime
• Type: Combination
• End A Drive Type: Open End
• End B Offset Degrees: 15
• End B Drive Type: 12 Point
• Length Format: Long
• Finish: Full Polish Chrome
• SAE/Metric/Torx : SAE
• End A Offset Degrees: 0
• Drive Type: 12 Point
• Material: Alloy Steel

1/4" Long Pattern Combination Wrench:

• Overall Length: 5.09 in
• Size: 1/4 in
• End B Width: 0.449 in
• Weight (Catalog): 0.7 lbs.
• End B Thickness: 0.197 in
• End A Fastener Size: 1/4 in
• End B Fastener Size: 1/4 in
• End A Width: 0.52 in
• End A Thickness: 0.161 in
• Wrench Size (SAE): 1/4 in

5/16" Long Pattern Combination Wrench:

• Overall Length: 5.8 in
• Size: 5/16 in
• End B Width: 0.535 in
• Weight (Catalog): 0.09 lbs.
• End B Thickness: 0.217 in
• End A Fastener Size: 5/16 in
• End B Fastener Size: 5/16 in
• End A Width: 0.654 in
• End A Thickness: 0.177 in
• Wrench Size (SAE): 5/16 in

11/32" Long Pattern Combination Wrench:

• Overall Length: 6.22 in
• Size: 11/32 in
• End B Width: 0.583 in
• Weight (Catalog): 0.11 lbs.
• End B Thickness: 0.244 in
• End A Fastener Size: 11/32 in
• End B Fastener Size: 11/32 in
• End A Width: 0.728 in
• End A Thickness: 0.185 in
• Wrench Size (SAE): 11/32 in

3/8" Long Pattern Combination Wrench:

• Overall Length: 6.54 in
• Size: 3/8 in
• End B Width: 0.634 in
• Weight (Catalog): 0.13 lbs.
• End B Thickness: 0.272 in
• End A Fastener Size: 3/8 in
• End B Fastener Size: 3/8in
• End A Width: 0.807 in
• End A Thickness: 0.213 in
• Wrench Size (SAE): 3/8in

7/16" Long Pattern Combination Wrench:

• Overall Length: 6.29 in
• Size: 7/16 in
• End B Width: 0.685 in
• Weight (Catalog): 0.18 lbs.
• End B Thickness: 0.295 in
• End A Fastener Size: 7/16in
• End B Fastener Size:7/16 in
• End A Width: 0.894 in
• End A Thickness: 0.236 in
• Wrench Size (SAE):7/16 in

1/2" Long Pattern Combination Wrench:

• Overall Length: 8.11 in
• Size: 1/2 in
• End B Width: 0.78 in
• Weight (Catalog): 0.24 lbs.
• End B Thickness: 0.335 in
• End A Fastener Size:1/2 in
• End B Fastener Size:1/2 in
• End A Width: 1.051 in
• End A Thickness: 0.252 in
• Wrench Size (SAE):1/2 in

9/16" Long Pattern Combination Wrench:

• Overall Length: 8.74 in
• Size: 9/16 in
• End B Width: 0.846 in
• Weight (Catalog): 0.26 lbs.
• End B Thickness: 0.366 in
• End A Fastener Size:9/16 in
• End B Fastener Size:9/16 in
• End A Width: 1.138 in
• End A Thickness: 0.276 in
• Wrench Size (SAE):9/16 in

5/8" Long Pattern Combination Wrench:

• Overall Length: 9.52 in
• Size: 5/8 in
• End B Width: 0.941 in
• Weight (Catalog): 0.38 lbs.
• End B Thickness: 0.413 in
• End A Fastener Size:5/8 in
• End B Fastener Size:5/8 in
• End A Width: 1.291 in
• End A Thickness: 0.303 in
• Wrench Size (SAE):5/8 in

11/16" Long Pattern Combination Wrench:

• Overall Length: 10.23 in
• Size: 11/16 in
• End B Width: 1.016 in
• Weight (Catalog): 0.49 lbs.
• End B Thickness: 0.433 in
• End A Fastener Size:11/16 in
• End B Fastener Size:11/16 in
• End A Width: 1.382 in
• End A Thickness: 0.319 in
• Wrench Size (SAE):11/16 in

13/16" Long Pattern Combination Wrench:

• Overall Length: 11.827 in
• Size: 13/16 in
• End B Width: 1.201 in
• Weight (Catalog): 0.73 lbs.
• End B Thickness: 0.52 in
• End A Fastener Size:13/16 in
• End B Fastener Size:1 in
• End A Width: 1.701 in
• End A Thickness: 0.39 in
• Wrench Size (SAE):13/16 in

7/8" Long Pattern Combination Wrench:

• Overall Length: 12.52 in
• Size: 7/8 in
• End B Width: 1.264 in
• Weight (Catalog): 0.82 lbs.
• End B Thickness: 0.539 in
• End A Fastener Size:7/8 in
• End B Fastener Size:1-1/16 in
• End A Width: 1.783 in
• End A Thickness: 0.406 in
• Wrench Size (SAE):7/8 in

15/16" Long Pattern Combination Wrench:

• Overall Length: 13.252 in
• Size: 15/16 in
• End B Width: 1.327 in
• Weight (Catalog): 1.04 lbs.
• End B Thickness: 0.579 in
• End A Fastener Size:15/16 in
• End B Fastener Size:1-1/8 in
• End A Width: 1.945 in
• End A Thickness: 0.429 in
• Wrench Size (SAE):15/16 in

1" Long Pattern Combination Wrench:

• Overall Length: 14.035 in
• Size: 1 in
• End B Width: 1.398 in
• Weight (Catalog): 1.15 lbs.
• End B Thickness: 0.598 in
• End A Fastener Size:1 in
• End B Fastener Size:1-1/4 in
• End A Width: 2.024 in
• End A Thickness: 0.445 in
• Wrench Size (SAE):1 in
