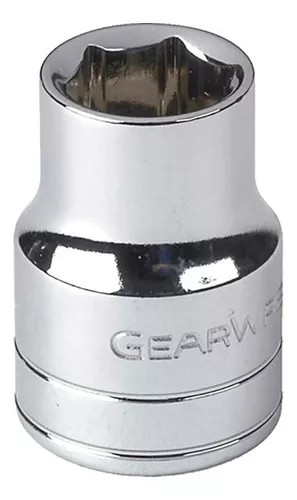

GEARWRENCH GW-8060X 1/2in Drive 6 Point Standard SAE Socket

Gearwrench 1/2" drive sockets are manufactured from alloy steel for maximum durability and strength. Gearwrench's off corner loading design reduces fastener rounding and the chamfered opening help guide the socket on to fasteners. Gearwrench's sockets feature a double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets.

Features:

• Off-corner loading design reduces fastener rounding
• Chamfered opening quickly guides fasteners into socket
• Hard stamped size markings
• Double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets
• Bright, full polish chrome finish easily wipes clean and resists corrosion
• Meets or exceeds ASME specifications
• Prop 65: WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Specifications:

• ASME Specification: B107.1
• US Federal Specification: GGG-W-641 E
• Knurled: No
• Type: Socket
• Warranty: Full Lifetime
• Length Format: Standard
• Finish: Full Polish Chrome
• Overall Length: 1.488 in
• Magnetic: No
• SAE/Metric/Torx: SAE
• Drive Tang Size: 1/2 in
• Drive Type: 6 Point
• Material: Alloy Steel

7/16in Standard Socket:

• Dim. A: Drive End: 0.874 in
• Dim. B: Wrench End: 0.669 in
• Dim. D: Bolt Clearance: 0.283 in
• Dim. E: Wrench Depth: 0.551 in
• Dim. F: Length to Shoulder: 0.748 in
• Overall Length: 1.488 in
• Weight (Catalog): 0.13 lbs.
• Size: 7/16 in
• Socket Size (SAE): 7/16 in

1/2in Standard Socket:

• Dim. A: Drive End: 0.874 in
• Dim. B: Wrench End: 0.732 in
• Dim. D: Bolt Clearance: 0.354 in
• Dim. E: Wrench Depth: 0.551 in
• Dim. F: Length to Shoulder: 0.748 in
• Overall Length: 1.488 in
• Weight (Catalog): 0.13 lbs.
• Size: 1/2 in
• Socket Size (SAE): 1/2 in

9/16in Standard Socket:

• Dim. A: Drive End: 0.874 in
• Dim. B: Wrench End: 0.732 in
• Dim. D: Bolt Clearance: 0.354 in
• Dim. E: Wrench Depth: 0.551 in
• Dim. F: Length to Shoulder: 0.748 in
• Overall Length: 1.488 in
• Weight (Catalog): 0.13 lbs.
• Size: 9/16 in
• Socket Size (SAE): 9/16 in

5/8in Standard Socket:

• Dim. A: Drive End: 0.874 in
• Dim. B: Wrench End: 0.732 in
• Dim. D: Bolt Clearance: 0.354 in
• Dim. E: Wrench Depth: 0.551 in
• Dim. F: Length to Shoulder: 0.748 in
• Overall Length: 1.488 in
• Weight (Catalog): 0.13 lbs.
• Size: 5/8 in
• Socket Size (SAE): 5/8 in

3/4in Standard Socket:

• Dim. A: Drive End: 1.020 in
• Dim. B: Wrench End: 1.020 in
• Dim. D: Bolt Clearance: 0.472 in
• Dim. E: Wrench Depth: 0.768 in
• Dim. F: Length to Shoulder: 0.748 in
• Overall Length: 1.488 in
• Weight (Catalog): 0.18 lbs.
• Size: 3/4 in
• Socket Size (SAE): 3/4 in

7/8in Standard Socket:

• Dim. A: Drive End: 1.177 in
• Dim. B: Wrench End: 1.177 in
• Dim. D: Bolt Clearance: 0.472 in
• Dim. E: Wrench Depth: 0.768 in
• Dim. F: Length to Shoulder: 0.748 in
• Overall Length: 1.488 in
• Weight (Catalog): 0.24 lbs.
• Size: 7/8 in
• Socket Size (SAE): 7/8 in

15/16in Standard Socket:

• Dim. A: Drive End: 1.256 in
• Dim. B: Wrench End: 1.256 in
• Dim. D: Bolt Clearance: 0.472 in
• Dim. E: Wrench Depth: 0.807 in
• Dim. F: Length to Shoulder: 0.748 in
• Overall Length: 1.488 in
• Weight (Catalog): 0.29 lbs.
• Size: 15/16 in
• Socket Size (SAE): 15/16 in

1-1/16in Standard Socket:

• Dim. A: Drive End: 1.413 in
• Dim. B: Wrench End: 1.413 in
• Dim. D: Bolt Clearance: 0.472 in
• Dim. E: Wrench Depth: 0.886 in
• Dim. F: Length to Shoulder: 0.748 in
• Overall Length: 1.575 in
• Weight (Catalog): 0.38 lbs.
• Size: 1-1/16 in
• Socket Size (SAE): 1-1/16 in

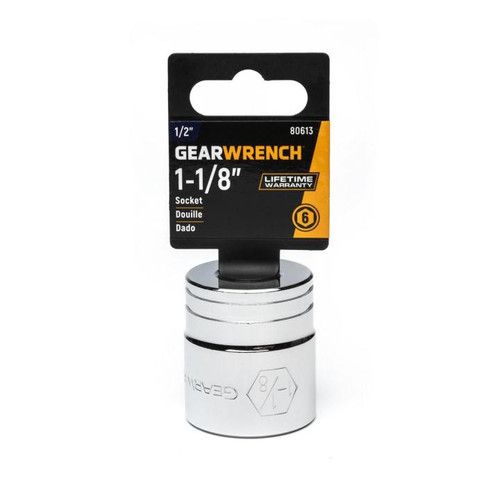

1-1/8in Standard Socket:

• Dim. A: Drive End: 1.492 in
• Dim. B: Wrench End: 1.492 in
• Dim. D: Bolt Clearance: 0.472 in
• Dim. E: Wrench Depth: 0.965 in
• Dim. F: Length to Shoulder: 0.748 in
• Overall Length: 1.654 in
• Weight (Catalog): 0.44 lbs.
• Size: 1-1/8 in
• Socket Size (SAE): 1-1/8 in

1-3/16in Standard Socket:

• Dim. A: Drive End: 1.524 in
• Dim. B: Wrench End: 1.571 in
• Dim. D: Bolt Clearance: 0.453 in
• Dim. E: Wrench Depth: 0.965 in
• Dim. F: Length to Shoulder: 1.496 in
• Overall Length: 1.654 in
• Weight (Catalog): 0.50 lbs.
• Size: 1-3/16 in
• Socket Size (SAE): 1-3/16 in

1-1/4in Standard Socket:

• Dim. A: Drive End: 1.602 in
• Dim. B: Wrench End: 1.650 in
• Dim. D: Bolt Clearance: 0.453 in
• Dim. E: Wrench Depth: 0.965 in
• Dim. F: Length to Shoulder: 1.496 in
• Overall Length: 1.654 in
• Weight (Catalog): 0.50 lbs.
• Size: 1-1/4 in
• Socket Size (SAE): 1-1/4 in

1-1/2in Standard Socket:

• Dim. A: Drive End: 1.913 in
• Dim. B: Wrench End: 1.961 in
• Dim. D: Bolt Clearance: 0.453 in
• Dim. E: Wrench Depth: 1.220 in
• Dim. F: Length to Shoulder: 1.496 in
• Overall Length: 1.969 in
• Weight (Catalog): 0.55 lbs.
• Size: 1-1/2 in
• Socket Size (SAE): 1-1/2 in
