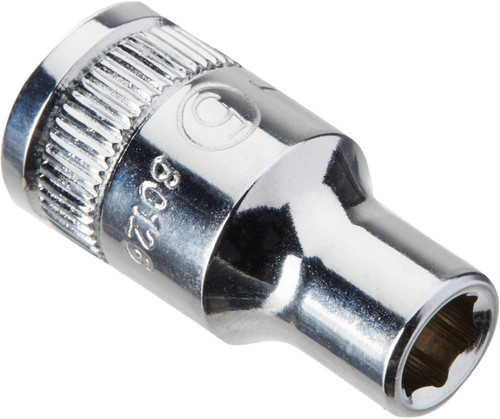

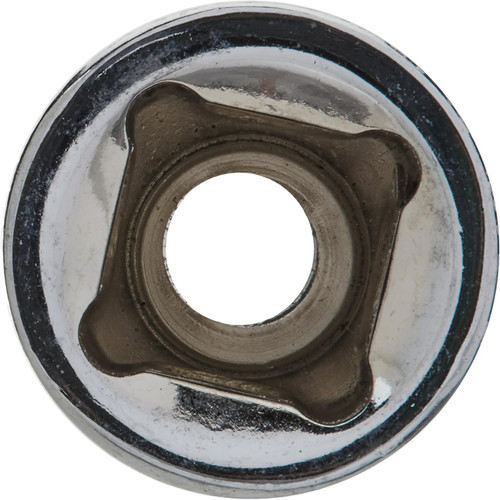

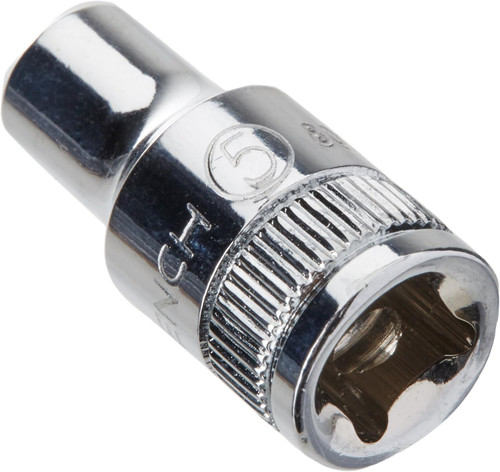

GEARWRENCH GW-8012X 1/4in Drive 6 Point Standard Metric Socket

Gearwrench 1/4" drive sockets are manufactured from alloy steel for maximum durability and strength. Gearwrench's off corner loading design reduces fastener rounding and the chamfered opening help guide the socket on to fasteners. Gearwrench's sockets feature a double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets.

Features:

• Off-corner loading design reduces fastener rounding
• Chamfered opening quickly guides fasteners into socket
• Serration depth inside the socket is as deep as the fastener hold it in the correct position
• Hard stamped size markings
• Double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets
• Bright, full polish chrome finish easily wipes clean and resists corrosion
• Meets or exceeds ASME specifications
• Prop 65: WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Specifications:

• ASME Specification: B107.5M
• Overall Length: 0.965 in
• Drive Tang Size: 1/4 in
• Knurled: Yes
• ANSI Specification: Meets or Exceeds
• Type: Socket
• Warranty: Full Lifetime
• Length Format: Standard
• Finish: Full Polish Chrome
• Magnetic: No
• SAE/Metric/Torx: Metric
• Drive Type: 6 Point
• Material: Alloy Steel
• Dim. F: Length to Shoulder: 0.453 in

5mm Standard Socket:

• Dim. A: Drive End: 0.465 in
• Dim. B: Wrench End: 0.315 in
• Dim. D: Bolt Clearance: 0.157 in
• Dim. E: Wrench Depth: 0.315 in
• Weight (Catalog): 0.02 lbs.
• Socket Size (mm): 5mm
• Size: 5mm

5.5mm Standard Socket:

• Dim. A: Drive End: 0.465 in
• Dim. B: Wrench End: 0.339 in
• Dim. D: Bolt Clearance: 0.157 in
• Dim. E: Wrench Depth: 0.315 in
• Dim. F: Length to Shoulder: 0.453 in
• Weight (Catalog): 0.02 lbs.
• Socket Size (mm): 5.5mm
• Size: 5.5mm

6mm Standard Socket:

• Dim. A: Drive End: 0.465 in
• Dim. B: Wrench End: 0.362 in
• Dim. D: Bolt Clearance: 0.157 in
• Dim. E: Wrench Depth: 0.354 in
• Dim. F: Length to Shoulder: 0.453 in
• Weight (Catalog): 0.02 lbs.
• Socket Size (mm): 6mm
• Size: 6mm

7mm Standard Socket:

• Dim. A: Drive End: 0.465 in
• Dim. B: Wrench End: 0.421 in
• Dim. D: Bolt Clearance: 0.220 in
• Dim. E: Wrench Depth: 0.374 in
• Dim. F: Length to Shoulder: 0.453 in
• Weight (Catalog): 0.02 lbs.
• Socket Size (mm): 7mm
• Size: 7mm

8mm Standard Socket:

• Dim. A: Drive End: 0.465 in
• Dim. B: Wrench End: 0.453 in
• Dim. D: Bolt Clearance: 0.220 in
• Dim. E: Wrench Depth: 0.394 in
• Dim. F: Length to Shoulder: 0.453 in
• Weight (Catalog): 0.02 lbs.
• Socket Size (mm): 8mm
• Size: 8mm

10mm Standard Socket:

• Dim. A: Drive End: 0.563 in
• Dim. B: Wrench End: 0.563 in
• Dim. D: Bolt Clearance: 0.220 in
• Dim. E: Wrench Depth: 0.492 in
• Dim. F: Length to Shoulder: 0.453 in
• Weight (Catalog): 0.04 lbs.
• Socket Size (mm): 10mm
• Size: 10mm

11mm Standard Socket:

• Dim. A: Drive End: 0.622 in
• Dim. B: Wrench End: 0.622 in
• Dim. D: Bolt Clearance: 0.220 in
• Dim. E: Wrench Depth: 0.492 in
• Dim. F: Length to Shoulder: 0.453 in
• Weight (Catalog): 0.03 lbs.
• Socket Size (mm): 11mm
• Size: 11mm

12mm Standard Socket:

• Dim. A: Drive End: 0.661 in
• Dim. B: Wrench End: 0.661 in
• Dim. D: Bolt Clearance: 0.220 in
• Dim. E: Wrench Depth: 0.492 in
• Dim. F: Length to Shoulder: 0.453 in
• Weight (Catalog): 0.03 lbs.
• Socket Size (mm): 12mm
• Size: 12mm

13mm Standard Socket:

• Dim. A: Drive End: 0.705 in
• Dim. B: Wrench End: 0.705 in
• Dim. D: Bolt Clearance: 0.220 in
• Dim. E: Wrench Depth: 0.492 in
• Dim. F: Length to Shoulder: 0.453 in
• Weight (Catalog): 0.04 lbs.
• Socket Size (mm): 13mm
• Size: 13mm

14mm Standard Socket:

• Dim. A: Drive End: 0.768 in
• Dim. B: Wrench End: 0.768 in
• Dim. D: Bolt Clearance: 0.220 in
• Dim. E: Wrench Depth: 0.571 in
• Dim. F: Length to Shoulder: 0.453 in
• Weight (Catalog): 0.04 lbs.
• Socket Size (mm): 14mm
• Size: 14mm

15mm Standard Socket:

• Dim. A: Drive End: 0.819 in
• Dim. B: Wrench End: 0.819 in
• Dim. D: Bolt Clearance: 0.220 in
• Dim. E: Wrench Depth: 0.571 in
• Dim. F: Length to Shoulder: 0.453 in
• Weight (Catalog): 0.07 lbs.
• Socket Size (mm): 15mm
• Size: 15mm
