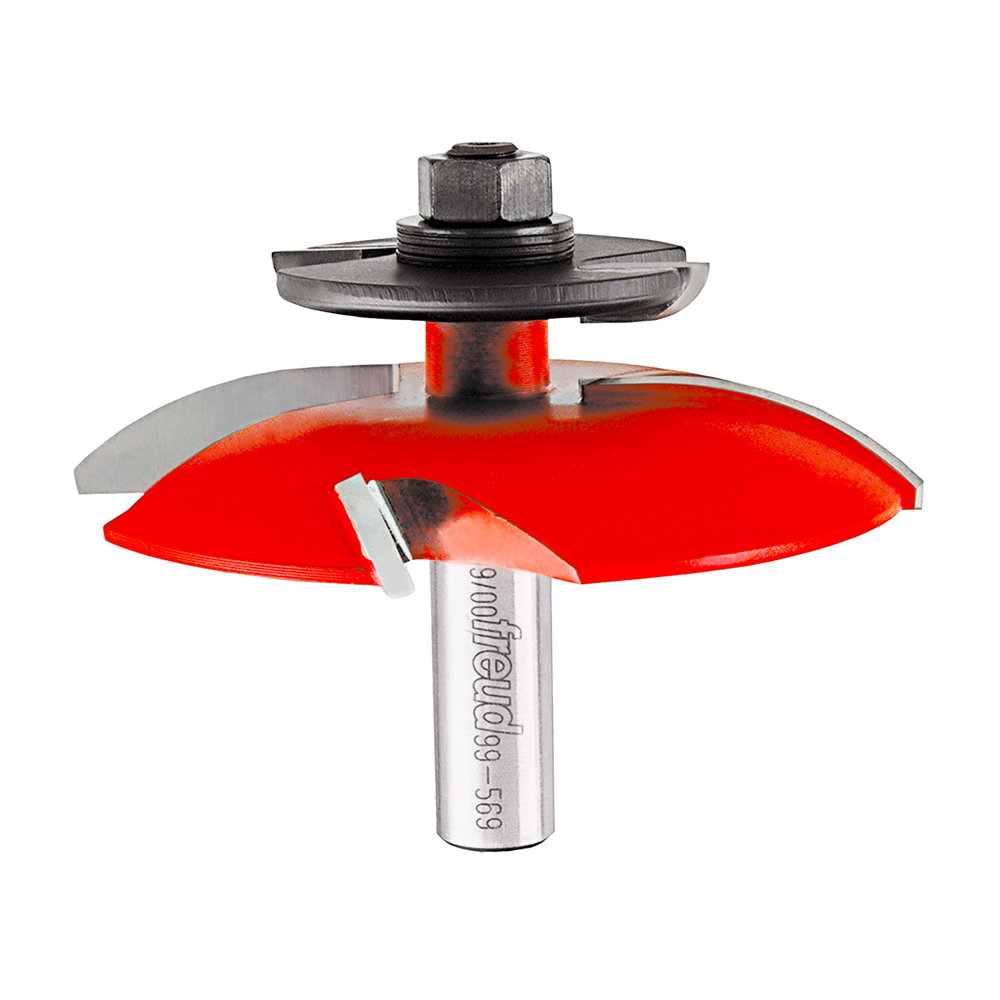

These Raised Panel Bits include a back cutter that routs a rabbet on the back of the door panel, resulting in a 3/4"-thick panel that sits flush with the doorframe for a professional, architecturally correct appearance. Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility. Exclusive Quadra-Cut design includes two cutters that shear upwards and two edges shearing downward to deliver a flawless finish. Use in table-mounted routers with fence only. Suitable for hardwood, softwood or composite panels.
Features:
- Bits include back cutters to rabbet the panel back: 3/4" panels sit flush with 3/4" frame
- Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors
- Cuts all composition materials, plywood's, hardwoods, and softwoods
- Use in table-mounted routers with fence only
- Freud Perma-SHIELD Coating
- Ideal For: Creating beautiful raised panels for cabinet doors or wall paneling
Technical Specifications:
- Number of Cutters: 4
- Max RPM: 12000\
- Carbide Height (H): 1"
- Overall Dia. (D): 3-1/2"
- Minor Height: 5/32"
- Overall Length: 3"
- Small Radius (R2): 3/16"
- Large Radius (R1): 1-1/2"
- Shank Dia.:1/2"
- Technologies: Quadra-Cut
