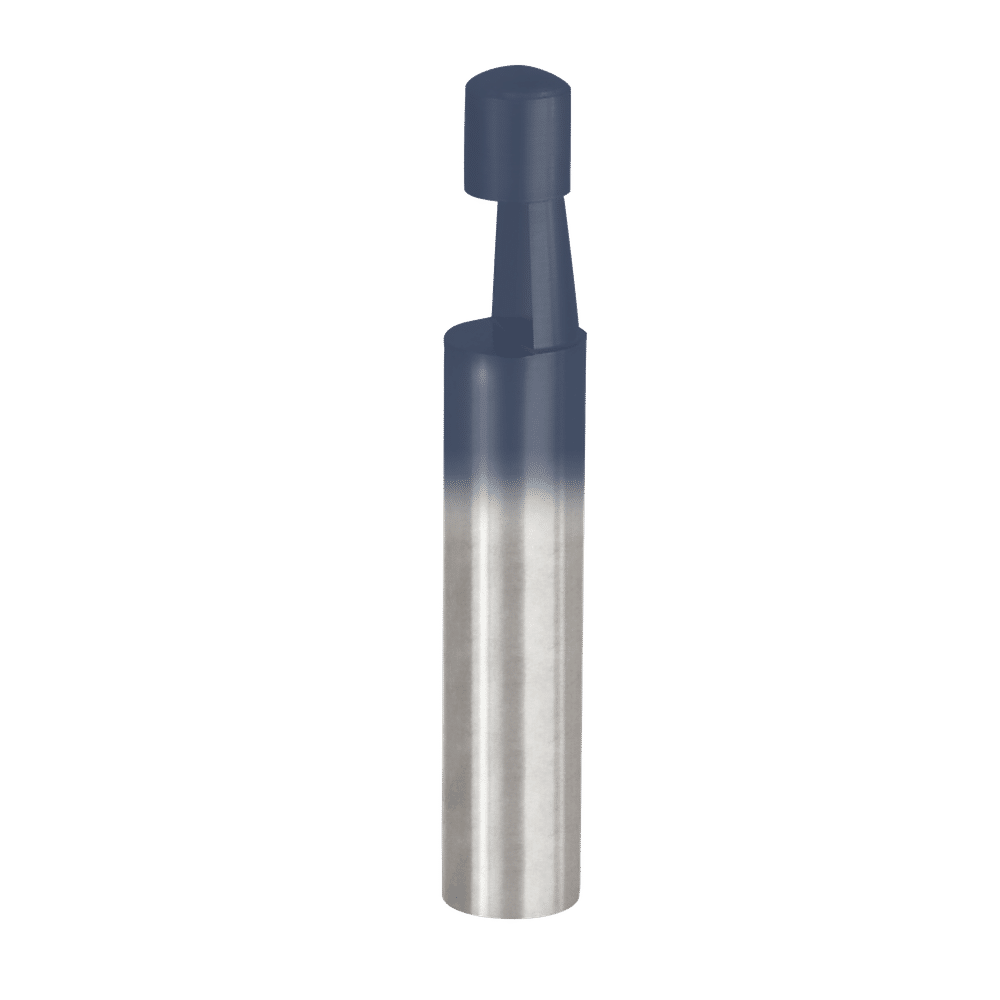

Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.
Features:
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Black I.C.E. + Freud TiCo Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Ideal For:
- Fast bevel trim of plastic laminate
Specifications:
- Number of Cutters: 2
- Max RPM: 24000
- Angle (d): 7°
- Bearing Dia. (B): 3/16"
- Carbide Height (h): 1/4"
- Overall Dia. (D): 1/4"
- Overall Length (H): 1-1/2"
- Shank Dia. (A): 1/4"
