Features:
- Clamping force up to 6,500 N
- Tipping is prevented through central positioning on the workpiece
- Special heat-resistant pressure plate, can be tilted by up to 35°
- Clamp can be fed through an opening in the workpiece/component
- Wide range of possible applications due to interchangeable sliding arm available in various different designs (see accessories)

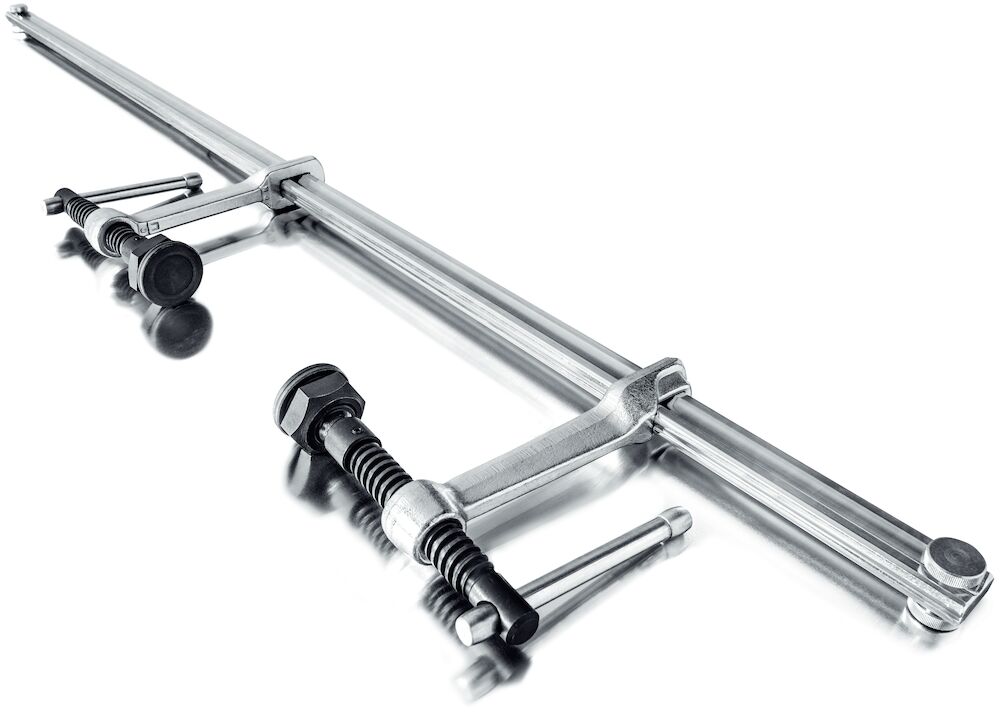

14" Variable High Performance Clamp Set:
- Clamping capacity:16"
- Throat depth: 4 3/4"
- Rail profile: 1 1/16 x 1/2"
- Clamping force: 1450lbs
- Approx. weight: 6.75lbs
39" Variable High Performance Clamp Set:
- Opening: 1000mm
- Throat depth: 120mm
- Spreading width: 340-1250mm
- Rail: 27x13mm
- Weight: 4.71kg
78" Variable High Performance Clamp Set:
- Opening: 2000mm
- Throat depth: 120mm
- Spreading width: 340-2250mm
- Rail: 27x13mm
- Weight: 6.5kg
