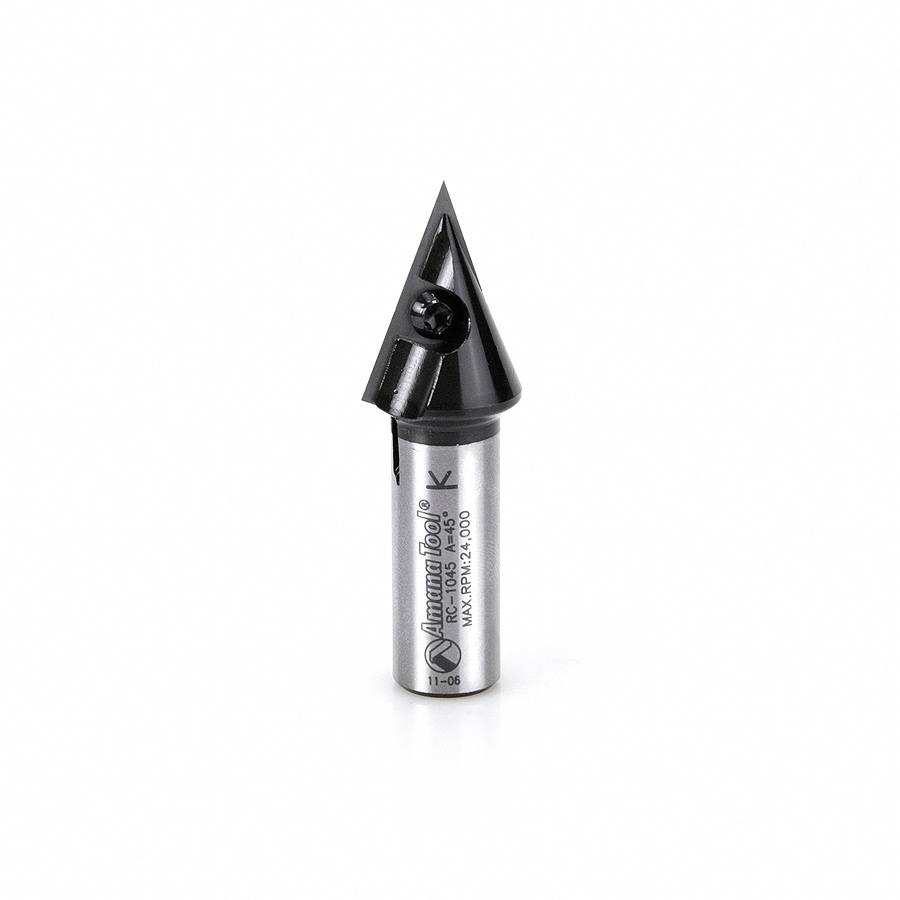

The innovative CNC tool design uses the highest-grade carbide insert knife. These industrial V-Groove insert router bits were especially designed for applications including: Miter folds - "create the perfect joint", Sign making and lettering. Note: Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation. When working with Xanita LightBoard panel (X-board X-board plus) we recommend using MDF knives for better results.
Specification:
- (a°) Angle : 45°
- a1° : 22.5°
- (D) Diameter : 13/16
- (B) Cutting Height : 1
- B1 : 1-1/16
- Cutting Edges : 1
- (d) Shank : 1/2
- Overall Length (L) : 2-3/8
- L1 : 1-3/8
- Max RPM : 24,000
- Flutes : 1
- # of knives : 1
Excellent For Cutting:
- Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber (Engraving Only)
- Acrylic/Plastic
- Composites
- Composite Decking
- Epoxy (Epoxy Resins)
- Foam
- High Density Polyethylene (HDPE)
- Laminate
- Melamine
- MDF/HDF
- PVC
- Sign Board
- Solid Surface
- Veneered Plywood
- Wood
- Xanita Board
- 20lbs High Density Urethane
Advantages Of Insert Tooling:
- Long lasting insert knives provide superior smooth quality cuts every time
- Quick and precise replacements of dull knives
- Due to insert accuracy tool life is extended
- Insert tooling allows for harder grades of carbide
- Special carbide grades for special applications
- Cost effective solution compared to replacing brazed router bits
Warning :
- Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.
