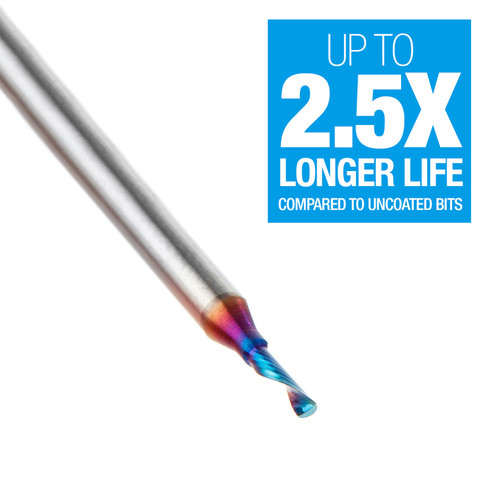

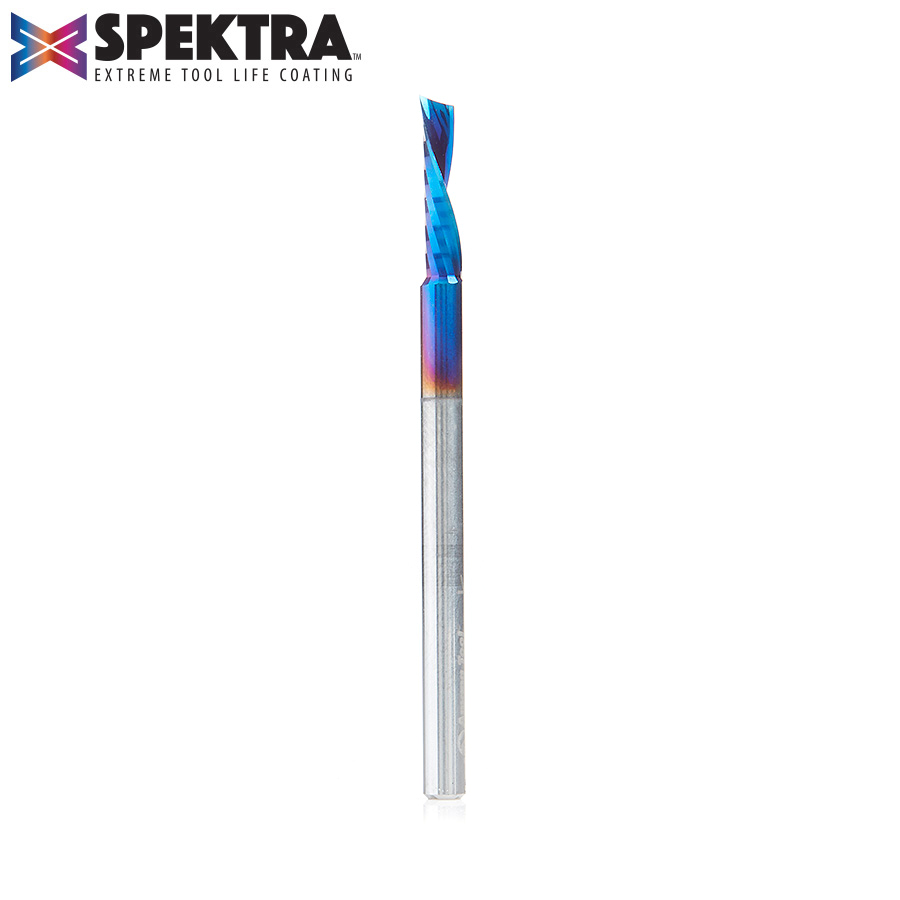

Amana AMA-5151XX Down Cut Router Bit 1/8in Shank

To be used only on CNC machines and routers with automatic feeding. Produce super clean, smooth cuts especially in acrylic materials (Plexiglas Lucite) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Left hand helix left hand cut. Amana's Spektra bits feature a nACo nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

Features:

• A soft plastic cardboard made with super soft super flexible PVC.
• Gatorfoam Foam Board a polystyrene foam board bonded between two layers of Luxcell wood-fiber veneer.
• Decorative high-pressure compact laminate (HPL) with an integral surface.
• Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan.
• nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
• Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
• Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
• nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.
• Benefits of Mirror-Finish: Razor sharp cutting edge, Effortless chip removal, Helps prevent chip re-welding, Extends tool life, Exceptional cut quality, Dissipates heat well and prevents melting

Specifications:

• Direction: Down-Cut
• (d) Shank:1/8
• Overall Length (L):2
• Type: nACo Ceramic Coating
• Flutes: 1

Excellent for cutting:

• Plastic/Acrylic
• Acetal and Nylon
• Acrylic Stone
• Acrylonitrile Butadiene Styrene (ABS)
• Aluminum Composite Material (ACM)
• Alupanel
• Corian
• Cork
• Coroplast
• Corrugated Plastics such as Correx Boards and Polypropylene
• Crosslinked Polyethylene (XPE, PEX, XLPE)
• Delrin
• Dibond
• Epoxy
• Extruded Acrylic
• Foam Board
• Fomex
• Gatorfoam
• Hard Plastic
• High Density Polyethylene (HDPE)
• High Density Urethane (HDU Board)
• High Impact Polystyrene (HIPS)
• High Impact Polystyrene (HIPS) for digital printing
• High Pressure Laminates (HPL)
• Hydroxy-Terminated Polyether (HTPE)
• King ColorCore The Multi-Color Engravable Polymer Sheet.
• Laminate
• Low Density Polyethylene (LDPE)
• LubX
• Lucite
• Mechanical/Engineered Plastics
• Perspex Cast Acrylic Sheet
• Plexiglas
• Poly (methyl methacrylate) (PMMA)
• Polycarbonate (Lexan)†
• Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
• Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
• Polystyrene (PS)
• PVC
• Sign Foam
• Sintra PVC
• Solid Surface
• StarBoard (King StarBoard 'R') High Density Polyethylene Sheet (HDPE)
• Teflon
• Thermoplastic Polyolefin (TPO)
• Trespa Meteon
• Ultra High Molecular Weight Polyethylene (UHMWPE)
• Urethane
• Vinyl Flooring
• Wood

1/16in Shank Down Cut Router Bit:

• (D) Diameter: 1/16
• (B) Cutting Height: 1/4

1/8in Shank Down Cut Router Bit:

• (D) Diameter: 1/8
• (B) Cutting Height: 1/2
