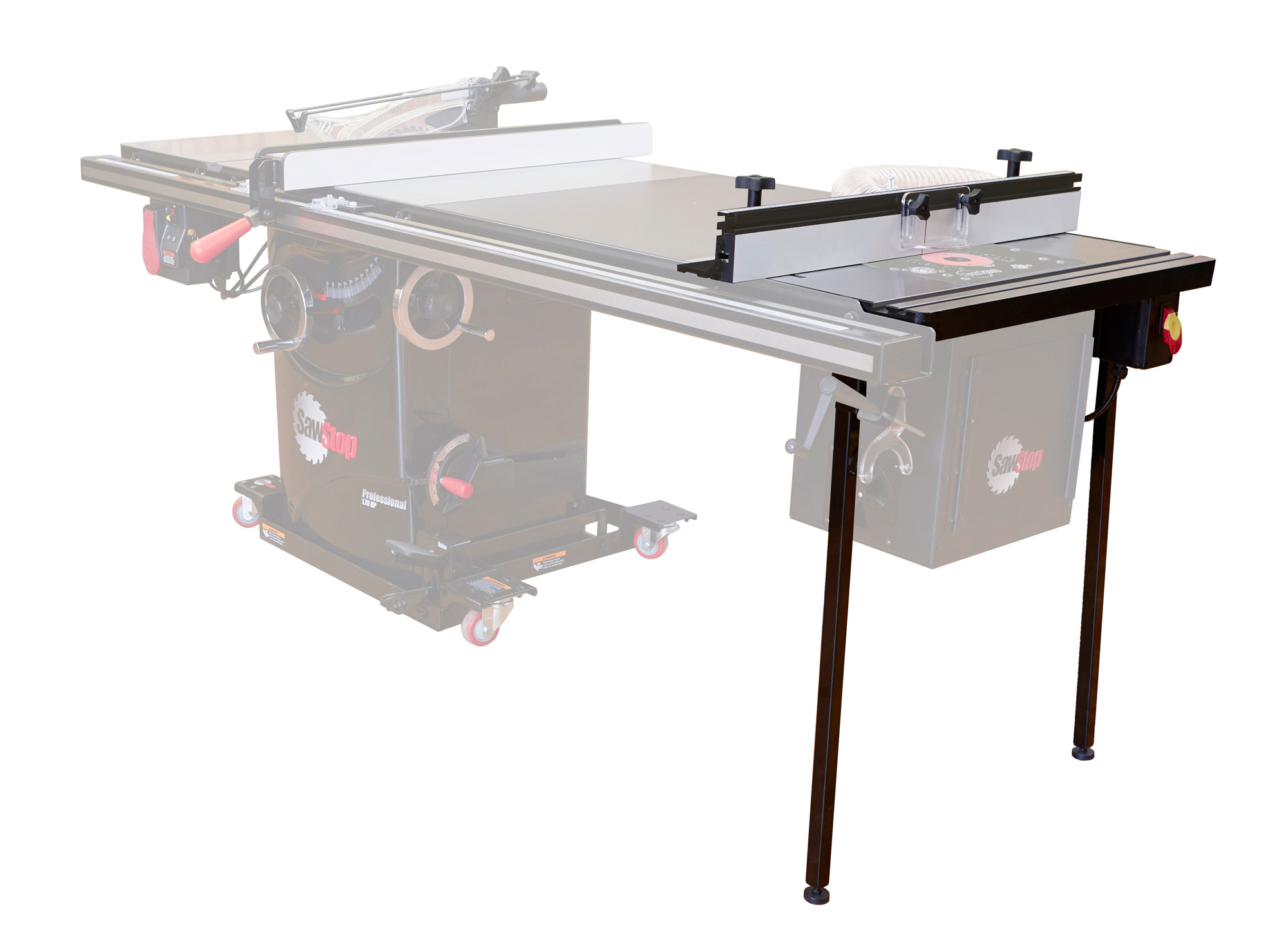

Optimize your SawStop saw with this In-Line Router Table Assembly.
On a Professional Cabinet Saw, install this beautiful Cast Iron Table between the rails in place of your extension table.
On a Professional or Contractor Saw, install to the left of the saw.
Features
- Cast iron table dimensions: 27 x 16in
- Router table opening: 11 3/4 x 9 1/4in
- 27in fence assembly dimensions: 30 3/4in L x 3 1/2in H x 4in W
- Max fence travel: 5 1/2in
- Heavy Duty Construction-The 27 x 16in table is made from solid cast iron, and the two support legs secure firmly to the underside of the table to ensure a solid work space.
- Versatility-Depending on your shop configuration, there are two different mounting options. Save space by mounting the table in-line between the rails and replacing the existing extension table. For the 36in Professional Cabinet Saw, an optional cast iron filler table is available creating a full length cast iron table. The router table can also be mounted to the left of the saw, attaching to the left cast iron wing. The left mount setup is required for use with the Contractor Saw.
Specifications
- Cast Iron Table: 27 x 16in
- Router Table Opening: 11 3/4 x 9 1/4in
- Max Fence Travel: 5 1/2in
- Front T-slot to Arbor Center: 6 1/2in
- Width of Front Miter T-slot: 3/8in at top, 1/2in at bottom
- Rear T-slot to Arbor Center: 5in
- Width of Rear Miter T-slot: 3/4in at top, 1in at bottom, 3/8in deep
- RT-F27 (fence) Length: 35 3/4in
- RT-F27 (fence) Height: 3 1/2in
- RT-F27 (fence) Depth:4in
Included
- RT-C27 27in Cast Iron Table
- RT-F27 27in Fence Assembly
- RT-PSW Power Switch
- RT-ST2 Support Legs
- Installation Hardware
