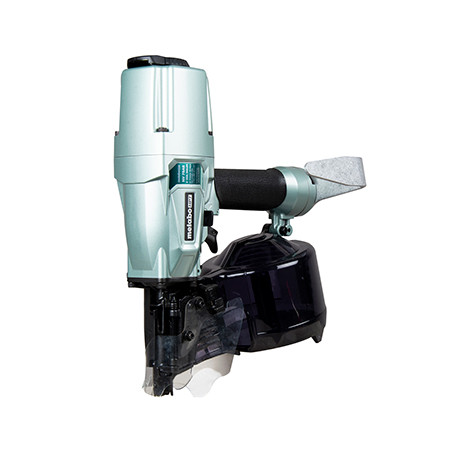

The 3in Siding/Light Framing Coil Nailer (NV75A5) bridges the gap between framing and siding on the jobsite. It has the power to frame and the precision and convenient features needed for siding work. The capability to drive up to 3 x 0.131in fasteners, and adjustable depth of drive make it the perfect tool for sheathing applications. Its light weight (5.7 lbs), flexibility to accept wire and plastic collated nails, no mar nose cap, and selective actuation give it the convenience needed for siding applications.
Additional features like the side-load tilt bottom magazine, 360º adjustable air deflector, aluminum rafter hook, and plastic shield make the NV75A5 the tool of choice for any framing and siding crews!
Features
- Accepts 16º wire coil nails from 1-3/4 - 3in and 15º plastic coil nails from 1-3/4 - 2-1/4in
- Only 5.7 lbs for easy maneuverability
- Allows for quick changes between sequential and contact nailing with the flip of a switch
- Side load, tilt bottom magazine for fast and easy reloads
- Depth adjustment to countersink or flush drive into a variety of materials
- No mar nose cap protects material from accidental marks
- Adjustable air deflector directs the air exhaust in any direction
Includes
- Aluminum Rafter Hook (889661M)
- No Mar Nose Cap (883106)
- Safety Glasses (875769)
Specifications
- Nail Length (Plastic Collated): 1-3/4 - 2-1/4in
- Nail Length (Wire Collated): 1-3/4 - 3in
- Nail Diameter (Wire Collated): .099 - .131in
- Nail Diameter (Plastic Collated): .090 - .099in
- Actuation Selective: (Sequential/Contact)
- Magazine Angle 16° Wire - 15° Plastic
- Magazine Loading Side Load - Tilt Bottom
- Nail Capacity: 200-300
- Operating Pressure: 70-120 PSI
- Dry-fire Lockout: No
- Depth Adjustment: Tool-less
- Adjustable Exhaust Port: Yes
- Jam Clearing: Open Nose Design
- Rubber Grip: Yes
- Dimensions (LxWxH): 10-11/16 x 5-3/16 x 13-3/8in
- Weight: 5.7lbs
