Use with HR001G or HR003G 40V MAX XGT Li-Ion BL 1-1/8" SDS-PLUS Rotary Hammers

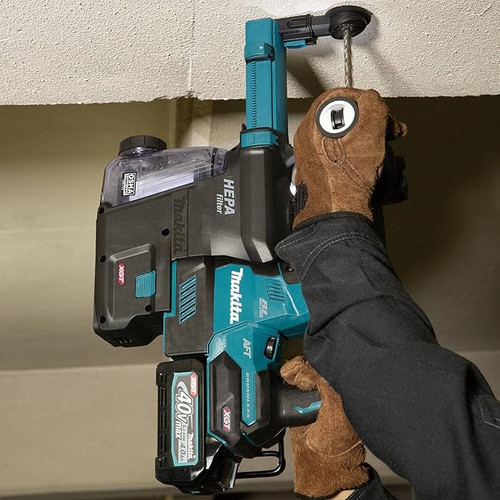

The Dust Extractor Attachment with HEPA Filter Cleaning Mechanism (DX12) is for use with the 40V max XGT Brushless 1-1/8" AVT Rotary Hammer (HR001G or HR003G). The attachment features a HEPA filter engineered to capture 99.97% of dust particles (size .3 microns and larger) for improved dust collection and OSHA Table 1 compliance. It is powered by a separate motor allowing the rotary hammer to consistently maintain peak drilling performance. The high-capacity dust container is transparent and provides an accurate level indicator of collected material. The container captures concrete dust during drilling, activated by the tool, and provides a 3-second delay to help capture remaining dust. With a quick release, the dust container can be easily detached from the dust collection attachment when needed.
Features:

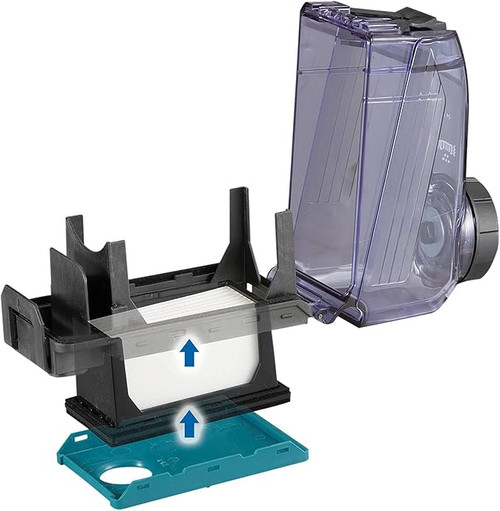

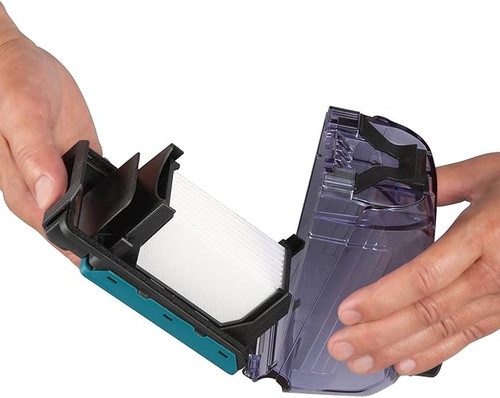

- OSHA Table 1 compliant on-board dust extractor includes a filter cleaning mechanism designed to help maintain optimum suction efficiency
- Extractor is powered by separate motor allowing the rotary hammer to consistently maintain peak drilling performance
- Extractor is automatically activated by the tool's power trigger and provides a delayed stop to capture any remaining dust
- Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
- Two stage extractor extension allows drilling up to 3-1/2" and maximum 7-1/2" deep; up to 1-1/8" diameter holes
- Depth stop adjustment allows for setting the accurate drilling depth

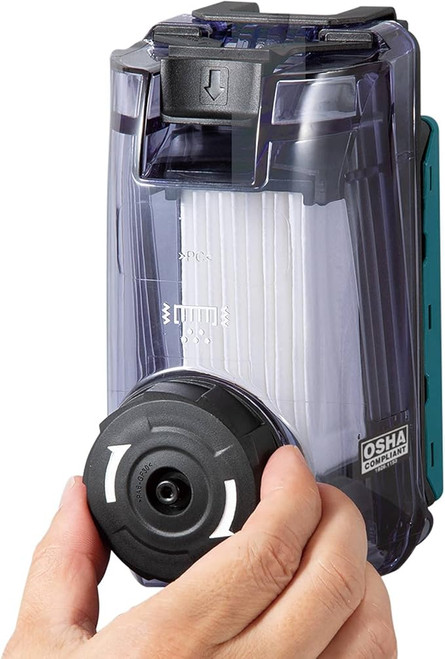

- Transparent dust container provides needed visibility in determining container fullness

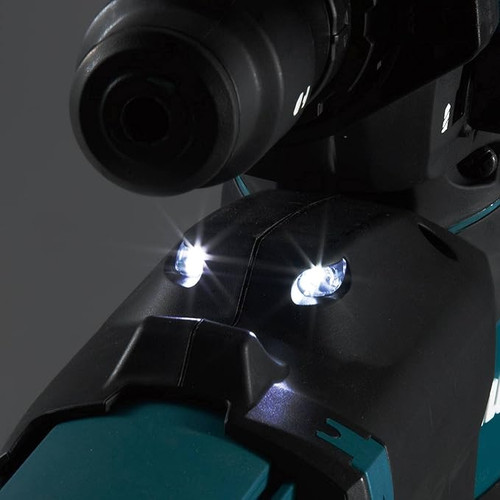

- Built-in dual L.E.D. light with an independent on/off illuminates the work area
- Compatible with Makita 40V max XGT Rotary Hammer model GRH01
- Dust Management: OSHA T1 compliant dust extractor includes a filter cleaning mechanism to maintain suction efficiency
- Performance: Extractor is powered by separate motor allowing the rotary hammer to maintain peak performance
- Efficiency: Efficient HEPA filtration system captures 99.97% of particulates .3 microns and larger
- Capacity: Two stage extension allows drilling at 3-1/2" and max. 7-1/2" deep; up to 1-1/8" diameter holes
Specifications:
- Auto shut off time : After 2 seconds
- HEPA filter : Yes
- Equipped Filter Efficiency : 99.97% of .3 microns
- Adjustable Depth Stops : Yes
- Maximum Hole Diameter (in.) : 1.125"
- Max. Hole Depth : 7-1/2"
- Container Hole Count Capacity : 25 holes of dimension 5/8"x2"
- Filter Life (Approx. container fillings) : 200
- Container Capacity : 10.14 oz.
- Overall Length : 22-3/4"
- Net Weight : 3.5 lbs.
