Features
- Sheer power and high torque take on a whole new meaning with the new high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.
- The saw´s handling and behavior are refined by smooth starting, constant speeds under load, speed reduction and overload protection.
- The exemplary design of the MKS 130 Ec embraces extremely rugged and high-quality materials, including the lightweight magnesium die-cast housing and impact-resistant, fiber glass-reinforced plastic components. Most of the surfaces that are conventionally exposed to dust or chips have been eliminated.
- The MKS 130 Ec satisfies all the requirements that arise in traditional and modern carpentry: cross and rip cuts in wood or insulating materials are easily executed thanks to the availability of appropriate accessories.
- Nothing is left to chance as far as safety is concerned: the MKS 130 Ec features a motor brake and a self-closing saw guard. Among the other safety features, the on/off
- The desired cutting depth is easily set with a control wheel and highly legible scale. The nuisance of doublechecking dimensions is a thing of the past.
- Ergonomic, ideally positioned handles offer supreme operating ease and allow the work to be performed efficiently in every situation.
- Continuously variable speed control for individual requirements and applications.
Specifications
- Cutting depth at 0° off track: 1-15/16 to 5-1/16in

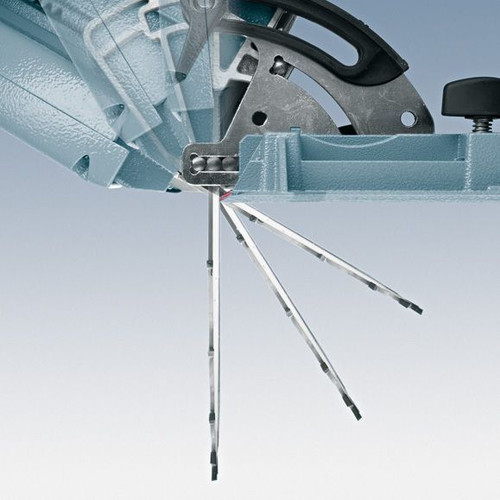

- Cutting depth at 45° off track: 1-7/16 to 3-11/16in
- Cutting depth at 60° off track: 15/16 to 2-1/2in
- Cutting depth at 0° on track: 1-11/16 to 4-7/8in
- Tilt range: 0 to 60°
- Saw blade diameter: 12-15/16in
- Nominal speed - no load: 1,000 to 2,000 rpm
- Motor: 120 V or 240 V / 60 Hz
- Current: 20.5 A
- Weight: 31 lbs.
Includes
- 24T Universal Carbide Blade 092571
- Parallel Guide Fence 203853
- Allen Key 093081
- 32.8 ft Cord
