Take the guesswork—and your tape measure and pencil—out of cutting wood to length. Our Precision Trak and Stop Kit allows you to turn a miter saw into a precise cutting system. Simply position the stop at the dimensions you'd like to cut using the precision lens cursor, place the board against the stop, and cut to that exact length every time. You build the support wings out of plywood (or another sheet material), and then add the Trak. Outfitting your saw to cut perfectly-sized workpieces couldn’t be simpler!
The most common setup for the Precision Trak and Stop Kit is with a miter saw, but many woodworkers find it handy to add to their radial arm saw or drill press. No matter where you use the Precision Trak and Stop Kit, you’ll find it much faster and accurate than any other wood-cutting method.
Designed to stand up to the rigors of repetitive cuts in an industrial environment, the Production Stop drops onto the top of the fence and features dual lens cursors for convenient use on either side of the blade.
The Swing Stop gives you a precise measurement when you need it and swings out of the way when you don’t Simply push a board into the curved face of the stop to push it temporarily up out of the way, or swing the stop up. Like the Production Stop, it features a Precision Lens Cursor for fast, pinpoint positioning.
Build a simple plywood or MDF box to match the height of your saw, and then add a back fence that reaches 21/4in (57mm) above the saw table for the stops to glide upon. Instructions and mounting hardware for the Trak are included.
Incredibly strong and built-to-last, our anodized-aluminum Trak features an L-shaped base that makes alignment and mounting to any 3/4in (19mm) thick board a snap. The Trak has a groove along the top to accept the included self-adhesive measuring tapes. The Trak is split into four 2ft (610mm) long sections, giving you setup options: 4ft (1219mm) on each side of the saw, 2ft (610mm) on one side and 6ft (1829mm) on the other, or all 8ft (2438mm) on one side.
Features
- Turn your miter saw into a precise cutting system
- Adjustable stops position your workpiece for repeatable, reliable results
- Precision Lens Cursor for fast, accurate positioning
- Production Stop and Swing Stop provide great results
- L-shaped base design makes alignment and mounting easy
- Includes 8ft (2438mm) of Trak in 2ft (610mm) long sections that can be used on the right or left side of the saw, or split between both sides
- 2 self-adhesive measuring tapes correctly measure cut lengths on both sides of the blade
Specifications
- Fence - Aircraft-grade aluminum
- Finish - Anodized for easy clean-up
- Cutting Capacity - 96in (2438mm) minimum
- Length - (4) 2ft (610mm) sections for 8ft (2438mm) of Trak length
- Measuring Tape - (1) 12ft (3658mm) left-to-right reading and (1) 12ft (3658mm) right-to-left reading

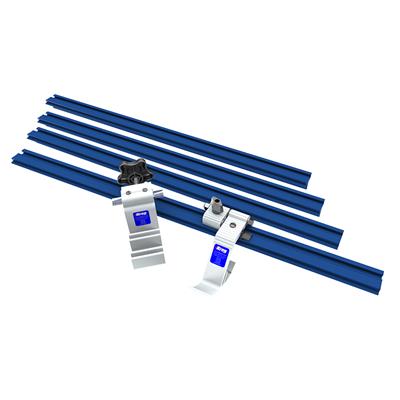

Includes
- (4) 2ft (610mm) pieces of Top Trak
- Swing Stop
- Production Stop
- (1) 12ft (3657mm) L-to-R reading self-adhesive tape
- (1) 12ft (3657mm) R-to-L reading self-adhesive tape
