Gearwrench 1/2" drive sockets are manufactured from alloy steel for maximum durability and strength. Gearwrench's off corner loading design reduces fastener rounding and the chamfered opening help guide the socket on to fasteners. Gearwrench's sockets feature a double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets

Features:

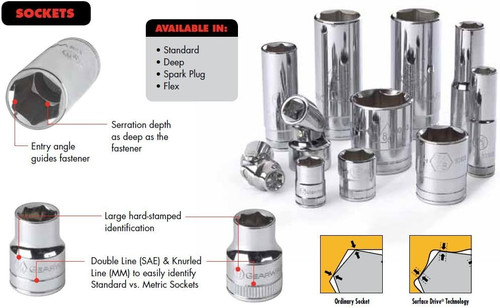

• Off-corner loading design reduces fastener rounding
• Chamfered opening quickly guides fasteners into socket
• Serration depth inside the socket is as deep as the fastener hold it in the correct position
• Hard stamped size markings
• Double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets
• Bright, full polish chrome finish easily wipes clean and resists corrosion
• Meets or exceeds ASME specifications
• Prop 65: WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Specifications:

• ASME Specification: B107.5M
• Overall Length: 3.031 in
• Drive Tang Size: 1/2 in
• Knurled: Yes
• Type: Socket
• Packaging: Carded
• Warranty: Full Lifetime
• Length Format: Deep
• Finish: Full Polish Chrome
• Magnetic: No
• SAE/Metric/Torx: Metric
• Drive Type: 6 Point
• Material: Alloy Steel
• Dim. F: Length to Shoulder: 1.496 in

10mm Standard Socket:

• Dim. A: Drive End: 0.866 in
• Dim. B: Wrench End: 0.602 in
• Dim. D: Bolt Clearance: 0.374 in
• Dim. E: Wrench Depth: 0.201 in
• Size: 10mm
• Weight (Catalog): 0.23 lbs.
• Socket Size (mm): 10mm

11mm Standard Socket:

• Dim. A: Drive End: 0.866 in
• Dim. B: Wrench End: 0.650 in
• Dim. D: Bolt Clearance: 0.394 in
• Dim. E: Wrench Depth: 0.236 in
• Size: 11mm
• Weight (Catalog): 0.23 lbs.
• Socket Size (mm): 11mm

12mm Standard Socket:

• Dim. A: Drive End: 0.866 in
• Dim. B: Wrench End: 0.701 in
• Dim. D: Bolt Clearance: 0.433 in
• Dim. E: Wrench Depth: 0.260 in
• Size: 12mm
• Weight (Catalog): 0.24 lbs.
• Socket Size (mm): 12mm

13mm Standard Socket:

• Dim. A: Drive End: 0.866 in
• Dim. B: Wrench End: 0.748 in
• Dim. D: Bolt Clearance: 0.453 in
• Dim. E: Wrench Depth: 0.287 in
• Size: 13mm
• Weight (Catalog): 0.25 lbs.
• Socket Size (mm): 13mm

14mm Standard Socket:

• Dim. A: Drive End: 0.866 in
• Dim. B: Wrench End: 0.799 in
• Dim. D: Bolt Clearance: 0.453 in
• Dim. E: Wrench Depth: 0.350 in
• Size: 14mm
• Weight (Catalog): 0.25 lbs.
• Socket Size (mm): 14mm

15mm Standard Socket:

• Dim. A: Drive End: 0.866 in
• Dim. B: Wrench End: 0.843 in
• Dim. D: Bolt Clearance: 0.453 in
• Dim. E: Wrench Depth: 0.350 in
• Size: 15mm
• Weight (Catalog): 0.25 lbs.
• Socket Size (mm): 15mm

16mm Standard Socket:

• Dim. A: Drive End: 0.866 in
• Dim. B: Wrench End: 0.850 in
• Dim. D: Bolt Clearance: 0.453 in
• Dim. E: Wrench Depth: 0.398 in
• Size: 16mm
• Weight (Catalog): 0.29 lbs.
• Socket Size (mm): 16mm

17mm Standard Socket:

• Dim. A: Drive End: 0.937 in
• Dim. B: Wrench End: 0.937 in
• Dim. D: Bolt Clearance: 0.453 in
• Dim. E: Wrench Depth: 0.398 in
• Size: 17mm
• Weight (Catalog): 0.30 lbs.
• Socket Size (mm): 17mm

18mm Standard Socket:

• Dim. A: Drive End: 0.976 in
• Dim. B: Wrench End: 0.976 in
• Dim. D: Bolt Clearance: 0.453 in
• Dim. E: Wrench Depth: 0.421 in
• Size: 18mm
• Weight (Catalog): 0.33 lbs.
• Socket Size (mm): 18mm

19mm Standard Socket:

• Dim. A: Drive End: 1.016 in
• Dim. B: Wrench End: 1.016 in
• Dim. D: Bolt Clearance: 0.453 in
• Dim. E: Wrench Depth: 0.457 in
• Size: 19mm
• Weight (Catalog): 0.34 lbs.
• Socket Size (mm): 19mm
