Gearwrench 1/2" drive sockets are manufactured from alloy steel for maximum durability and strength. Gearwrench's off corner loading design reduces fastener rounding and the chamfered opening help guide the socket on to fasteners. GEARWRENCH's sockets feature a double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets.
Features:
- Off-corner loading design reduces fastener rounding
- Chamfered opening quickly guides fasteners into socket
- Serration depth inside the socket is as deep as the fastener hold it in the correct position
- Hard stamped size markings
- Double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets
- Bright, full polish chrome finish easily wipes clean and resists corrosion
- Meets or exceeds ASME specifications
- Prop 65: Warning: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Specifications:
- ASME Specification: B107.1
- US Federal Specification: GGG-W-641 E
- Knurled: No
- Type: Socket
- Warranty: Full Lifetime
- Length Format: Deep
- Finish: Full Polish Chrome
- Drive Tang Size: 1/2 in
- Magnetic: No
- SAE/Metric/Torx: SAE
- Drive Type: 6 Point
- Material: Alloy Steel
7/16in Standard Socket:
- Dim. A: Drive End: 0.866 in
- Dim. B: Wrench End: 0.669 in
- Dim. D: Bolt Clearance: 0.394 in
- Dim. F: Length to Shoulder: 1.496 in
- Overall Length: 3.031 in
- Weight (Catalog): 0.22 lbs.

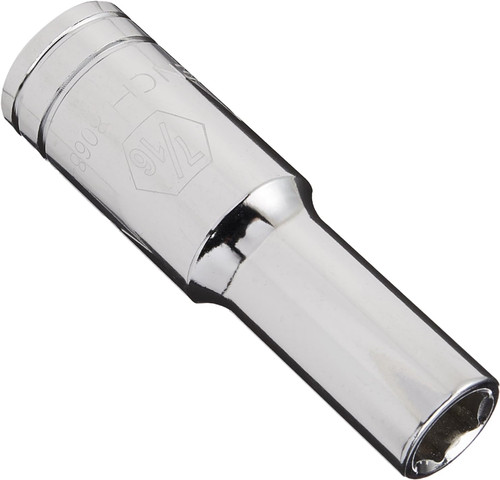

- Size: 7/16 in
- Socket Size (SAE): 7/16 in
1/2in Standard Socket:
- Dim. A: Drive End: 0.866 in
- Dim. B: Wrench End: 0.732 in
- Dim. D: Bolt Clearance: 0.453 in
- Dim. E: Wrench Depth: 0.287 in
- Dim. F: Length to Shoulder: 1.496 in
- Overall Length: 3.031 in
- Weight (Catalog): 0.24 lbs.
- Size: 1/2 in
- Socket Size (SAE): 1/2 in
9/16in Standard Socket:
- Dim. A: Drive End: 0.866 in
- Dim. B: Wrench End: 0.811 in
- Dim. D: Bolt Clearance: 0.453 in
- Dim. E: Wrench Depth: 0.350 in
- Dim. F: Length to Shoulder: 1.496 in
- Overall Length: 3.031 in
- Weight (Catalog): 0.27 lbs.
- Size: 9/16 in
- Socket Size (SAE): 9/16 in
5/8in Standard Socket:
- Dim. A: Drive End: 0.866 in
- Dim. B: Wrench End: 0.850 in
- Dim. D: Bolt Clearance: 0.453 in
- Dim. E: Wrench Depth: 0.398 in
- Dim. F: Length to Shoulder: 1.496 in
- Overall Length: 3.031 in
- Weight (Catalog): 0.27 lbs.
- Size: 5/8 in
- Socket Size (SAE): 5/8 in
3/4in Standard Socket:
- Dim. A: Drive End: 1.016 in
- Dim. B: Wrench End: 1.016 in
- Dim. D: Bolt Clearance: 0.453 in
- Dim. E: Wrench Depth: 0.457 in
- Dim. F: Length to Shoulder: 1.496 in
- Overall Length: 3.031 in
- Weight (Catalog): 0.38 lbs.

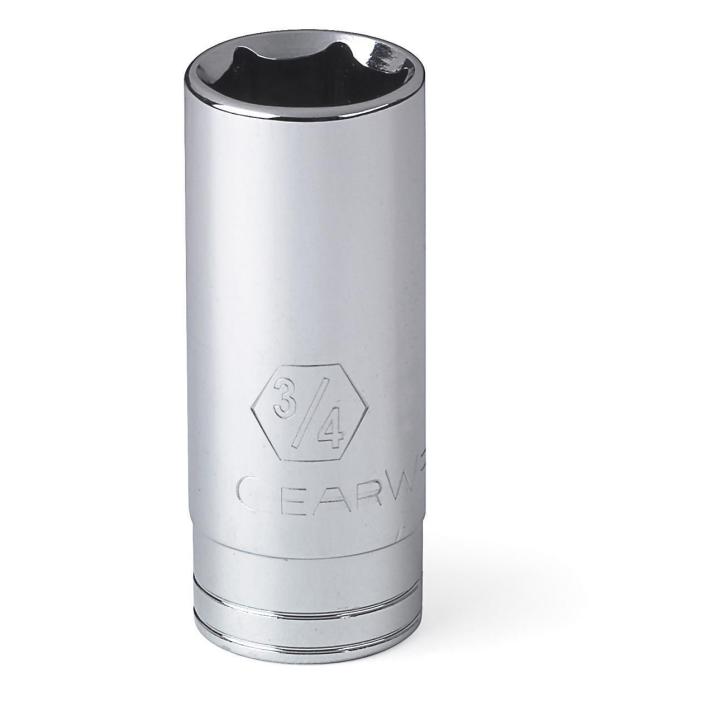

- Size: 3/4 in
- Socket Size (SAE): 3/4 in
13/16in Standard Socket:
- Dim. A: Drive End: 1.094 in
- Dim. B: Wrench End: 1.094 in
- Dim. D: Bolt Clearance: 0.453 in
- Dim. E: Wrench Depth: 0.480 in
- Dim. F: Length to Shoulder: 1.496 in
- Overall Length: 3.031 in
- Weight (Catalog): 0.42 lbs.
- Size: 13/16 in
- Socket Size (SAE): 13/16 in
7/8in Standard Socket:
- Dim. A: Drive End: 1.173 in
- Dim. B: Wrench End: 1.173 in
- Dim. D: Bolt Clearance: 0.453 in
- Dim. E: Wrench Depth: 0.520 in
- Dim. F: Length to Shoulder: 1.496 in
- Overall Length: 3.031 in
- Weight (Catalog): 0.51 lbs.
- Size: 7/8 in
- Socket Size (SAE): 7/8 in
15/16in Standard Socket:
- Dim. A: Drive End: 1.252 in
- Dim. B: Wrench End: 1.252 in
- Dim. D: Bolt Clearance: 0.453 in
- Dim. E: Wrench Depth: 0.567 in
- Dim. F: Length to Shoulder: 1.496 in
- Overall Length: 3.031 in
- Weight (Catalog): 0.57 lbs.
- Size: 15/16 in
- Socket Size (SAE): 15/16 in
1in Standard Socket:
- Dim. A: Drive End: 1.283 in
- Dim. B: Wrench End: 1.331 in
- Dim. D: Bolt Clearance: 0.453 in
- Dim. E: Wrench Depth: 0.457 in
- Dim. F: Length to Shoulder: 1.496 in
- Overall Length: 3.031 in
- Weight (Catalog): 0.80 lbs.
- Size: 1 in
- Socket Size (SAE): 1 in
1-1/16in Standard Socket:
- Dim. A: Drive End: 1.362 in
- Dim. B: Wrench End: 1.409 in
- Dim. D: Bolt Clearance: 0.453 in
- Dim. E: Wrench Depth: 0.457 in
- Dim. F: Length to Shoulder: 1.496 in
- Overall Length: 3.031 in
- Weight (Catalog): 0.90 lbs.
- Size: 1-1/16 in
- Socket Size (SAE): 1-1/16 in
1-1/8in Standard Socket:
- Dim. A: Drive End: 1.441 in
- Dim. B: Wrench End: 1.488 in
- Dim. D: Bolt Clearance: 0.453 in
- Dim. E: Wrench Depth: 0.457 in
- Dim. F: Length to Shoulder: 1.496 in
- Overall Length: 3.031 in
- Weight (Catalog): 0.99 lbs.

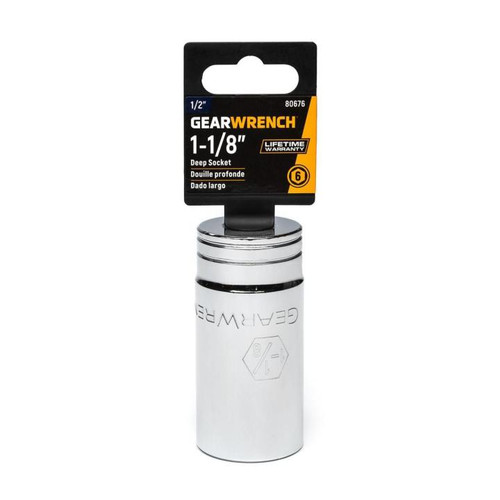

- Size: 1-1/8 in
- Socket Size (SAE): 1-1/8 in
1-1/4in Standard Socket:
- Dim. A: Drive End: 1.598 in
- Dim. B: Wrench End : 1.646 in
- Dim. D: Bolt Clearance: 0.453 in
- Overall Length: 3.031 in
- Weight (Catalog): 1.15 lbs.
- Size: 1-1/4 in
- Socket Size (SAE): 1-1/4 in
1-1/2in Standard Socket:
- Dim. A: Drive End: 1.913 in
- Dim. B: Wrench End: 1.961 in
- Dim. E: Wrench Depth: 1.220 in
- Overall Length: 1.969 in
- Weight (Catalog): 1.37 lbs.
- Size: 1-1/2 in
- Socket Size (SAE): 1-1/2 in
