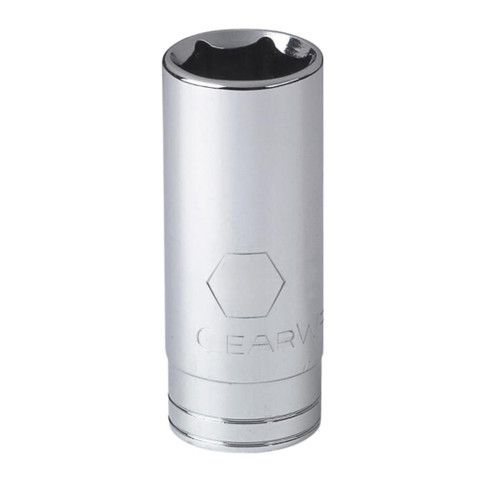

Gearwrench 3/8" drive sockets are manufactured from alloy steel for maximum durability and strength. Gearwrench's off corner loading design reduces fastener rounding and the chamfered opening help guide the socket on to fasteners. Gearwrench's sockets feature a double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets.
Features:
- Off-corner loading design reduces fastener rounding
- Chamfered opening quickly guides fasteners into socket
- Hard stamped size markings
- Double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets
- Bright, full polish chrome finish easily wipes clean and resists corrosion
- Meets or exceeds ASME specifications
- Prop 65: WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Specifications:
- ASME Specification: B107.1
- US Federal Specification: GGG-W-641 E
- Knurled: No
- Type: Socket
- Warranty: Full Lifetime
- Length Format: Deep
- Finish: Full Polish Chrome
- Overall Length: 2.5 in
- Drive Tang Size: 3/8 in
- Magnetic: No
- SAE/Metric/Torx: SAE
- Dim. F: Length to Shoulder: 1.142 in
1/4in Standard Socket:
- Dim. A: Drive End: 0.661 in
- Dim. B: Wrench End: 0.394 in
- Dim. D: Bolt Clearance: 0.217 in
- Dim. E: Wrench Depth: 0.157 in
- Weight (Catalog): 0.11 lbs.
- Socket Size (SAE): 1/4 in
- Size: 1/4 in
5/16in Standard Socket:
- Dim. A: Drive End: 0.661 in
- Dim. B: Wrench End: 0.461 in
- Dim. D: Bolt Clearance: 0.276 in
- Dim. E: Wrench Depth: 0.197 in
- Weight (Catalog): 0.11 lbs.
- Socket Size (SAE): 5/16 in
- Size: 5/16 in
3/8" Standard Socket:
- Dim. A: Drive End: 0.661 in
- Dim. B: Wrench End: 0.543 in
- Dim. D: Bolt Clearance: 0.335 in
- Dim. E: Wrench Depth: 0.201 in
- Weight (Catalog): 0.12 lbs.
- Socket Size (SAE): 3/8 in
- Size: 3/8 in
7/16in Standard Socket:
- Dim. A: Drive End: 0.661 in
- Dim. B: Wrench End: 0.630 in
- Dim. D: Bolt Clearance: 0.335 in
- Dim. E: Wrench Depth: 0.236 in
- Weight (Catalog): 0.13 lbs.
- Socket Size (SAE): 7/16 in
- Size: 7/16 in
1/2in Standard Socket:
- Dim. A: Drive End: 0.72 in
- Dim. B: Wrench End: 0.685 in
- Dim. D: Bolt Clearance: 0.335 in
- Dim. E: Wrench Depth: 0.287 in
- Weight (Catalog): 0.15 lbs.
- Socket Size (SAE): 1/2 in
- Size: 1/2 in
9/16in Standard Socket:
- Dim. A: Drive End: 0.78 in
- Dim. B: Wrench End: 0.780 in
- Dim. D: Bolt Clearance: 0.335 in
- Dim. E: Wrench Depth: 0.35 in
- Weight (Catalog): 0.18 lbs.
- Socket Size (SAE): 9/16 in
- Size: 9/16 in
5/8in Standard Socket:
- Dim. A: Drive End: 0.866 in
- Dim. B: Wrench End: 0.866 in
- Dim. D: Bolt Clearance: 0.335 in
- Dim. E: Wrench Depth: 0.398 in
- Weight (Catalog): 0.24 lbs.
- Socket Size (SAE): 5/8 in
- Size: 5/8 in
11/16in Standard Socket:
- Dim. A: Drive End: 0.937 in
- Dim. B: Wrench End: 0.937 in
- Dim. D: Bolt Clearance: 0.335 in
- Dim. E: Wrench Depth: 0.398 in
- Weight (Catalog): 0.29 lbs.
- Socket Size (SAE): 11/16 in
- Size: 11/16 in
3/4in Standard Socket:
- Dim. A: Drive End: 1.016 in
- Dim. B: Wrench End: 1.016 in
- Dim. D: Bolt Clearance: 0.335 in
- Dim. E: Wrench Depth: 0.457 in
- Weight (Catalog): 0.33 lbs.
- Socket Size (SAE): 3/4 in
- Size: 3/4 in
7/8in Standard Socket:
- Dim. A: Drive End: 1.173 in
- Dim. B: Wrench End: 1.173 in
- Dim. D: Bolt Clearance: 0.335 in
- Dim. E: Wrench Depth: 0.520 in
- Weight (Catalog): 0.44 lbs.
- Socket Size (SAE): 7/8 in
- Size: 7/8 in
15/16in Standard Socket:
- Dim. A: Drive End: 1.205 in
- Dim. B: Wrench End: 1.252 in
- Dim. D: Bolt Clearance: 0.335 in
- Dim. E: Wrench Depth: 0.567 in
- Weight (Catalog): 0.46 lbs.
- Socket Size (SAE): 15/16 in
- Size: 15/16 in
1in Standard Socket:
- Dim. A: Drive End: 1.272 in
- Dim. B: Wrench End: 1.319 in
- Dim. D: Bolt Clearance: 0.335 in
- Dim. E: Wrench Depth: 0.567 in
- Weight (Catalog): 0.52 lbs.
- Socket Size (SAE): 1 in
- Size: 1 in
