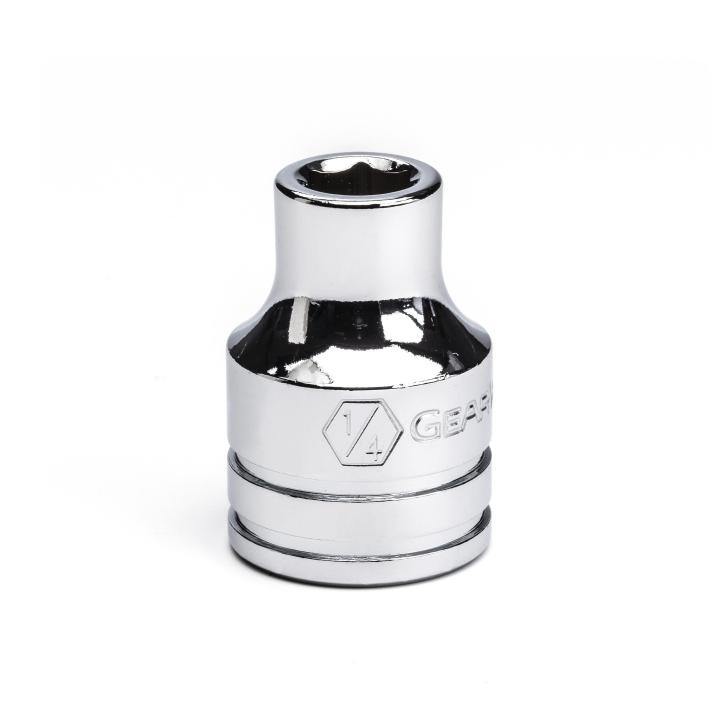

Gearwrench 3/8" drive sockets are manufactured from alloy steel for maximum durability and strength. Gearwrench's off corner loading design reduces fastener rounding and the chamfered opening help guide the socket on to fasteners. Gearwrench's sockets feature a double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets.
Features:
- Off-corner loading design reduces fastener rounding
- Chamfered opening quickly guides fasteners into socket
- Hard stamped size markings
- Double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets
- Bright, full polish chrome finish easily wipes clean and resists corrosion
- Meets or exceeds ASME specifications
- Prop 65: WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Specifications:
- ASME Specification: B107.1
- Drive Tang Size: 3/8 in
- Knurled: No
- Type: Socket
- Warranty: Full Lifetime
- Length Format: Standard
- Finish: Full Polish Chrome
- Magnetic: No
- SAE/Metric/Torx: SAE
- Drive Type: 6 Point
- Material: Alloy Steel
- Dim. F: Length to Shoulder: 0.453 in
1/4in Standard Socket:
- Dim. A: Drive End: 0.677 in
- Dim. B: Wrench End: 0.394 in
- Dim. D: Bolt Clearance: 0.197 in
- Dim. E: Wrench Depth: 0.295 in
- Overall Length: 0.984 in
- Weight (Catalog): 0.04 lbs.
- Socket Size (SAE): 1/4 in
- Size: 1/4 in
5/16in Standard Socket:
- Dim. A: Drive End: 0.677 in
- Dim. B: Wrench End: 0.461 in
- Dim. D: Bolt Clearance: 0.283 in
- Dim. E: Wrench Depth: 0.295 in
- Overall Length: 0.984 in
- Weight (Catalog): 0.04 lbs.
- Socket Size (SAE): 5/16 in
- Size: 5/16 in
3/8in Standard Socket:
- Dim. A: Drive End: 0.677 in
- Dim. B: Wrench End: 0.543 in
- Dim. D: Bolt Clearance: 0.283 in
- Dim. E: Wrench Depth: 0.295 in
- Overall Length: 0.984 in
- Weight (Catalog): 0.04 lbs.
- Socket Size (mm): 3/8 in
- Size: 3/8 in
7/16in Standard Socket:
- Dim. A: Drive End: 0.677 in
- Dim. B: Wrench End: 0.630 in
- Dim. D: Bolt Clearance: 0.354 in
- Dim. E: Wrench Depth: 0.295 in
- Overall Length: 0.984 in
- Weight (Catalog): 0.04 lbs.
- Socket Size (SAE): 7/16 in
- Size: 7/16 in
1/2in Standard Socket:
- Dim. A: Drive End: 0.705 in
- Dim. B: Wrench End: 0.685 in
- Dim. D: Bolt Clearance: 0.354 in
- Dim. E: Wrench Depth: 0.295 in
- Overall Length: 0.984 in
- Weight (Catalog): 0.07 lbs.
- Socket Size (SAE): 1/2 in
- Size: 1/2 in
9/16in Standard Socket:
- Dim. A: Drive End: 0.776 in
- Dim. B: Wrench End: 0.776 in
- Dim. D: Bolt Clearance: 0.354 in
- Dim. E: Wrench Depth: 0.492 in
- Overall Length: 0.984 in
- Weight (Catalog): 0.07 lbs.
- Socket Size (SAE): 9/16 in
- Size: 9/16 in
11/16in Standard Socket:
- Dim. A: Drive End: 0.941 in
- Dim. B: Wrench End: 0.941 in
- Dim. D: Bolt Clearance: 0.354 in
- Dim. E: Wrench Depth: 0.492 in
- Overall Length: 0.984 in
- Weight (Catalog): 0.011 lbs.
- Socket Size (SAE): 11/16 in
- Size: 11/16 in
3/4in Standard Socket:
- Dim. A: Drive End: 1.020 in
- Dim. B: Wrench End: 1.020 in
- Dim. D: Bolt Clearance: 0.354 in
- Dim. E: Wrench Depth: 0.492 in
- Overall Length: 0.984 in
- Weight (Catalog): 0.13 lbs.
- Socket Size (SAE): 3/4 in
- Size: 3/4 in
7/8in Standard Socket:
- Dim. A: Drive End: 1.169 in
- Dim. B: Wrench End: 1.169 in
- Dim. D: Bolt Clearance: 0.354 in
- Dim. E: Wrench Depth: 0.591 in
- Overall Length: 1,102 in
- Weight (Catalog): 0.20 lbs.
- Socket Size (SAE): 7/8 in
- Size: 7/8 in
15/16in Standard Socket:
- Dim. A: Drive End: 1.256 in
- Dim. B: Wrench End: 1.256 in
- Dim. D: Bolt Clearance: 0.354 in
- Dim. E: Wrench Depth: 0.591 in
- Overall Length: 1.161 in
- Weight (Catalog): 0.24 lbs.
- Socket Size (SAE): 15/16 in
- Size: 15/16 in
1in Standard Socket:
- Dim. A: Drive End: 1.335 in
- Dim. B: Wrench End: 1.335 in
- Dim. D: Bolt Clearance: 0.354 in
- Dim. E: Wrench Depth: 0.709 in
- Overall Length: 1.319 in
- Weight (Catalog): 0.29 lbs.
- Socket Size (SAE): 1 in
- Size: 1 in
