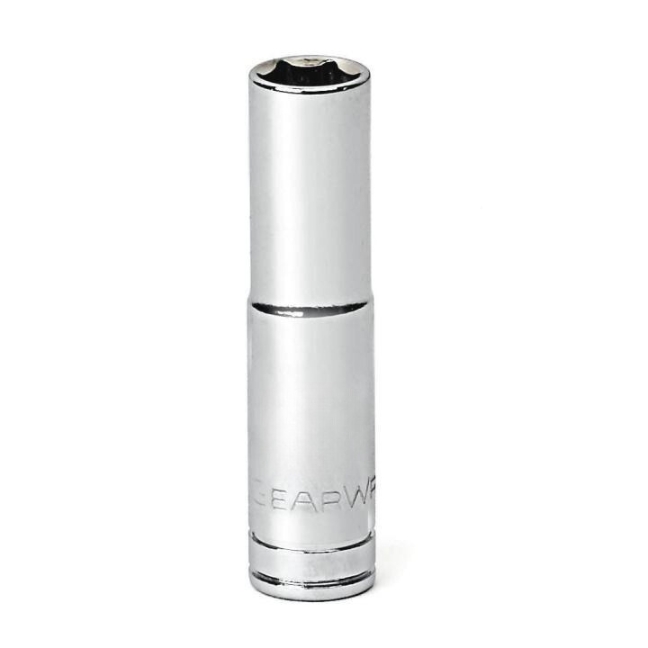

Gearwrench 1/4" drive sockets are manufactured from alloy steel for maximum durability and strength. Gearwrench's off corner loading design reduces fastener rounding and the chamfered opening help guide the socket on to fasteners. Gearwrench's sockets feature a double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets.

Features:

• Off-corner loading design reduces fastener rounding
• Chamfered opening quickly guides fasteners into socket
• Serration depth inside the socket is as deep as the fastener hold it in the correct position
• Hard stamped size markings
• Double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets
• Bright, full polish chrome finish easily wipes clean and resists corrosion
• Meets or exceeds ASME specifications
• Prop 65: WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Specifications:

• ASME Specification: B107.1
• Overall Length: 1.929 in
• Drive Tang Size: 1/4 in
• Knurled: No
• Type: Socket
• Warranty: Full Lifetime
• Length Format: Deep
• Finish: Full Polish Chrome
• Magnetic: No
• SAE/Metric/Torx: SAE
• Drive Type: 6 Point
• Material: Alloy Steel
• US Federal Specification : GGG-W-641 E
• Dim. F: Length to Shoulder: 0.866 in

1/4" Standard Socket:

• Dim. A: Drive End: 0.469 in
• Dim. B: Wrench End: 0.390 in
• Dim. D: Bolt Clearance: 0.217 in
• Dim. E: Wrench Depth: 0.157 in
• Weight (Catalog):0.04 lbs.
• Socket Size (SAE): 1/4 in
• Size: 1/4 in

5/16" Standard Socket:

• Dim. A: Drive End: 0.469 in
• Dim. B: Wrench End: 0.453 in
• Dim. D: Bolt Clearance: 0.217 in
• Dim. E: Wrench Depth: 0.197 in
• Weight (Catalog):0.03 lbs.
• Socket Size (SAE): 5/16 in
• Size: 5/16 in

11/32" Standard Socket:

• Dim. A: Drive End: 0.516 in
• Dim. B: Wrench End: 0.516 in
• Dim. D: Bolt Clearance: 0.217 in
• Dim. E: Wrench Depth: 0.197 in
• Weight (Catalog) : 0.04 lbs.
• Socket Size (SAE): 11/32 in
• Size: 11/32 in

3/8" Standard Socket:

• Dim. A: Drive End: 0.575 in
• Dim. B: Wrench End: 0.575 in
• Dim. D: Bolt Clearance: 0.217 in
• Dim. E: Wrench Depth: 0.201 in
• Weight (Catalog) : 0.08 lbs.
• Socket Size (SAE): 3/8 in
• Size: 3/8 in

7/16" Standard Socket:

• Dim. A: Drive End: 0.626 in
• Dim. B: Wrench End: 0.626 in
• Dim. D: Bolt Clearance: 0.217 in
• Dim. E: Wrench Depth: 0.236 in
• Weight (Catalog) : 0.06 lbs.
• Socket Size (SAE): 7/16 in
• Size: 7/16 in

1/2" Standard Socket:

• Dim. A: Drive End: 0.705 in
• Dim. B: Wrench End: 0.705 in
• Dim. D: Bolt Clearance: 0.217 in
• Dim. E: Wrench Depth: 0.287 in
• Weight (Catalog) : 0.12 lbs.
• Socket Size (SAE): 1/2 in
• Size: 1/2 in
