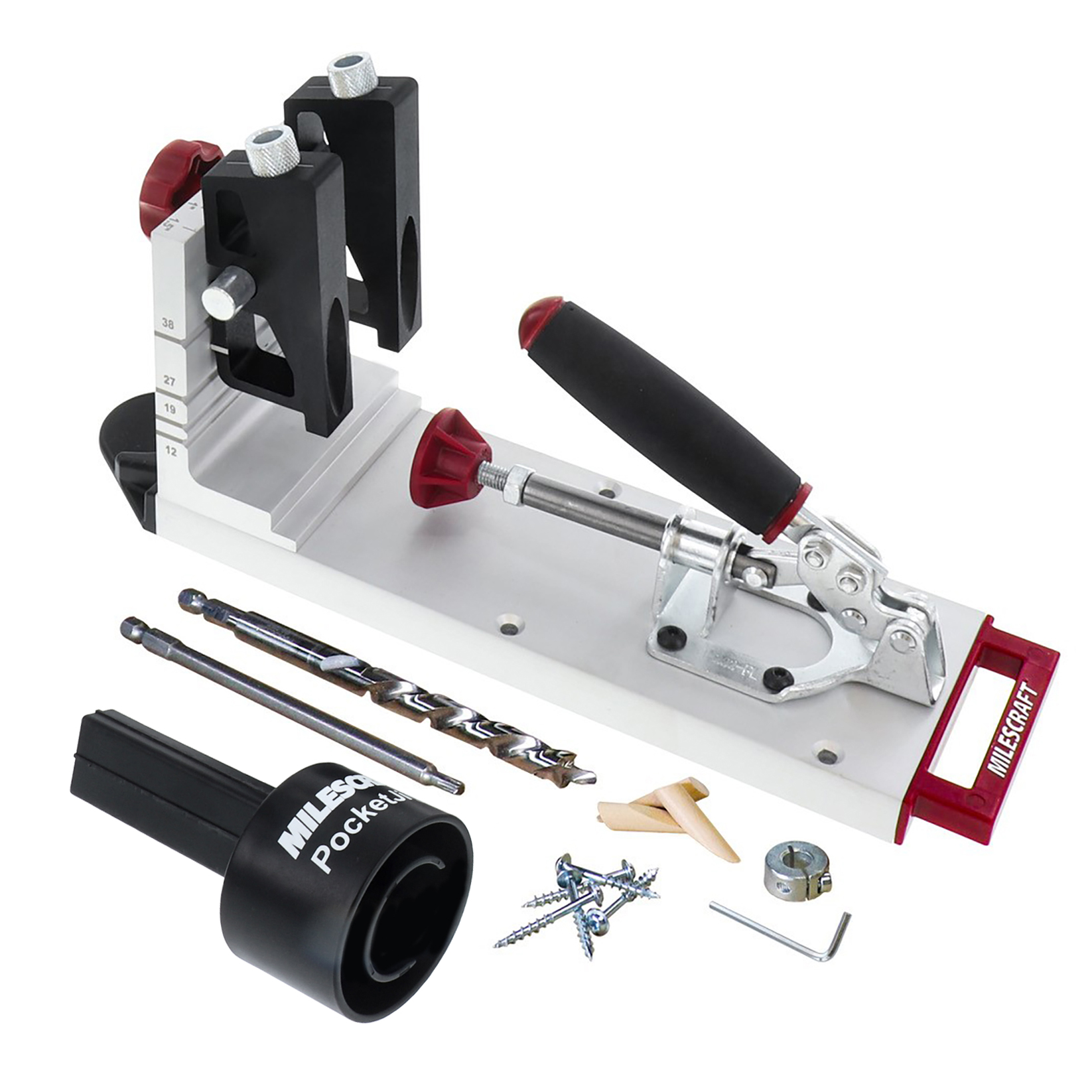

Creating professional quality pocket hole results has never been easier with the Milescraft PocketJig400. Solid aluminum construction ensures accurate pocket holes and a long product life. The hardened steel bushings, dust extraction, and sleek design will make this your go-to for pocket hole joints going forward. A convenient storage drawer contains markings for all common board thicknesses to make setting the depth stop simple and easy. For mobile or repair jobs, the clamping wall of the PocketJig400 is removable, turning it into a hand-held jig that fits and clamps almost anywhere
Features:
- All-Metal Construction: Increased rigidity reduces the flex for more precise results
- Durable Drill Guides: Height and width adjustable bushing blocks contain two, 3/8″ steel drill guides that can be positioned for drilling boards from 1/2” up to 1-1/2” thick and holes from 3/4” to 3” apart
- Dial In The Pressure: Steel toggle clamp with micro-adjust clamp-head dials in perfect clamping pressure for different board thicknesses
- Store Your Stuff: Convenient storage drawer holds bits, drivers, depth stops, and more and contains markings for all common board thicknesses to make setting the depth stop simple and easy
- Portable Pocket Hole: L-Base can be removed from main body and used for mobile pocket hole projects and repairs
Includes:
- Main Jig Body with Toggle Clamp
- Removeable L-shaped Clamping Wall
- 2x Solid Steel Drill Guides
- 3/8” Pocket Hole Bit
- 6” T20 Magnetic Driver
- 3/8” Split-Ring Depth Stop
- 10 x 1” Coarse Pocket Screws
- 10 x 1.25” Coarse Pocket Screws
- 10 x 1.25” Fine Pocket Screws
- 10 x 1.5” Coarse Pocket Screws
- 10 x 2” Coarse Pocket Screws
- 10 x 2.5” Coarse Pocket Screws
- 10 x 3/8” Pocket Plugs
- 3mm Hex Key
Specification:
- Main Body Material: Aluminum
- Drill Guide Material: Hardened Steel
- Drill Guide Sizing: 3/8”
- Board Size Range: 1/2” to 1-1/2”1-1/4″ T20 Self-Tapping PH Screws Fine x 10
- 1-1/2″ T20 Self-Tapping PH Screws Coarse x 10
- 1″ T20 Self-Tapping PH Screws Coarse x 10
- Bushing Spacing: 3/4″ to 3″
