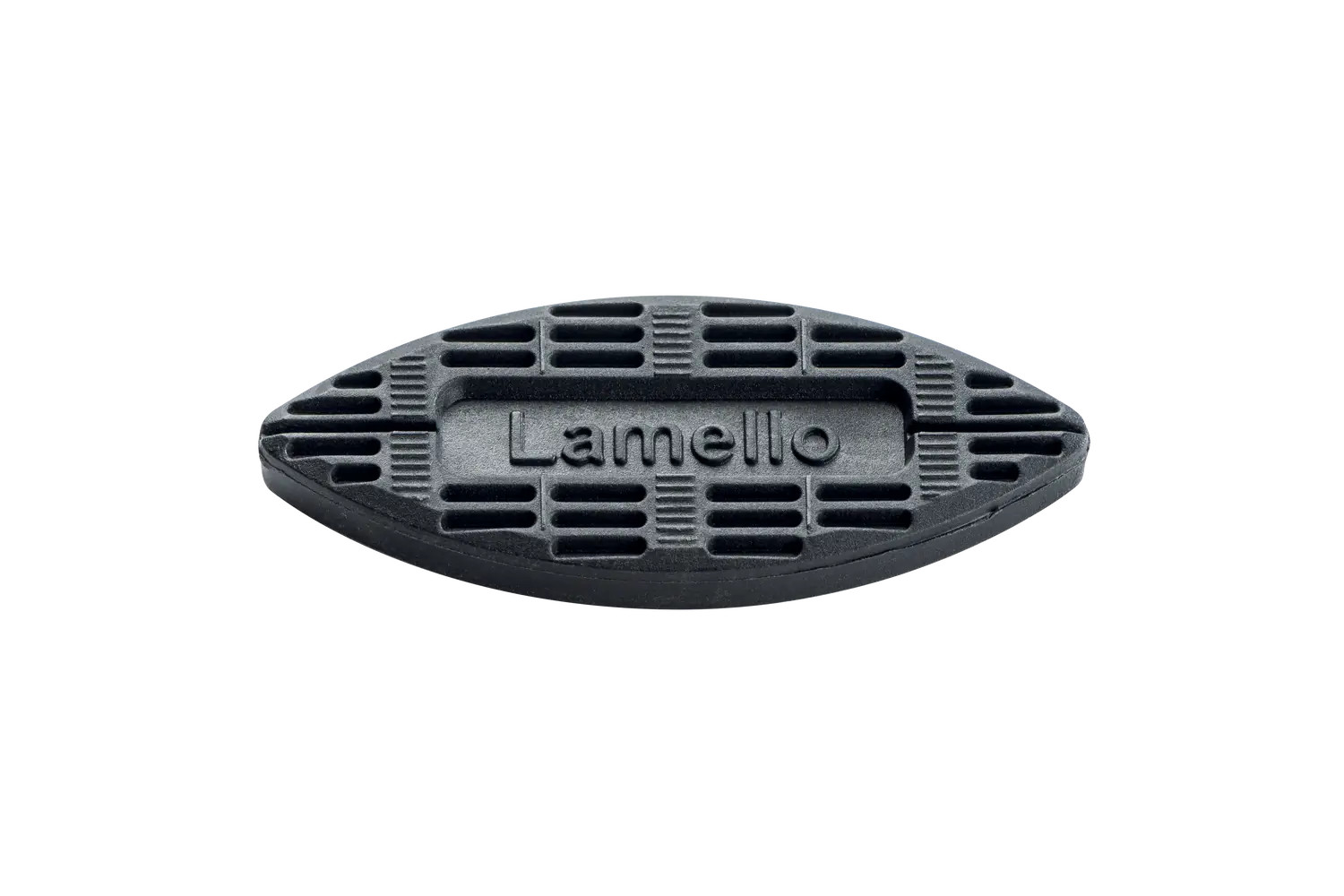

The Bisco P is a plastic element. The aligning element fits into the 7 mm wide P-System groove. However, it is not anchored with positive locking like the Clamex P, but instead clamps in the groove due to its surface structure. It can be used like a wooden biscuit with PVA glue as a fixed joint. The Bisco P is used in combination with the Clamex P when only every second connector needs to apply clamping force and an aligning element in between is sufficient for joint flushness as an invisible and cost-effective alternative. Another application is the use for test connections before a workpiece is joined with a Tenso P and adhesive. The clamping force of the Tenso P is very powerful and, depending on the angle of the workpieces, disassembly may require a lot of force. It is therefore advisable to check the precision of the machining with a Bisco P. The Biscos are then simply removed from the grooves, replaced by Tenso P, adhesive is then applied and the workpieces are joined together. The Bisco P-14 is used in combination with the Clamex P-14 or Tenso P-14, the Bisco P-10 with connectors of size P-10.
Features:
- Plastic element for Clamex P and Tenso P
- Align furniture parts flush together with Clamex P
- Before gluing with Tenso P, check furniture for quality control with Bisco P
- All angle and miter joints from 22.5° to 180°
- Bisco P-10 from material thickness 12 mm, Bisco P-14 from 16 mm
- Flush alignment: The generous sliding tolerance allows for perfect flush alignment of workpieces
- Alternating application: Combination with Clamex or Tenso. Ideal for dry joints before glueing to ensure that the groove fits.
- Versatile: The minimal element depth allows for miters of 22.5 – 180° as well as surface and corner joints and divisions
- Lateral tolerance: Perfect, flush alignment of both workpieces
- Low cutting depth: Minimal cutting depth with maximum tensile strength
Specifications:
- Installation tolerance longitudinal: ± 2 mm
- Installation tolerance radial: ± 0 mm
- Minimum workpiece width: 75 mm
- Minimum material thickness for edge cuts: 12 mm
- Minimum material thickness for surface cuts: 11 mm
- Minimum material thickness for centre wall machining: 21 mm
- Minimum material thickness for angle bisector: 18 mm
- Adjustment Lamello-System: Max.
- Adjustment P-System: P-14
- Size (LxWxH):65 x 27 x 7 mm
Applications:
- In combination with the Clamex P or Tenso P in furniture construction
- Applications similar to the Lamello original wooden biscuit
- Size P10: butt joints from a material thickness of 12 mm, mitre connections from a material thickness of 18 mm
- Size P14: butt joints from a material thickness of 15 mm, mitre connections from a material thickness of 18 mm
Pack Size:
- LAM-145301: 80 Pack
- LAM-145302: 300 Pack
- LAM-145303: 1000 Pack
