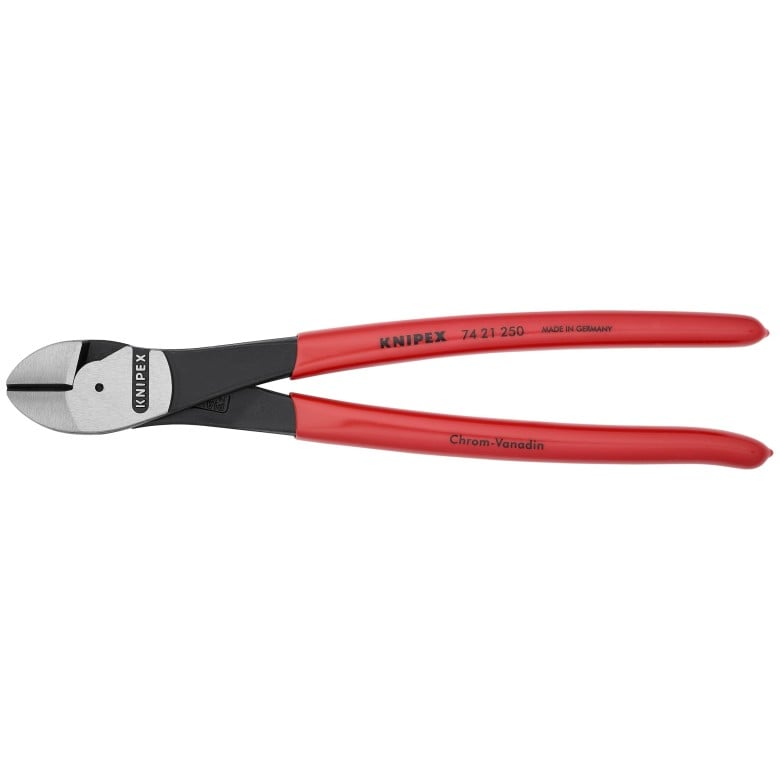

Features:
- 20% less effort required compared to conventional diagonal cutters of the same length
- Forged-on axle for heavy-duty work
- For very tough, continuous use
- High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- Precision cutting edges induction hardened (approx. 64 HRC) cut several types of wire including piano wire
- 10" length suitable for copper conductors up to 16 mm² and aluminum conductors up to 35 mm²
- 12˚ angle head for hand clearance when cutting
- Chrome vanadium heavy-duty steel; forged, multi stage oil-hardened
Specifications:
- Length: 10"
- Width: 2"
- Height: 7/8"
- Weight: 0.89 lbs.
- Material Type: Chrome vanadium heavy-duty steel, forged, oil-hardened
- Handle Type: Plastic coating
- Surface Finish: Polished
- Other Surface Finish: Black atramentized
- Joint Type: Forged-in axle
- Cutting Capacity - Piano Wire: 1/8"
- Cutting Capacity - Hard Wire (Steel Wire): 9/64"
- Cutting Capacity - Medium Hard Wire (Nail): 3/16"
- Cutting Edge Shape: Bevel
- Angled Head: 12 degree
- DIN: DIN ISO 5749
Warning:
- Do no use on live circuits
- Always switch off power
- Always wear approved eye protection
- Technical changes and errors reserved
