Gearwrench GW-8456X 1/2in Drive 6 Point Deep Impact Metric Socket

Gearwrench offers a wide range of impact products in open stock & sets that are designed to deliver the performance and strength that the professional users require. They are made from chrome molybdenum alloy steel for exceptional strength and durability. Gearwrench's sockets have a manganese phosphate coating to resist corrosion. The sockets also feature highly visible laser etched markings and a secondary size hard stamping. The sockets feature off-corner loading to reduce fastener rounding. The Gearwrench impact product family will allow the professional user to forge ahead.

Features

• Chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
• Off-corner loading design reduces fastener rounding
• Black oxide finish to resist corrosion
• High-visibility laser-etched markings provide quick size identification
• Secondary hard stamped size markings
• Meets or exceeds ASME specifications
• Prop 65: No Warning

Specifications:

• ASME Specification: B107.33M
• Overall Length: 3.228 in
• Type: Socket
• Packaging: Hang Tab
• Warranty: Full Lifetime
• Drive Tang Size: 1/2 in
• Length Format: Deep
• Finish: Black Oxide
• Magnetic: No
• SAE/Metric/Torx: Metric
• Drive Type: 6 Point
• Material: Chrome-Molybdenum (Cr-Mo)

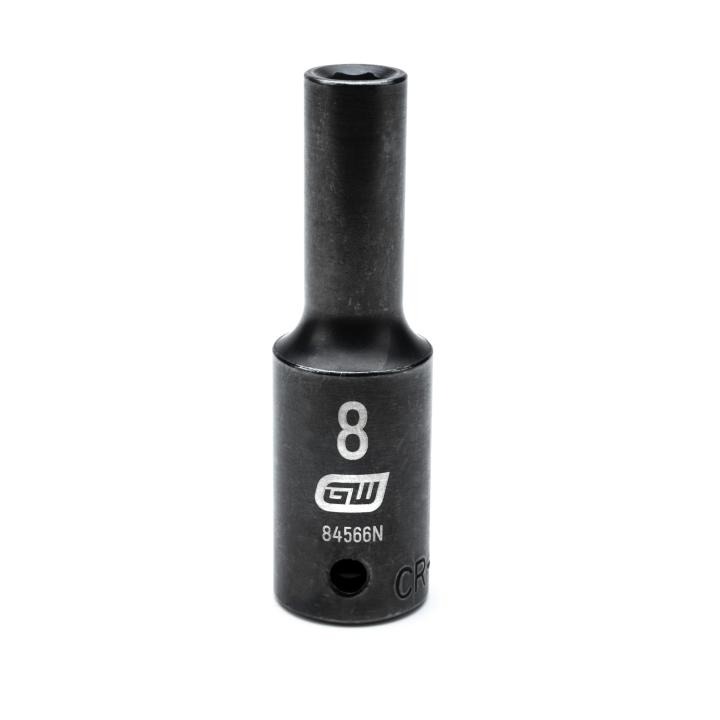

8mm Deep Impact Metric Socket:

• Dim. A: Drive End: 0.957 in
• Dim. B: Wrench End: 0.591 in
• Dim. D: Bolt Clearance: 0.283 in
• Dim. E: Wrench Depth: 0.512 in
• Dim. F: Length to Shoulder: 1.614 in
• Size: 8mm
• Weight (Catalog): 0.35 lbs.
• Socket Size (mm): 8mm

9mm Deep Impact Metric Socket:

• Dim. A: Drive End: 0.957 in
• Dim. B: Wrench End: 0.63 in
• Dim. D: Bolt Clearance: 0.283 in
• Dim. E: Wrench Depth: 0.551 in
• Dim. F: Length to Shoulder: 1.614 in
• Size: 9mm
• Weight (Catalog): 0.37 lbs.
• Socket Size (mm): 9mm

10mm Deep Impact Metric Socket:

• Dim. A: Drive End: 0.957 in
• Dim. B: Wrench End: 0.689 in
• Dim. D: Bolt Clearance: 0.374in
• Dim. E: Wrench Depth: 0.551 in
• Dim. F: Length to Shoulder: 1.614 in
• Size: 10mm
• Weight (Catalog): 0.36 lbs.
• Socket Size (mm): 10mm

11mm Deep Impact Metric Socket:

• Dim. A: Drive End: 0.957 in
• Dim. B: Wrench End: 0.728 in
• Dim. D: Bolt Clearance: 0.394 in
• Dim. E: Wrench Depth: 0.551 in
• Dim. F: Length to Shoulder: 1.614 in
• Size: 11mm
• Weight (Catalog): 0.37 lbs.
• Socket Size (mm): 11mm

12mm Deep Impact Metric Socket:

• Dim. A: Drive End: 0.957 in
• Dim. B: Wrench End: 0.768 in
• Dim. D: Bolt Clearance: 0.449 in
• Dim. E: Wrench Depth: 0.551 in
• Dim. F: Length to Shoulder: 1.614 in
• Size: 12mm
• Weight (Catalog): 0.37 lbs.
• Socket Size (mm): 12mm

13mm Deep Impact Metric Socket:

• Dim. A: Drive End: 0.957 in
• Dim. B: Wrench End: 0.819 in
• Dim. D: Bolt Clearance: 0.492 in
• Dim. E: Wrench Depth: 0.551 in
• Dim. F: Length to Shoulder: 1.614 in
• Size: 13mm
• Weight (Catalog): 0.36 lbs.
• Socket Size (mm): 13mm

14mm Deep Impact Metric Socket:

• Dim. A: Drive End: 0.957 in
• Dim. B: Wrench End: 0.866 in
• Dim. D: Bolt Clearance: 0.492 in
• Dim. E: Wrench Depth: 0.669 in
• Dim. F: Length to Shoulder: 1.614 in
• Size: 14mm
• Weight (Catalog): 0.39 lbs.
• Socket Size (mm): 14mm

15mm Deep Impact Metric Socket:

• Dim. A: Drive End: 0.957 in
• Dim. B: Wrench End: 0.957 in
• Dim. D: Bolt Clearance: 0.531 in
• Dim. E: Wrench Depth: 0.669 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 15mm
• Weight (Catalog): 0.43 lbs.
• Socket Size (mm): 15mm

16mm Deep Impact Metric Socket:

• Dim. A: Drive End: 0.957 in
• Dim. B: Wrench End: 0.957 in
• Dim. D: Bolt Clearance: 0.531 in
• Dim. E: Wrench Depth: 0.669 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 16mm
• Weight (Catalog): 0.41 lbs.
• Socket Size (mm): 16mm

17mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.016 in
• Dim. B: Wrench End: 1.016 in
• Dim. D: Bolt Clearance: 0.531 in
• Dim. E: Wrench Depth: 0.669 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 17mm
• Weight (Catalog): 0.45 lbs.
• Socket Size (mm): 17mm

18mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.094 in
• Dim. B: Wrench End: 1.094 in
• Dim. D: Bolt Clearance: 0.531 in
• Dim. E: Wrench Depth: 0.669 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 18mm
• Weight (Catalog): 0.55 lbs.
• Socket Size (mm): 18mm

19mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.173 in
• Dim. B: Wrench End: 1.173 in
• Dim. D: Bolt Clearance: 0.551 in
• Dim. E: Wrench Depth: 0.748 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 19mm
• Weight (Catalog): 0.66 lbs.
• Socket Size (mm): 19mm

20mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.173 in
• Dim. B: Wrench End: 1.173 in
• Dim. D: Bolt Clearance: 0.591 in
• Dim. E: Wrench Depth: 0.748 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 20mm
• Weight (Catalog): 0.62 lbs.
• Socket Size (mm): 20mm

21mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.252 in
• Dim. B: Wrench End: 1.252 in
• Dim. D: Bolt Clearance: 0.61 in
• Dim. E: Wrench Depth: 0.945 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 21mm
• Weight (Catalog): 0.76 lbs.
• Socket Size (mm): 21mm

22mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.252 in
• Dim. B: Wrench End: 1.252 in
• Dim. D: Bolt Clearance: 0.61 in
• Dim. E: Wrench Depth: 0.945 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 22mm
• Weight (Catalog): 0.73 lbs.
• Socket Size (mm): 22mm

23mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.252 in
• Dim. B: Wrench End: 1.252 in
• Dim. D: Bolt Clearance: 0.61 in
• Dim. E: Wrench Depth: 0.945 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 23mm
• Weight (Catalog): 0.67 lbs.
• Socket Size (mm): 23mm

24mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.331 in
• Dim. B: Wrench End: 1.331 in
• Dim. D: Bolt Clearance: 0.689 in
• Dim. E: Wrench Depth: 0.945 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 24mm
• Weight (Catalog): 0.80 lbs.
• Socket Size (mm): 24mm

25mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.409 in
• Dim. B: Wrench End: 1.409 in
• Dim. D: Bolt Clearance: 0.72 in
• Dim. E: Wrench Depth: 0.945 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 25mm
• Weight (Catalog): 0.90 lbs.
• Socket Size (mm): 25mm

26mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.488 in
• Dim. B: Wrench End: 1.488 in
• Dim. D: Bolt Clearance: 0.72 in
• Dim. E: Wrench Depth: 0.945 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 26mm
• Weight (Catalog): 1.12 lbs.
• Socket Size (mm): 26mm

27mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.488 in
• Dim. B: Wrench End: 1.488 in
• Dim. D: Bolt Clearance: 0.728 in
• Dim. E: Wrench Depth: 0.945 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 27mm
• Weight (Catalog): 0.90 lbs.
• Socket Size (mm): 27mm

30mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.646 in
• Dim. B: Wrench End: 1.646 in
• Dim. D: Bolt Clearance:  0.886 in
• Dim. E: Wrench Depth: 0.945 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 30mm
• Weight (Catalog): 1.25 lbs.
• Socket Size (mm): 30mm

31mm Deep Impact Metric Socket:

• Dim. A: Drive End: 1.646 in
• Dim. B: Wrench End: 1.646 in
• Dim. D: Bolt Clearance:  0.925 in
• Dim. E: Wrench Depth: 0.945 in
• Dim. F: Length to Shoulder: 3.228 in
• Size: 31mm
• Weight (Catalog): 1.14 lbs.
• Socket Size (mm): 31mm
