GEARWRENCH offers a wide range of impact products in open stock & sets that are designed to deliver the performance and strength that the professional users require. They are made from chrome molybdenum alloy steel for exceptional strength and durability. Gearwrench's sockets have a manganese phosphate coating to resist corrosion. The sockets also feature highly visible laser etched markings and a secondary size hard stamping. The sockets feature off-corner loading to reduce fastener rounding. The GEARWRENCH impact product family will allow the professional user to Forge Ahead.
Features:
- Chrome molybdenum alloy steel (Cr-Mo) for exceptional strength and durability
- Off-corner loading design reduces fastener rounding
- Manganese phosphate finish to resist corrosion
- High-visibility laser-etched markings provide quick size identification
- Secondary hard stamped size markings
- Meets or exceeds ASME specifications
Specifications:
- Dim. A : Drive End : 1.732 in
- Prop 65 : No Warning
- ASME Specification : B107.2
- Type : Socket
- Packaging : Hang Tab
- Warranty : Full Lifetime
- Length Format : Deep
- Finish : Manganese Phosphate
- Magnetic : No
- SAE/Metric/Torx : SAE
- Material : Chrome-Molybdenum (Cr-Mo)
3/4in Drive 6 Point Deep Impact SAE Socket 1-1/16in:
- Dim. B : Wrench End : 1.654 in
- Dim. D : Bolt Clearance : 0.687 in
- Dim. E : Wrench Depth : 0.49 in
- Dim. F : Length to Shoulder : 2.362 in
- Overall Length : 3.543 in
- Size : 1-1/16 in
- Weight (Catalog) : 1.41 lbs.
- Socket Size (SAE) : 1-1/16 in
3/4in Drive 6 Point Deep Impact SAE Socket 1-1/8in:
- Dim. B : Wrench End : 1.732 in
- Dim. D : Bolt Clearance : 0.781 in
- Dim. E : Wrench Depth : 0.632 in
- Dim. F : Length to Shoulder : 2.632 in
- Overall Length : 3.543 in
- Size : 1-1/8 in
- Weight (Catalog) : 1.47 lbs.
- Socket Size (SAE) : 1-1/8 in
3/4in Drive 6 Point Deep Impact SAE Socket 1-3/16in:
- Dim. B : Wrench End : 1.811 in
- Dim. D : Bolt Clearance : 0.781 in
- Dim. E : Wrench Depth : 0.632 in
- Dim. F : Length to Shoulder : 2.632 in
- Overall Length : 3.543 in
- Size : 1-3/16 in
- Weight (Catalog) : 1.54 lbs.
- Socket Size (SAE) : 1-3/16 in

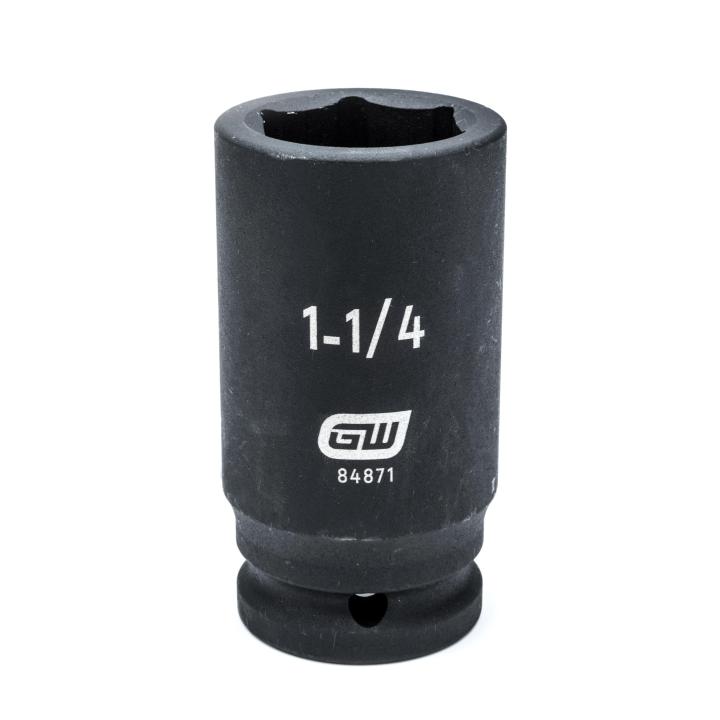

3/4in Drive 6 Point Deep Impact SAE Socket 1-1/4in:
- Dim. B : Wrench End : 1.89 in
- Dim. D : Bolt Clearance : 0.812 in
- Dim. E : Wrench Depth : 0.632 in
- Dim. F : Length to Shoulder : 2.632 in
- Overall Length : 3.543 in
- Size : 1-1/4 in
- Weight (Catalog) : 1.66 lbs.
- Socket Size (SAE) : 1-1/4 in
3/4in Drive 6 Point Deep Impact SAE Socket 1-5/16in:
- Dim. B : Wrench End : 1.968 in
- Dim. D : Bolt Clearance : 0.937 in
- Dim. E : Wrench Depth : 0.74 in
- Dim. F : Length to Shoulder : 2.632 in
- Overall Length : 3.543 in
- Size : 1-5/16 in
- Weight (Catalog) : 1.70 lbs.
- Socket Size (SAE) : 1-5/16 in
3/4in Drive 6 Point Deep Impact SAE Socket 1-3/8in:
- Dim. B : Wrench End : 2.047 in
- Dim. D : Bolt Clearance : 0.937 in
- Dim. E : Wrench Depth : 0.74 in
- Dim. F : Length to Shoulder : 2.632 in
- Overall Length : 3.543 in
- Size : 1-3/8 in
- Weight (Catalog) : 1.83 lbs.
- Socket Size (SAE) : 1-3/8 in
3/4in Drive 6 Point Deep Impact SAE Socket 1-7/16in:
- Dim. B : Wrench End : 2.087 in
- Dim. D : Bolt Clearance : 1 in
- Dim. E : Wrench Depth : 0.74 in
- Dim. F : Length to Shoulder : 2.632 in
- Overall Length : 3.543 in
- Size : 1-7/16 in
- Weight (Catalog) : 1.81 lbs.
- Socket Size (SAE) : 1-7/16 in
3/4in Drive 6 Point Deep Impact SAE Socket 1-1/2in:
- Dim. B : Wrench End : 2.205 in
- Dim. D : Bolt Clearance : 1.062 in
- Dim. E : Wrench Depth : 0.847 in
- Dim. F : Length to Shoulder : 2.632 in
- Overall Length : 3.543 in
- Size : 1-1/2 in
- Weight (Catalog) : 1.99 lbs.
- Socket Size (SAE) : 1-1/2 in
3/4in Drive 6 Point Deep Impact SAE Socket 1-9/16in:
- Dim. B : Wrench End : 2.283 in
- Dim. D : Bolt Clearance : 1.062 in
- Dim. E : Wrench Depth : 0.847 in
- Dim. F : Length to Shoulder : 2.632 in
- Overall Length : 3.543 in
- Size : 1-9/16 in
- Weight (Catalog) : 2.07 lbs.
- Socket Size (SAE) : 1-9/16 in
