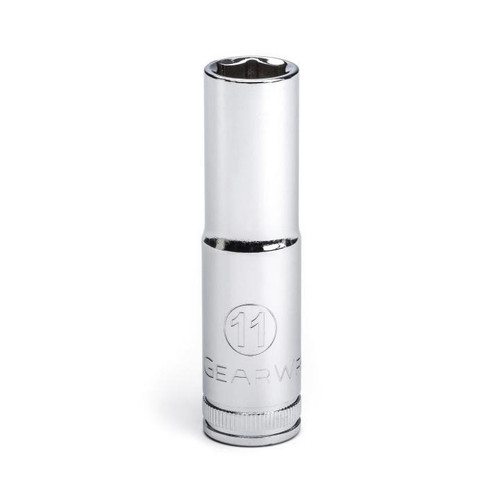

GEARWRENCH GW-8039X 3/8in Drive 6 Point Deep Metric Socket

$9.99 - $10.99
Brand:
SKU:
GW-8039X
Availability: In Stock Online Availability: Out of Stock Availability: Special Order - Email info@atlas-machinery.com for pricing
Note:
Sold Online & Vaughan Location Only

Gearwrench 3/8" drive sockets are manufactured from alloy steel for maximum durability and strength. Gearwrench's off corner loading design reduces fastener rounding and the chamfered opening help guide the socket on to fasteners. Gearwrench's sockets feature a double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets.

Features:

  • Off-corner loading design reduces fastener rounding
  • Chamfered opening quickly guides fasteners into socket
  • Serration depth inside the socket is as deep as the fastener hold it in the correct position
  • Hard stamped size markings
  • Double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets
  • Bright, full polish chrome finish easily wipes clean and resists corrosion
  • Meets or exceeds ASME specifications
  • Prop 65: WARNING: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Specifications:

  • ASME Specification: B107.5M
  • Knurled: Yes
  • ANSI Specification: Meets or Exceeds
  • Type: Socket
  • Warranty: Full Lifetime
  • Length Format: Deep
  • Finish: Full Polish Chrome
  • Drive Tang Size: 3/8 in
  • Magnetic: No
  • SAE/Metric/Torx: Metric
  • Overall Length: 2.5 in

6mm Metric Socket:

  • Dim. A: Drive End: 0.661 in
  • Dim. B: Wrench End: 0.508 in
  • Dim. D: Bolt Clearance: 0.315 in
  • Dim. E: Wrench Depth: 0.197 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.11 lbs.
  • Socket Size (mm): 6mm
  • Size: 6mm

7mm Metric Socket:

  • Dim. A: Drive End: 0.661 in
  • Dim. B: Wrench End: 0.508 in
  • Dim. D: Bolt Clearance: 0.315 in
  • Dim. E: Wrench Depth: 0.197 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.11 lbs.
  • Socket Size (mm): 7mm
  • Size: 7mm

8mm Metric Socket:

  • Dim. A: Drive End: 0.661 in
  • Dim. B: Wrench End: 0.508 in
  • Dim. D: Bolt Clearance: 0.315 in
  • Dim. E: Wrench Depth: 0.197 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.13 lbs.
  • Socket Size (mm): 8mm
  • Size: 8mm

10mm Metric Socket:

  • Dim. A: Drive End: 0.661 in
  • Dim. B: Wrench End: 0.571 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.201 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.13 lbs.
  • Socket Size (mm): 10mm
  • Size: 10mm

11mm Metric Socket:

  • Dim. A: Drive End: 0.661 in
  • Dim. B: Wrench End: 0.622 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.236 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.14 lbs.
  • Socket Size (mm): 11mm
  • Size: 11mm

12mm Metric Socket:

  • Dim. A: Drive End: 0.661 in
  • Dim. B: Wrench End: 0.654 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.260 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.14 lbs.
  • Socket Size (mm): 12mm
  • Size: 12mm

13mm Metric Socket:

  • Dim. A: Drive End: 0.74 in
  • Dim. B: Wrench End: 0.697 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.287 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.16 lbs.
  • Socket Size (mm): 13mm
  • Size: 13mm

14mm Metric Socket:

  • Dim. A: Drive End: 0.768 in
  • Dim. B: Wrench End: 0.768 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.350 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.11 lbs.
  • Socket Size (mm): 14mm
  • Size: 14mm

15mm Metric Socket:

  • Dim. A: Drive End: 0.819 in
  • Dim. B: Wrench End: 0.819 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.350 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.17 lbs.
  • Socket Size (mm): 15mm
  • Size: 15mm

16mm Metric Socket:

  • Dim. A: Drive End: 0.866 in
  • Dim. B: Wrench End: 0.866 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.398 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.17 lbs.
  • Socket Size (mm): 16mm
  • Size: 16mm

17mm Metric Socket:

  • Dim. A: Drive End: 0.937 in
  • Dim. B: Wrench End: 0.937 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.398 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.19 lbs.
  • Socket Size (mm): 17mm
  • Size: 17mm

18mm Metric Socket:

  • Dim. A: Drive End: 0.937 in
  • Dim. B: Wrench End: 0.937 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.421 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.24 lbs.
  • Socket Size (mm): 18mm
  • Size: 18mm

19mm Metric Socket:

  • Dim. A: Drive End: 1.004 in
  • Dim. B: Wrench End: 1.004 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.457 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.25 lbs.
  • Socket Size (mm): 19mm
  • Size: 19mm

20mm Metric Socket:

  • Dim. A: Drive End: 1.016 in
  • Dim. B: Wrench End: 1.063 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.480 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.25 lbs.
  • Socket Size (mm): 20mm
  • Size: 20mm

21mm Metric Socket:

  • Dim. A: Drive End: 1.047 in
  • Dim. B: Wrench End: 1.094 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.480 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.26 lbs.
  • Socket Size (mm): 21mm
  • Size: 21mm

22mm Metric Socket:

  • Dim. A: Drive End: 1.114 in
  • Dim. B: Wrench End: 1.161 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.520 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.27 lbs.
  • Socket Size (mm): 22mm
  • Size: 22mm

24mm Metric Socket:

  • Dim. A: Drive End: 1.205 in
  • Dim. B: Wrench End: 1.252 in
  • Dim. D: Bolt Clearance: 0.335 in
  • Dim. E: Wrench Depth: 0.567 in
  • Dim. F: Length to Shoulder: 1.142 in
  • Weight (Catalog): 0.28 lbs.
  • Socket Size (mm): 24mm
  • Size: 24mm
