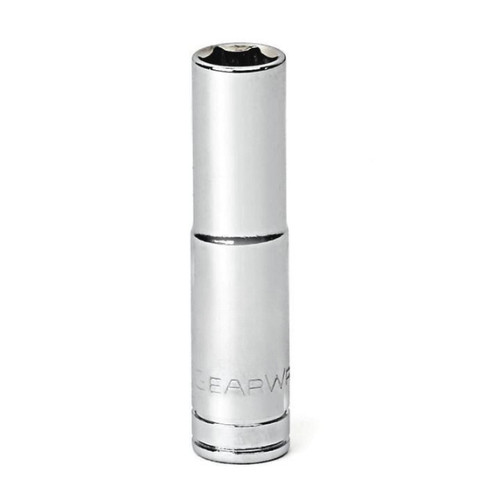

Gearwrench 1/4" drive sockets are manufactured from alloy steel for maximum durability and strength. Gearwrench's off corner loading design reduces fastener rounding and the chamfered opening help guide the socket on to fasteners. Gearwrench's sockets feature a double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets.
Features:
- Off-corner loading design reduces fastener rounding
- Chamfered opening quickly guides fasteners into socket
- Serration depth inside the socket is as deep as the fastener hold it in the correct position
- Hard stamped size markings
- Double line (SAE) and knurled (metric) ring help easily identify standard and metric sockets
- Bright, full polish chrome finish easily wipes clean and resists corrosion
- Meets or exceeds ASME specifications
- Prop 65: Warning: This product contains or produces a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Specifications:
- Asme Specification: B107.5M
- Overall Length: 1.929 in
- Drive Tang Size: 1/4 in
- Knurled: Yes
- Type: Socket
- Weight (Catalog): 0.03 lbs.
- Warranty: Full Lifetime
- Length Format: Deep
- Finish: Full Polish Chrome
- Magnetic: No
- SAE/Metric/Torx : Metric
- Drive Type: 6 Point
- Material: Alloy Steel
5mm Standard Socket:
- Dim. A: Drive End: 0.469 in
- Dim. B: Wrench End: 0.315 in
- Dim. D: Bolt Clearance: 0.177 in
- Dim. E: Wrench Depth: 0.138 in
- Dim. F: Length to Shoulder: 0.866 in
- Socket Size (mm): 5mm
- Size: 5mm
5.5mm Standard Socket:
- Dim. A: Drive End: 0.469 in
- Dim. B: Wrench End: 0.339 in
- Dim. D: Bolt Clearance: 0.197 in
- Dim. E: Wrench Depth: 0.138 in
- Dim. F: Length to Shoulder: 0.866 in
- Socket Size (mm): 5.5mm
- Size: 5.5mm
6mm Standard Socket:
- Dim. A: Drive End: 0.469 in
- Dim. B: Wrench End: 0.362 in
- Dim. D: Bolt Clearance: 0.217 in
- Dim. E: Wrench Depth: 0.157 in
- Dim. F: Length to Shoulder: 0.866 in
- Socket Size (mm): 6mm
- Size: 6mm
7mm Standard Socket:
- Dim. A: Drive End: 0.469 in
- Dim. B: Wrench End: 0.425 in
- Dim. D: Bolt Clearance: 0.217 in
- Dim. E: Wrench Depth: 0.197 in
- Dim. F: Length to Shoulder: 0.866 in
- Socket Size (mm): 7mm
- Size: 7mm
8mm Standard Socket:
- Dim. A: Drive End: 0.469 in
- Dim. B: Wrench End: 0.453 in
- Dim. D: Bolt Clearance: 0.217 in
- Dim. E: Wrench Depth: 0.197 in
- Dim. F: Length to Shoulder: 0.866 in
- Socket Size (mm): 8mm
- Size: 8mm
10mm Standard Socket:
- Dim. A: Drive End: 0.575 in
- Dim. B: Wrench End: 0.575 in
- Dim. D: Bolt Clearance: 0.217 in
- Dim. E: Wrench Depth: 0.217 in
- Dim. F: Length to Shoulder: 0.866 in
- Socket Size (mm): 10mm
- Size: 10mm
11mm Standard Socket:
- Dim. A: Drive End: 0.626 in
- Dim. B: Wrench End: 0.626 in
- Dim. D: Bolt Clearance: 0.217 in
- Dim. E: Wrench Depth: 0.256 in
- Dim. F: Length to Shoulder: 0.866 in
- Socket Size (mm): 11mm
- Size: 11mm
12mm Standard Socket:
- Dim. A: Drive End: 0.665 in
- Dim. B: Wrench End: 0.665 in
- Dim. D: Bolt Clearance: 0.217 in
- Dim. E: Wrench Depth: 0.276 in
- Dim. F: Length to Shoulder: 0.866 in
- Socket Size (mm): 12mm
- Size: 12mm
13mm Standard Socket:
- Dim. A: Drive End: 0.705 in
- Dim. B: Wrench End: 0.705 in
- Dim. D: Bolt Clearance: 0.217 in
- Dim. E: Wrench Depth: 0.303 in
- Dim. F: Length to Shoulder: 0.866 in
- Socket Size (mm): 13mm
- Size: 13mm
14mm Standard Socket:
- Dim. A: Drive End: 0.772 in
- Dim. B: Wrench End: 0.772 in
- Dim. D: Bolt Clearance: 0.217 in
- Dim. E: Wrench Depth: 0.350 in
- Dim. F: Length to Shoulder: 0.866 in
- Socket Size (mm): 14mm
- Size: 14mm

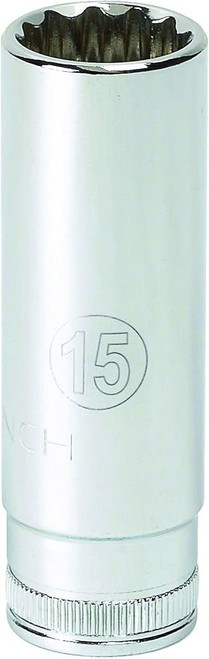

15mm Standard Socket:
- Dim. A: Drive End: 0.819 in
- Dim. B: Wrench End: 0.819 in
- Dim. D: Bolt Clearance: 0.217 in
- Dim. E: Wrench Depth: 0.350 in
- Dim. F: Length to Shoulder: 0.866 in
- Socket Size (mm): 15mm
- Size: 15mm
