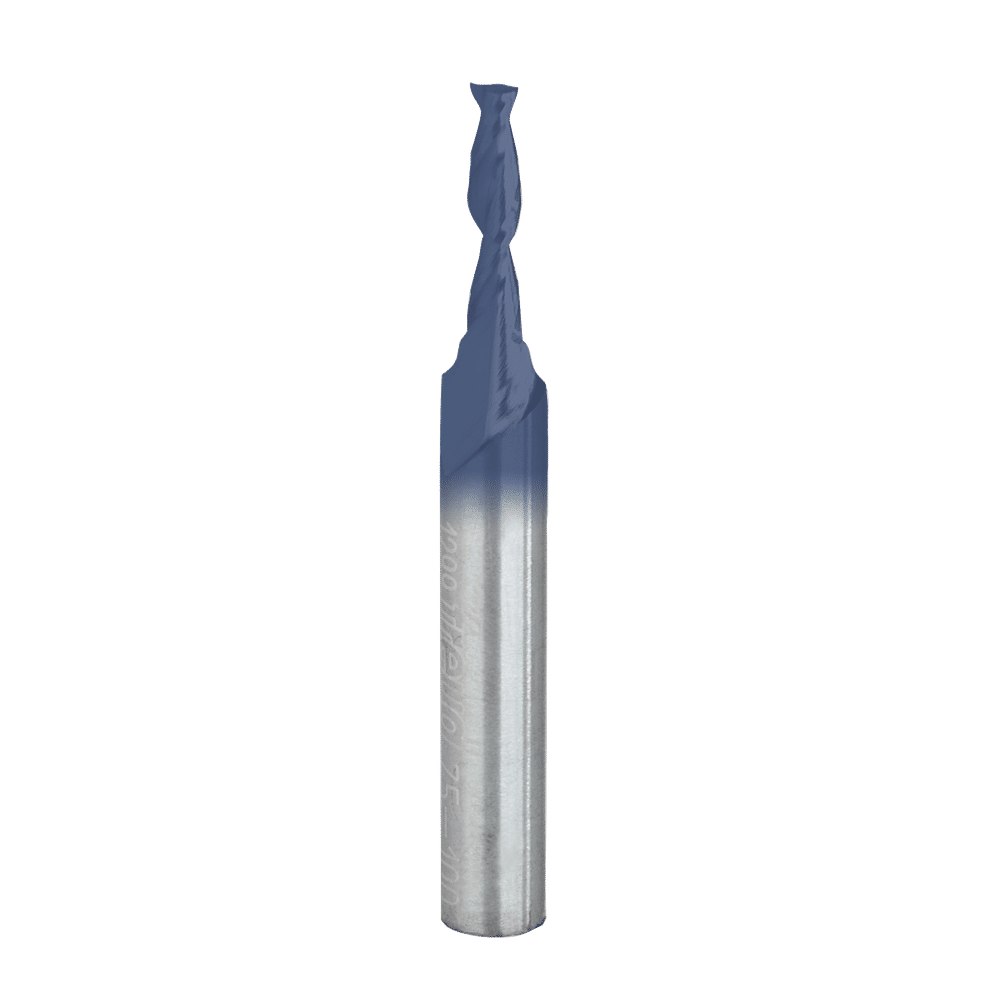

Solid carbide up spiral bits combine effective chip removal with a cut quality that can’t be matched by standard straight bits. Ideal for through-cuts, mortises and deep blind holes in production applications. The up spiral design provides the best cut quality on the bottom surface of the material. Use these bits in CNC, hand-held or table-mounted routers.
Features:
- Cutting parts, grooves and deep holes in wood, plywood and composites
- Fast chip removal with excellent quality and long life
- Use in CNC, hand-held and table-mounted routers
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Freud Premier Solid Carbide
- Black I.C.E. + Freud TiCo Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
- Ideal For: high-volume production settings
Specifications:
- Number of Cutters: 2
- Max RPM: 24000
1/8" Up Spiral Bit:
- Carbide Height (h): 1/2"
- Overall Dia. (D): 1/8"
- Overall Length (H): 2"
- Shank Dia. (A): 1/4"
1/4" Up Spiral Bit:
- Carbide Height (h): 1"
- Overall Dia. (D): 1/4"
- Overall Length (H): 2-1/2"
- Shank Dia. (A): 1/4"
3/8" Up Spiral Bit:
- Carbide Height (h): 1-1/4"
- Overall Dia. (D): 3/8"
- Overall Length (H): 3"
- Shank Dia. (A): 1/2"
1/2" Up Spiral Bit:
- Carbide Height (h): 1-1/4"
- Overall Dia. (D): 1/2"
- Overall Length (H): 3"
- Shank Dia. (A): 1/2"
