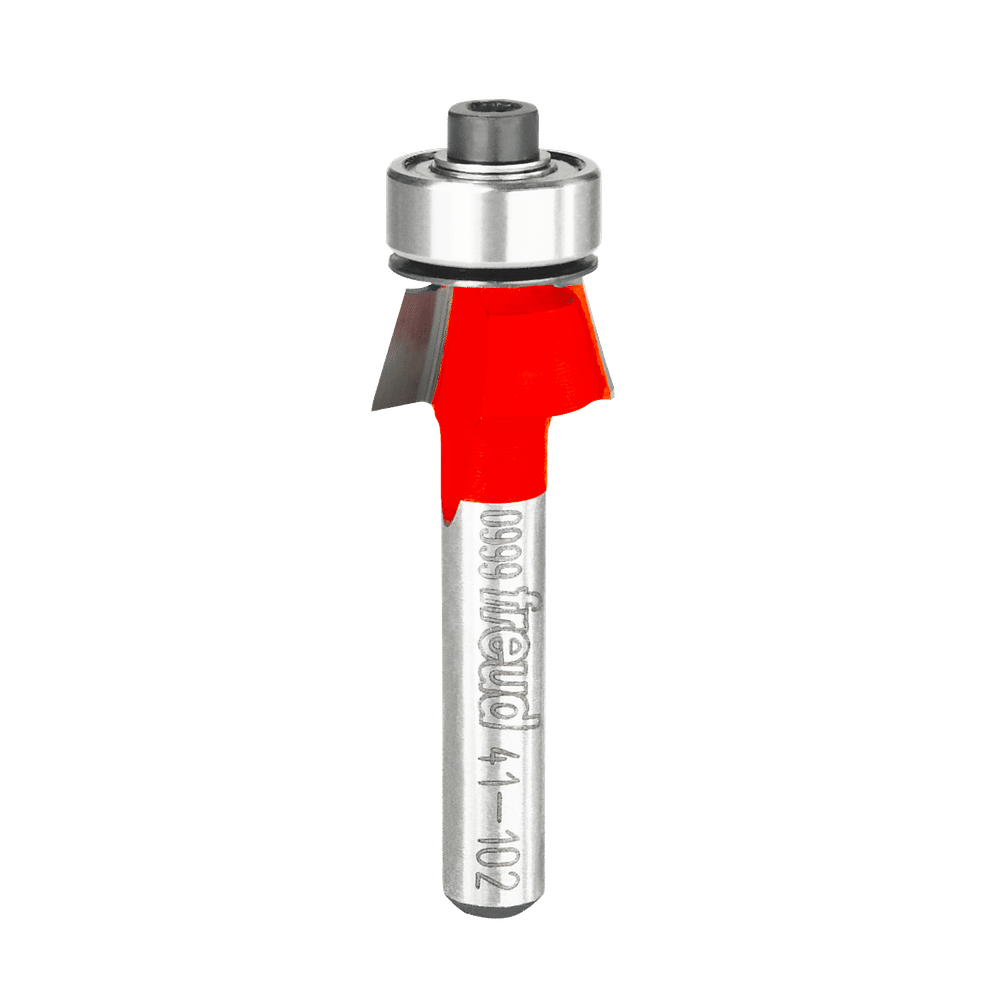

Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.
Features:
- Routing a clean, finished edge on plastic laminates
- Rout a clean, smooth edge of laminates with little of no time-consuming filing
- Cuts all plastic laminates
- 41-Series includes ball bearing guide, 66-100 is cost-effective solid carbide
- Use in hand-held or table-mounted routers and laminate trimmers
- Ideal For: Beveled edge on plastic laminates
Specifications:
- Number of Cutters: 2
- Max RPM: 24000
- Bearing Dia. (B): 1/2"
- Shank Dia. (A): 1/4"
19/32" Bevel Trim Bit:
- Angle (d): 15°
- Carbide Height (h): 9/32"
- Overall Dia. (D): 19/32"
- Overall Length (H): 1-7/8"
9/16" Bevel Trim Bit:
- Angle (d): 8°
- Carbide Height (h): 13/32"
- Overall Dia. (D): 9/16"
- Overall Length (H): 2"
