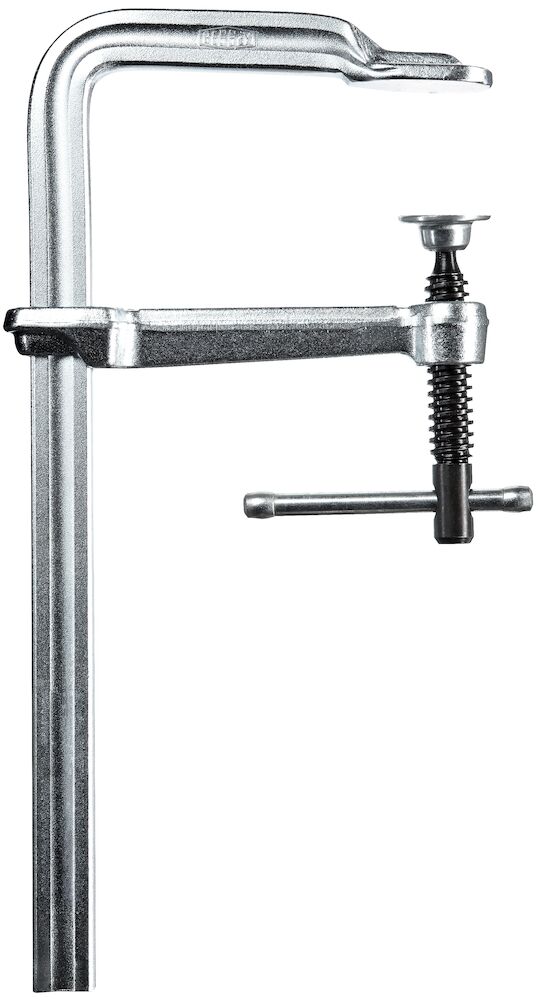

ClassiX light duty, GS series A range of sizes with a field replaceable contact standard pad.
Features:
- Clamping force up to 5,000 N
- Fixed jaw and sliding arm are constructed of tempered steel for resilient clamping
- Tommy bar with rounded ends for simple transfer of force when clamping
Specifications:
- Opening: 200mm
- Clamping Capacity: 8"
- Throat Depth: 4"
- Clamping Force: 880 lbs.
- Rail: 19.5 x 9.5mm
- Weight: 1.90 lbs.
Areas of Application:
- Interior fittings
- Metal construction
- DIY
- Furniture and joinery works
- Locksmith work
- For clamping resiliently, elastically and powerfully
Safety Instructions:
- Clamping tools are not suitable for lifting, pulling or transporting.
- Clamping tools may only be clamped manually without using any auxiliary tools.
- Improper use can cause personal injuries or material damage.
- Never change or modify clamping tools. Only use them in their original condition. Only use original‐spare parts if required
Material/Surface:
- Fixed and sliding bracket made of tempered steel, galvanized
- Spindle with trapezoidal thread in rolled steel, burnished
- Toggle made of steel, galvanized
- Pressure plate made of steel, cold pressed, galvanized
Care Instructions:
- Regular maintenance is necessary - only then can a secure hold be guaranteed (no slipping of the sliding bracket)
- Clean the rails with solvent
- Always keep the rail free of grease, oil or dried glue, waxes and silicone-based release agents
- Clean and oil the spindle regularly
- If the rail is shiny, roughen both narrow sides with emery cloth (100 grain)
- Clean and oil the pressure plate regularly
